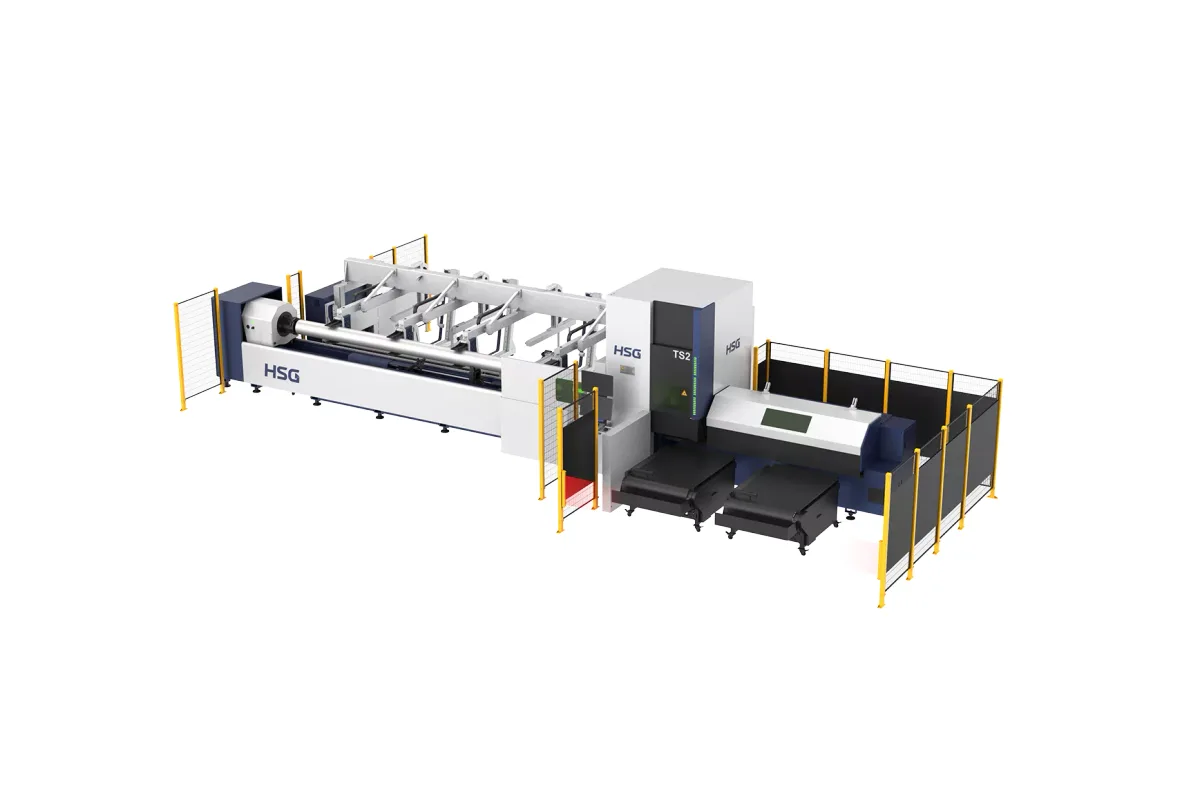

HSG TS2
Image: hsglaser.com, HSG Laser
Key Specifications
laser power
round tube capacity
square tube capacity
tube length range
unloading length
acceleration
How much does the HSG TS2 cost?
Price estimate
We do not have a price for the HSG TS2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HSG TS2 is the better-equipped of HSG's two-chuck tube lasers for medium sections. Round tube runs from Φ12 to Φ273 mm (0.5-10.7 in), which is wider than the 240 mm of the HSG R2, while square tube stops at 220 × 220 mm (8.7 × 8.7 in). Tube length is 1,000-6,500 mm (39.4-255.9 in) and a single tube may weigh 300 kg (661 lb). Laser power is 3,000-6,000 W.
On paper the motion sits between HSG's plain and PRO medium machines: 140 m/min maximum linkage speed, 1.4 G acceleration and 140 r/min chuck rotation. What the TS2 adds is equipment around the cut. Two digital chucks are standard and identify the tube size, setting air pressure and clamping force within 2 seconds, so a change of section does not mean a manual chuck adjustment. The rear chuck also draws air and dust out through the tube.
Unloading is specified, which is unusual in HSG's tables. The unloading length is 3 m or 4.5 m, and the unloading side uses one follow-up flip board and two follow-up concave wheels that adjust to the length of the part. Finished parts longer than the unloading table chosen will need a plan.
Several processes can be added. The HSG-LA4 bevel cutting head is optional, as are combined cutting, hot melt drilling and tapping, inner weld seam detection, and fully automatic loading with a loading time HSG puts at as short as 25 seconds. The bundle loader takes tube 3600-6500mm long.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 3,000-6,000 W |
| Round Tube Capacity | Φ12-Φ273 mm (0.5-10.7 in) |
| Square Tube Capacity | 12 × 12 to 220 × 220 mm (0.5 × 0.5 to 8.7 × 8.7 in) |
| Tube Length Range | 1,000-6,500 mm (39.4-255.9 in) |
| Unloading Length | 3 m / 4.5 m (9.8 ft / 14.8 ft) |
| Acceleration | 1.4 G |
| Max Single Tube Weight | 300 kg (661 lb) |
| Max Linkage Speed | 140 m/min |
| Chuck Rotation Speed | 140 r/min |
Specifications sourced from hsglaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Round tube capacity up to Φ273 mm (10.7 in) with 3,000-6,000 W of laser power
- Two digital chucks as standard that set air pressure and clamping force within 2 seconds
- 140 m/min maximum linkage speed, 1.4 G acceleration and 140 r/min chuck rotation
- Unloading length is stated: 3 m or 4.5 m, with a follow-up flip board and two concave wheels
- Optional drilling and tapping in the same setup as laser cutting
Limitations
- Square tube is limited to 220 × 220 mm (8.7 × 8.7 in), smaller than the round capacity suggests
- Tube length ends at 6,500 mm (255.9 in); the TS2-90 goes to 9,200 mm
- Bevel head, drilling and tapping, weld seam detection and automatic loading are all options
- The optional bundle loader starts at 3600mm tube, so short bars are loaded by hand
Best For
Frequently Asked Questions
01
Round tube from Φ12 to Φ273 mm (0.5-10.7 in) and square tube from 12 × 12 to 220 × 220 mm, in lengths of 1,000-6,500 mm (39.4-255.9 in) and up to 300 kg (661 lb) per tube. HSG says it also supports profiles such as channel steel, angle steel and I-beams.
02
In length. The TS2 takes tube from 1,000 to 6,500 mm and unloads over 3 m or 4.5 m. The TS2-90 takes 1,000-9,200 mm and unloads over 4.5 m or 6.5 m. Power, tube sizes, the 1.4 G acceleration and the 300 kg (661 lb) tube weight are the same.
03
Two digital intelligent chucks are standard. According to HSG they identify the tube size automatically and adjust air pressure and clamping force within 2 seconds. The rear chuck has air and dust suction, which keeps the inside of the tube cleaner.
04
With an option, yes. HSG offers integrated laser cutting, hot melt drilling and tapping so that a part is finished in one setup. The HSG-LA4 tube bevel cutting head and inner weld seam detection are separate options.
