Ermak Fibertube

Specs verified 2026-10-05 · ermaksan.com.tr Updated 2026-10-05

Image: ermaksan.com.tr, Ermak

Key Specifications

Accuracy

±0.03 mm/m

Repeatability

±0.015 mm

laser source

IPG YLS 2000

power range

10-105%

pulse frequency

5 kHz

laser wavelength

1075 ± 5 nm

How much does the Ermak Fibertube cost?

Price estimate

Uncertain

We do not have a price for the Ermak Fibertube that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

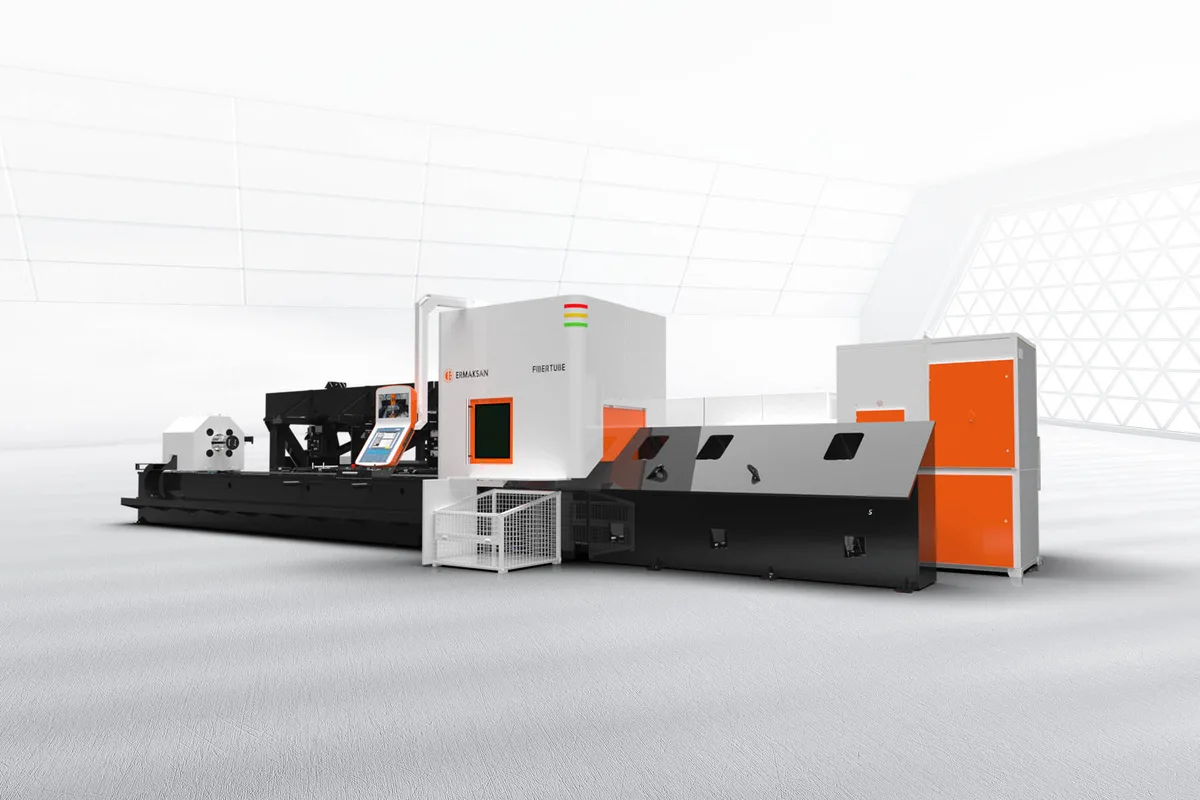

The Ermak Fibertube is a tube and profile laser with automatic loading and unloading. According to its specification table it cuts round tube from Ø20 to Ø120 mm, square profile from 20x20 to 120x120 mm and rectangular profile from 20x20 to 80x120 mm, with an IPG YLS 2000 resonator.

Material is loaded in lengths of 3,000 to 6,300 mm from a bundle loader rated for 4,000 kg (8,818 lb). Finished parts up to 4,500 mm (177.2 in) long are unloaded automatically, and the piece left in the chuck is 150 mm (5.9 in). The loading limit per metre is 20 kg/m, which rules out heavy-wall sections.

Wall thickness is where a 2,000 W class source sets the limits: 10 mm in mild steel, 4 mm in stainless steel and 3 mm in aluminium. That covers furniture tube, frames and light structural profile.

The machine has 13 axes. The chuck travels 7,110 mm in X at up to 90 m/min and 1 G, and both rotary axes accelerate at 70 rad/s². Positioning accuracy is ±0.03 mm/m.

It is a large cell at 13,480 x 4,750 x 3,120 mm and 25,000 kg (55,115 lb). The control is a Beckhoff CP6242 and the table names Lantek Flex3D as CAD/CAM software. Note that the descriptive text on Ermak's page quotes larger tube sizes than the table; this page follows the table.

Full Specifications

Parameter	Value
Laser Source	IPG YLS 2000
Power Range	10-105%
Pulse Frequency	5 kHz
Laser Wavelength	1075 ± 5 nm
Round Tube Diameter	Ø20 - Ø120 mm
Square Profile Size	20x20 - 120x120 mm
Rectangular Profile Size	20x20 - 80x120 mm
Loading Length	3,000 - 6,300 mm
Max Unloading Length	4,500 mm (177.2 in)
Max Cutting Thickness Mild Steel	10 mm
Max Cutting Thickness Stainless Steel	4 mm
Max Cutting Thickness Aluminum	3 mm
Max Loading Capacity	20 kg/m
Bundle Loader Capacity	4,000 kg (8,818 lb)
End Remnant Length	150 mm (5.9 in)
Machine Axes	13-Axes
X Axis Travel	7,110 mm (279.9 in)
Y Axis Travel	200 mm (7.9 in)
Z Axis Travel	100 mm (3.9 in)
Chuck Acceleration	70 rad/s² (A and B axes)
Acceleration	1 G (X, Y, Z)
Max Axis Speed	90 m/min (X, Y, Z)
Positioning Accuracy	±0.03 mm/m
Repeatability	±0.015 mm
Assist Gases	Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminium: dry air or nitrogen (0.5-25 bar)
Cutting Head	Precitec Procutter
CNC Control	Beckhoff CP6242
CAD CAM Software	Lantek Flex3D
Network Connection	Ethernet - Wifi
Control Panel	15 inch touch screen 1024 x 768, alphanumeric keyboard, PLC keys
Average Consumption	30 kW
Machine Dimensions	13,480 x 4,750 x 3,120 mm
Machine Weight	25,000 kg (55,115 lb)

Specifications sourced from ermaksan.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

Automatic bundle loading up to 4,000 kg (8,818 lb) and automatic unloading
Round, square and rectangular sections from 20 mm up to Ø120 mm or 120x120 mm
90 m/min axis speed with 1 G acceleration
Only 150 mm (5.9 in) of unprocessed length left at the end of a tube
Conveyor separates finished pieces from scrap

Limitations

Mild steel wall limited to 10 mm, stainless steel to 4 mm and aluminium to 3 mm
Loading capacity of 20 kg/m excludes heavy sections
Unloading stops at 4,500 mm although 6,300 mm tubes can be loaded
13,480 x 4,750 mm footprint and 25,000 kg (55,115 lb)

Best For

Furniture, frame and rack tube in volume Thin and medium wall profiles up to 120x120 mm Unattended runs from bundled stock

Frequently Asked Questions

01 What tube sizes does the Ermak Fibertube cut?

The specification table lists round tube Ø20 - Ø120 mm, square profile 20x20 - 120x120 mm and rectangular profile 20x20 - 80x120 mm. Loading lengths run from 3,000 to 6,300 mm.

02 What wall thickness can it handle?

With the IPG YLS 2000 resonator the table gives a maximum of 10 mm in mild steel, 4 mm in stainless steel and 3 mm in aluminium. Assist gases are oxygen for steel and nitrogen or dry air for the others.

03 How is material loaded and unloaded?

A packed material loader holds up to 4,000 kg (8,818 lb), and tubes of up to 20 kg/m are fed automatically. Parts up to 4,500 mm long are unloaded to one side while scrap goes to a separate compartment by conveyor.

04 Which control and software does it use?

A Beckhoff CP6242 CNC with a 15 inch touch screen, alphanumeric keyboard and PLC keys. The table names Lantek Flex3D as the CAD/CAM software, and the network connection is Ethernet and Wifi.

05 How much space does it need?

Machine dimensions are 13,480 x 4,750 x 3,120 mm and the weight is 25,000 kg (55,115 lb). Average consumption is listed as 30 kW.
