BLM Group LT14 FIBER

Q: How much does the BLM Group LT14 FIBER cost?

The price estimate for the BLM Group LT14 FIBER is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/blm-group-lt14-fiber#price; the request is passed to BLM Group or an authorised dealer.

Specs verified 2026-10-05 · blmgroup.com Updated 2026-10-05

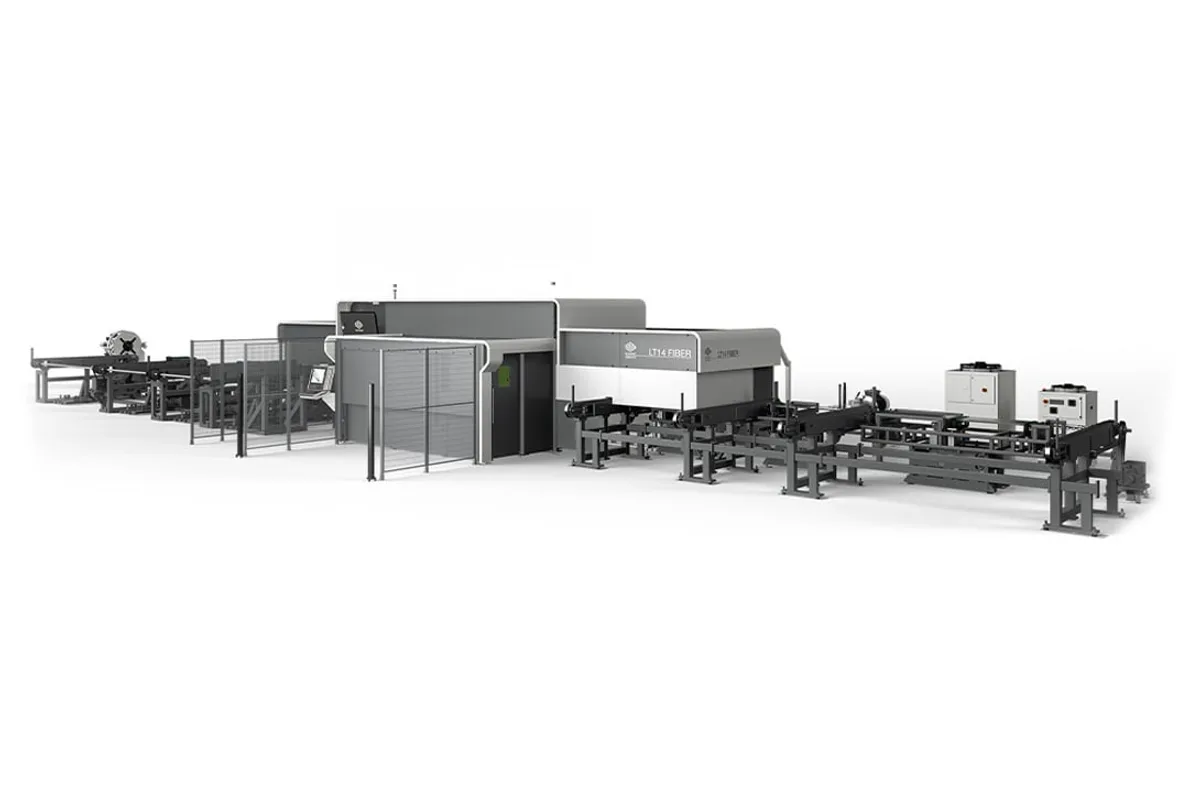

BLM Group LT14 FIBER tube laser for large profiles

Image: blmgroup.com, BLM Group

Key Specifications

laser source

5 kW, 6+6 kW (Fiber)

cutting head

Tube Cutter 3D

Front chain loader, fully automatic

min automatic loadable length

12.5 ft (3.8 m)

loading length

41 - 54 ft (12.5 - 16.5 m)

unloading

Front chain unloader, fully automatic

How much does the BLM Group LT14 FIBER cost?

Price estimate

Uncertain

We do not have a price for the BLM Group LT14 FIBER that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Three spindles hold the work on the BLM Group LT14 FIBER, a fiber tube laser for large profiles from 1" to 14" in diameter and up to 67 lbs/ft (100 kg/m). Tubes, beams and heavy profiles stay supported through every stage of machining, with the clamping matched to thickness, diameter and material.

The source row is unusual. It reads "5 kW, 6+6 kW (Fiber)", and BLM describes a multi-fiber laser source that reduces cutting times on thin materials and gives higher quality on thicker ones. The head is the Tube Cutter 3D, so weld bevels on structural sections are within its scope.

Lengths are on a structural scale as well. The front chain loader is listed at 41 - 54 ft (12.5 - 16.5 m) and does not load automatically below 12.5 ft (3.8 m). The front chain unloader comes in four lengths: 21 - 28 - 41 - 54 ft (6.4 - 8.5 - 12.5 - 16.5 m). BLM's layout drawing shows the 12.5 m / 12.5 m (41 / 41 ft) arrangement, which is a starting point for judging the building length before any space for handling material is added.

End-of-bar waste is listed as 0 ft with end bar cutting. In “zero scrap” mode the tail carriage detaches so that the end of the bar can be cut and used. On sections this heavy, that is steel a shop would otherwise buy and discard.

Next to the LT12, this machine carries more bar weight, 67 lbs/ft against 41.6 lb/ft, and offers a longer loader. Changes of diameter, thickness and section are fully automatic, with no retooling.

Full Specifications

Parameter	Value
Laser Source	5 kW, 6+6 kW (Fiber)
Cutting Head	Tube Cutter 3D
Loading	Front chain loader, fully automatic
Min Automatic Loadable Length	12.5 ft (3.8 m)
Loading Length	41 - 54 ft (12.5 - 16.5 m)
Unloading	Front chain unloader, fully automatic
Unloading Length	21 - 28 - 41 - 54 ft (6.4 - 8.5 - 12.5 - 16.5 m)
Max Bar Weight	67 lbs/ft
Machinable Materials	Mild steel, stainless steel, aluminum, copper, brass
Min Scrap with End Bar Cutting	0 ft
Layout	12.5 m / 12.5 m (41 / 41 ft)

Specifications sourced from blmgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

Three spindles support tubes, beams and heavy profiles up to 67 lbs/ft (100 kg/m) through all stages of machining
Tube ranges from 1" to 14" in diameter, with a Tube Cutter 3D head
Multi-fiber laser source: reduced cutting times on thin materials, higher quality on thicker ones
“Zero scrap” mode: the tail carriage detaches to cut the end of the bar, with minimal waste listed as 0 ft
Changes in diameter, thickness and section are fully automatic, without retooling

Limitations

Bars shorter than 12.5 ft (3.8 m) are below the minimum automatic loadable length
The smallest tube is 1" in diameter, so light tube belongs on a smaller Lasertube
Even the layout BLM draws, 12.5 m / 12.5 m (41 / 41 ft), needs a long bay
No machine weight or power consumption is given in the table

Best For

Structural tube and beams from 1" to 14" in diameter Heavy profiles up to 67 lbs/ft (100 kg/m) Long stock, with loading lengths of 41 - 54 ft (12.5 - 16.5 m) Costly sections where end-of-bar waste has to be kept to a minimum

Frequently Asked Questions

01 What sizes of tube and profile does the LT14 FIBER handle?

Tube ranges from 1" to 14" in diameter, and tubes and profiles up to 67 lbs/ft in weight, which BLM also states as 100 kg/m. Round, square and rectangular tubes, open profiles and special sections are listed, in mild steel, stainless steel, aluminum, copper and brass.

02 What laser source does the LT14 FIBER have?

The table row reads "5 kW, 6+6 kW (Fiber)". BLM describes the source as multi-fiber and says it brings reduced cutting times on thin materials and higher quality on thicker materials. The cutting head is the Tube Cutter 3D.

03 What does the “zero scrap” mode do?

The tail carriage detaches so that the end of the bar can be cut, making the most of the available material. In the technical table the corresponding row, minimal waste with end bar cutting, is given as 0 ft.

04 How long a bar can the LT14 FIBER load?

The loading length is 41 - 54 ft (12.5 - 16.5 m) and the minimum automatic loadable length is 12.5 ft (3.8 m). Unloading lengths are 21 - 28 - 41 - 54 ft (6.4 - 8.5 - 12.5 - 16.5 m). Loader and unloader are both front chain units and fully automatic.

05 How is the LT14 FIBER different from the LT12?

It is built for heavier stock. The LT12 is limited to 41.6 lb/ft; the LT14 FIBER takes 67 lbs/ft and holds the work with three spindles. Its loader is also listed in longer lengths than the 28 ft - 41 ft (8.5 m - 12.5 m) of the LT12.
