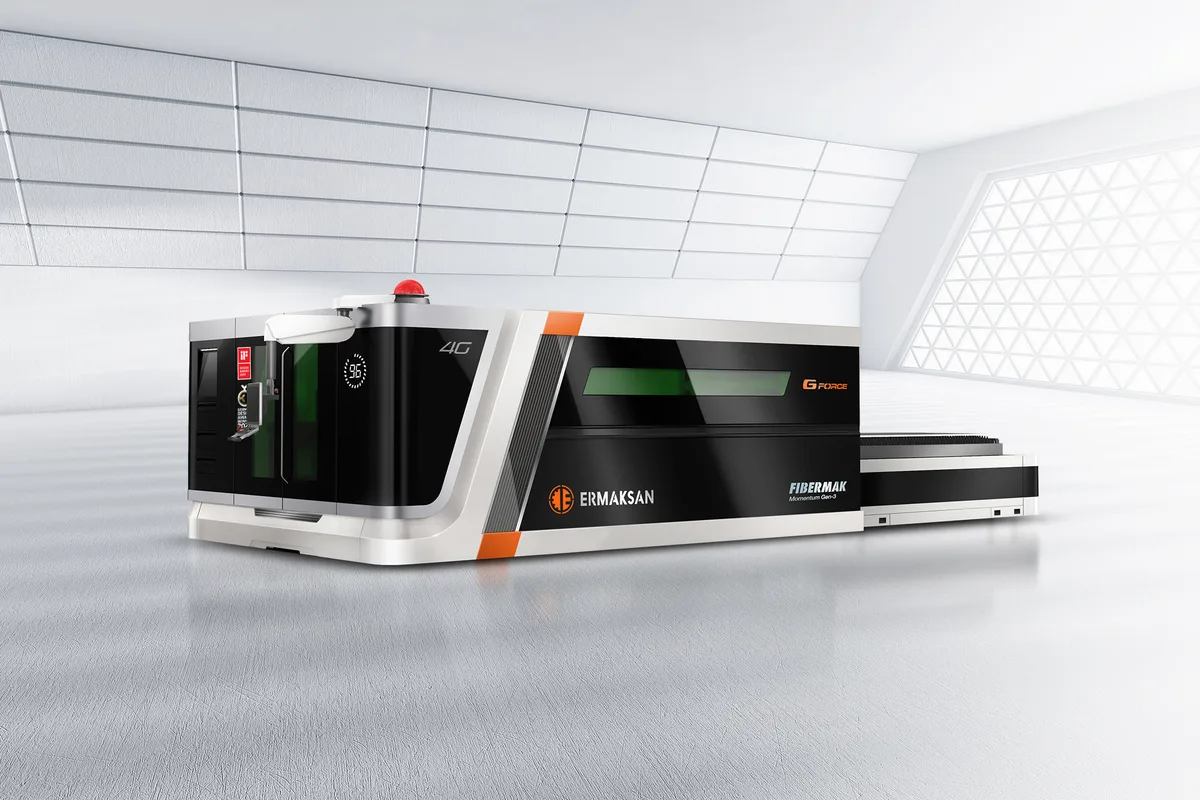

Ermak Fibermak Momentum Gen-5 SM 12x2.6
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak Momentum Gen-5 SM 12x2.6 cost?
Price estimate
We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 12x2.6 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Twelve-metre plate is a standard mill length, and the Ermak Fibermak Momentum Gen-5 SM 12x2.6 takes it whole: the working area is 12,000 x 2,600 mm (472.4 x 102.4 in), with 12,200 mm of travel in X.
A pallet may be loaded with 10,000 kg (22,046 lb). That is enough for a full-length plate in the thicknesses the plain capacity figures cover, which reach 25 mm of mild steel at 6,000 W and 8,000 W.
In motion the machine belongs to the large-format group, at 1 G with 60 m/min per axis and 85 m/min resultant. Y travel is 2,800 mm, and positioning accuracy is stated as ±0.03 mm.
The second pallet matters more here than the 150 s change time suggests. Clearing a twelve-metre skeleton and lifting off heavy parts is slow crane work, and it happens outside the machine while cutting continues inside.
Ermak gives 26,500 x 5,000 x 2,300 mm for the machine and 63,500 kg (139,991 lb) for its weight. The step up from the Fibermak Momentum Gen-5 SM 10x2.6, at 55,000 kg, is 8,500 kg for two more metres of table.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 12,000 x 2,600 mm (472.4 x 102.4 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| X Axis Travel | 12,200 mm (480.3 in) |
| Y Axis Travel | 2,800 mm (110.2 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 1 G |
| Max Axis Speed | 85 m/min resultant; 60 m/min single axis (X, Y) |
| Pallet Changer | 2 pallets (150 s) |
| Machine Dimensions | 26,500 x 5,000 x 2,300 mm |
| Machine Weight | 63,500 kg (139,991 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz (YLS 2000 to YLS 12000) |
| Power Range | 10-105% (YLS 2000 to YLS 12000) |
| Laser Wavelength | 1070 ± 5 nm (YLS 2000 to YLS 6000) |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 12,000 x 2,600 mm working area for full-length mill plate
- 10,000 kg (22,046 lb) pallet rating
- Second pallet allows unloading while the machine cuts
- Repeatability of ±0.015 mm stated for the range
- Vision Auto Remnant helps reuse part-cut plates
Limitations
- Axes limited to 60 m/min each and 85 m/min resultant
- 150 s for each pallet change
- 63,500 kg (139,991 lb) machine weight
- The table gives no plain capacity figures above 8,000 W
Best For
Frequently Asked Questions
01
Yes. The working area is 12,000 x 2,600 mm (472.4 x 102.4 in) and X travel is 12,200 mm. Each pallet is rated for 10,000 kg (22,046 lb).
02
150 s for the two-pallet shuttle. On a table this long the change is rare, and the second pallet mainly serves to unload parts and skeleton while the next plate is cut.
03
The Fibermak Momentum Gen-5 SM 10x2.6 has 8,500 kg pallets, a 130 s change and weighs 55,000 kg. This model carries 10,000 kg, changes in 150 s and weighs 63,500 kg (139,991 lb). Axis speeds and acceleration are equal.
04
26,500 x 5,000 x 2,300 mm as listed by Ermak. The control panel has a 21.5-inch screen with an alphanumeric keyboard, PLC keys and a touchscreen keyboard.
