Ermak Fibermak Momentum Gen-5 SM 18x3

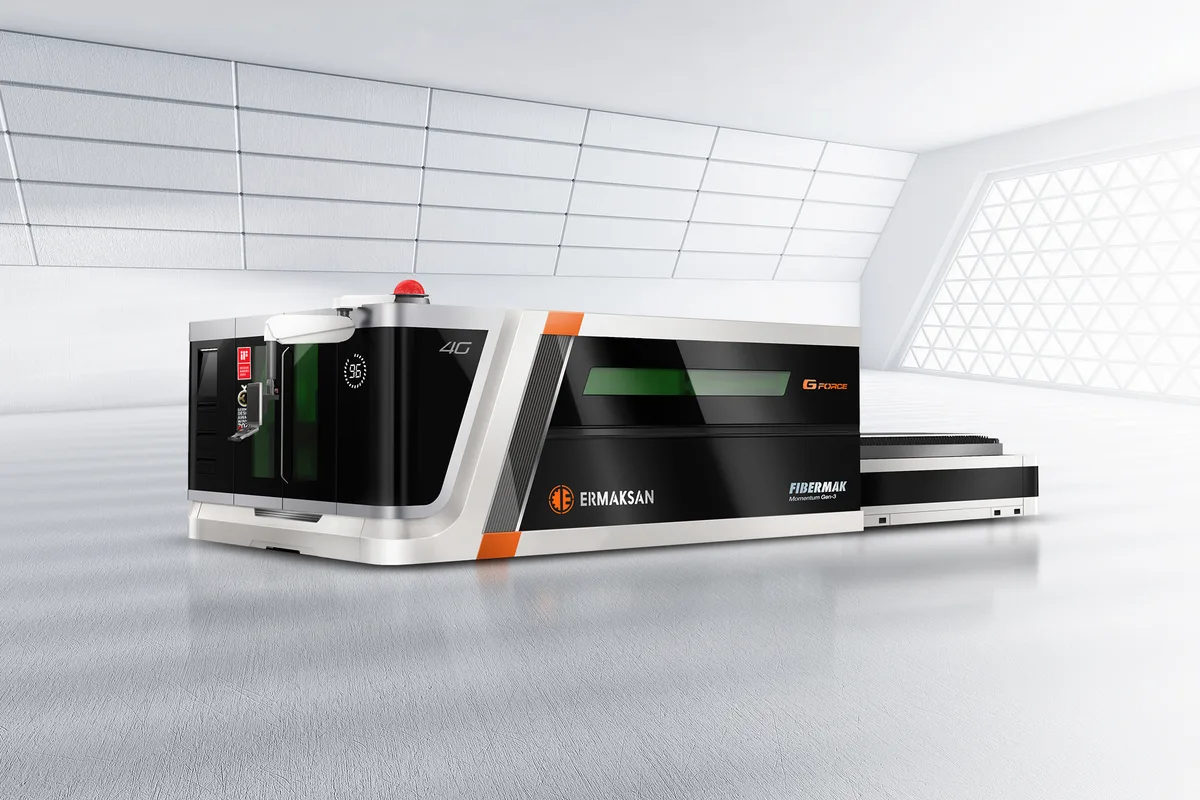

Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak Momentum Gen-5 SM 18x3 cost?
Price estimate
We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 18x3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Fibermak Momentum Gen-5 SM 18x3 is the largest flatbed laser in Ermak's table and the only one with a three-metre-wide bed: 18,000 x 3,000 mm (708.7 x 118.1 in) of working area under a bridge with 3,200 mm of Y travel.
Everything about it is scaled to match. A pallet carries 17,000 kg (37,478 lb). The machine itself weighs 93,000 kg (205,026 lb) and occupies 41,675 x 7,100 x 2,310 mm. An exchange of the two pallets takes 220 s.
Acceleration is listed at 1 G. The axis speed cell for this column cannot be read with certainty in the maker's table, so no speed is quoted here; the other large-format sizes, such as the Fibermak Momentum Gen-5 SM 16x2.6, are listed at 85 m/min resultant.
Accuracy figures do not change with size in Ermak's table: ±0.03 mm positioning and ±0.015 mm repetition are stated for this model as for the smallest.
A table this wide takes plate that would otherwise go to plasma or oxy-fuel. The optional ±45° bevel head adds weld preparation to the cut, and Vision Auto Remnant keeps track of part-used plates.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 18,000 x 3,000 mm (708.7 x 118.1 in) |
| Max Table Load | 17,000 kg (37,478 lb) |
| X Axis Travel | 18,200 mm (716.5 in) |
| Y Axis Travel | 3,200 mm (126 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 1 G |
| Pallet Changer | 2 pallets (220 s) |
| Machine Dimensions | 41,675 x 7,100 x 2,310 mm |
| Machine Weight | 93,000 kg (205,026 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz (YLS 2000 to YLS 12000) |
| Power Range | 10-105% (YLS 2000 to YLS 12000) |
| Laser Wavelength | 1070 ± 5 nm (YLS 2000 to YLS 6000) |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 18,000 x 3,000 mm, the largest working area in the range
- 17,000 kg (37,478 lb) per pallet
- 3,200 mm of Y travel for three-metre-wide plate
- ±0.015 mm repetition accuracy stated even at this size
- Two pallets with automatic exchange
Limitations
- 93,000 kg (205,026 lb) and 41,675 mm long
- 220 s pallet exchange, the longest in the table
- 1 G acceleration, the lowest class in the table
- Axis speed for this size is not clearly stated in the maker's table
Best For
Frequently Asked Questions
01
The working area is 18,000 x 3,000 mm (708.7 x 118.1 in). X travel is 18,200 mm (716.5 in), Y travel 3,200 mm (126 in) and Z travel 150 mm.
02
93,000 kg (205,026 lb), on machine dimensions of 41,675 x 7,100 x 2,310 mm. Each pallet adds up to 17,000 kg (37,478 lb) of plate.
03
Acceleration is 1 G and the pallet exchange takes 220 s. The axis speed cell for this column is not clearly readable in Ermak's table, so confirm the figure with the maker before comparing cycle times.
04
Ten power levels from 2,000 W to 30,000 W. The table's plain capacity figures stop at 8,000 W, where mild steel is listed at 25 mm with an average consumption of 34 kW.
