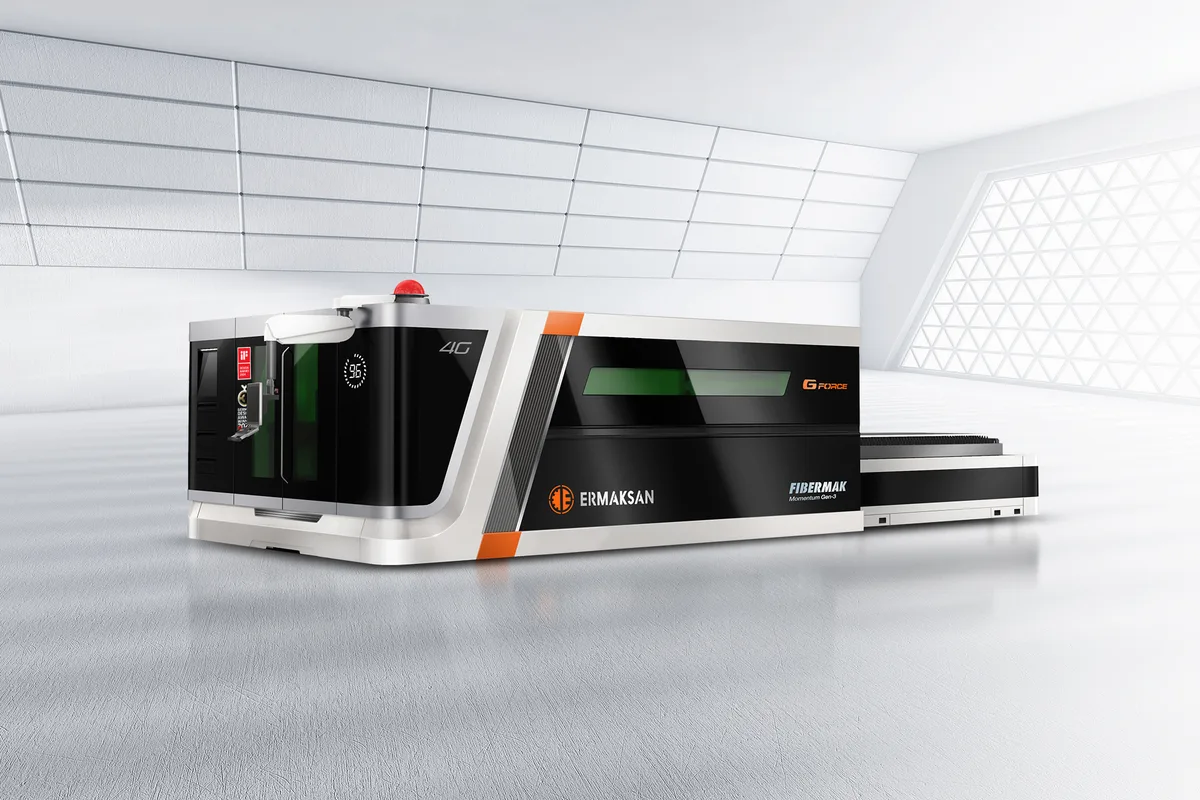

Ermak Fibermak Momentum Gen-5 SM 4x2
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak Momentum Gen-5 SM 4x2 cost?
Price estimate
We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 4x2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With a 4,000 x 2,000 mm (157.5 x 78.7 in) working area, the Ermak Fibermak Momentum Gen-5 SM 4x2 is the first size in the range that takes two-metre-wide sheet. Y travel is 2,050 mm and X travel 4,050 mm.
Wider sheet changes the nesting arithmetic. Parts too large for the three-metre format become possible, and long narrow parts can be laid across the sheet as well as along it. The pallets are rated for 2,500 kg (5,511 lb) each.
Ermak keeps the acceleration at 2.5 G on this longer bridge, and the axis speeds stay at 100 m/min single and 141 m/min combined. The pallet change takes 45 s.
Plan for 12,430 x 5,900 x 2,310 mm of floor and a weight of 18,500 kg (40,785 lb). For comparison, the side-loading Fibermak SL 4x2 handles the same sheet in 6,900 x 5,322 x 2,610 mm, though it weighs 21,000 kg (46,296 lb).
The resonator list goes up to 30,000 W. On the mid-range sources the table shows 20 mm of mild steel at 4,000 W and 25 mm at 6,000 W, with brass and copper at 6 mm and 8 mm respectively.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 4,000 x 2,000 mm (157.5 x 78.7 in) |
| Max Table Load | 2,500 kg (5,511 lb) |
| X Axis Travel | 4,050 mm (159.4 in) |
| Y Axis Travel | 2,050 mm (80.7 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 2.5 G |
| Max Axis Speed | 141 m/min combined; 100 m/min single axis (X, Y) |
| Max Axis Speed Linear Motor | 170 m/min combined; 120 m/min single axis (X, Y) |
| Pallet Changer | 2 pallets (45 s) |
| Machine Dimensions | 12,430 x 5,900 x 2,310 mm |
| Machine Weight | 18,500 kg (40,785 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz (YLS 2000 to YLS 12000) |
| Power Range | 10-105% (YLS 2000 to YLS 12000) |
| Laser Wavelength | 1070 ± 5 nm (YLS 2000 to YLS 6000) |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 x 2,000 mm working area with 2,050 mm of Y travel
- Pallets rated for 2,500 kg (5,511 lb)
- 2.5 G acceleration kept on the two-metre bridge
- Vision Auto Remnant and Auto Sheet detection are listed as standard
- Linear motor line in the table: 170 m/min combined
Limitations
- 45 s pallet change, slower than on the two smaller tables
- 12,430 mm long with the shuttle table
- Capacity cells above 8,000 W are not plain figures in the maker's table
- The pneumatic shuttle table with transfer balls is an option
Best For
Frequently Asked Questions
01
Each pallet is rated for 2,500 kg (5,511 lb). The working area is 4,000 x 2,000 mm (157.5 x 78.7 in), served by a double automatic shuttle table that changes in 45 s.
02
No. The table lists 2.5 G for this size, with 100 m/min per axis and 141 m/min combined on servo motors. The lower acceleration figures in the range begin with the eight-metre tables.
03
This machine is listed at 12,430 x 5,900 x 2,310 mm. The Fibermak SL 4x2 is listed at 6,900 x 5,322 x 2,610 mm, so the end-loading layout needs far more length for the same 4,000 x 2,000 mm sheet.
04
The table gives 25 mm for mild steel, 15 mm for stainless steel, 15 mm for aluminum and 8 mm for brass and copper, with an average consumption of 28 kW and the Precitec Procutter 2.0 head.
