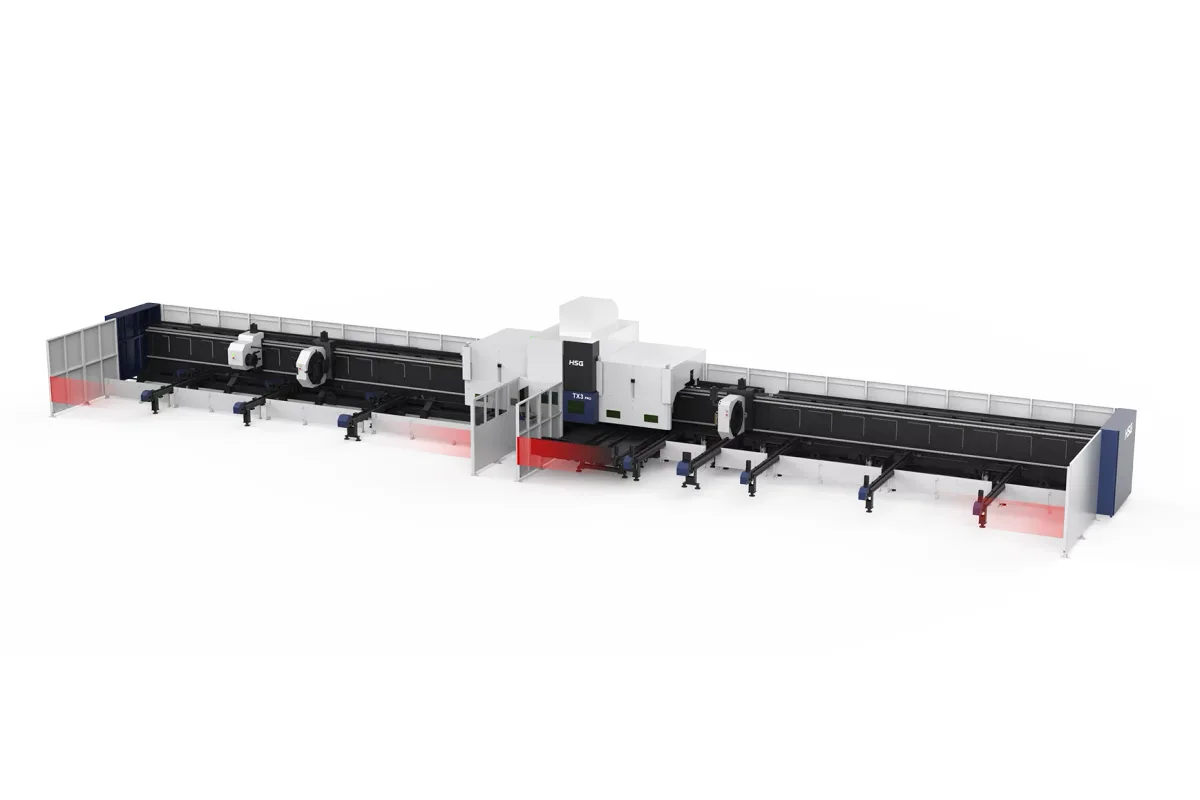

HSG TX3 PRO
Image: hsglaser.com, HSG Laser
Key Specifications
round tube capacity
square tube capacity
max single tube weight
max linkage speed
max acceleration
chuck rotation speed
How much does the HSG TX3 PRO cost?
Price estimate
We do not have a price for the HSG TX3 PRO that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Installation is the first thing the HSG TX3 PRO does differently. Its bed is an L-type, side-mounted design with a very low centre of gravity, and the follow-up supports are integrated on the outside of it, so HSG says the machine requires no pit digging. For a heavy tube laser taking pieces of 1,600 kg (3,527 lb), that removes foundation work from the project.
Capacity in the table is Φ40-Φ360 mm (1.6-14.2 in) round and 40 × 40 to 360 × 360 mm square. HSG advertises a wider processing range of Φ20–360 mm, with a condition attached: a dual-chuck must be selected and installed at the same time. In the parameter table that twin chuck is an option, as is bevel cutting.
Three full-floating chucks do the clamping, one barrel chuck and 2 through-hole chucks. Because the tube end can pass through the third chuck, long bevels and irregular profiles are held without micro-bridges, and the machine switches between small-tube, heavy-tube, zero-tail and high-efficiency modes to suit the section. Motion is listed at 100 m/min linkage speed, 80 r/min chuck rotation and 1.0 G, ahead of the TX3 at 80 m/min.
One discrepancy needs clearing up with HSG before ordering. The heading of the product page gives a different power range from the parameter table beneath it, so no laser power is stated here. Unloading is catch-type with anti-roll grooves, and the drive is a 45mm wide dual-rail transmission.
Full Specifications
| Parameter | Value |
|---|---|
| Round Tube Capacity | Φ40-Φ360 mm (1.6-14.2 in) |
| Square Tube Capacity | 40 × 40 to 360 × 360 mm (1.6 × 1.6 to 14.2 × 14.2 in) |
| Max Single Tube Weight | 1,600 kg (3,527 lb) |
| Max Linkage Speed | 100 m/min |
| Max Acceleration | 1.0 G |
| Chuck Rotation Speed | 80 r/min |
| Bevel Cutting | Optional |
| Twin Chuck | Optional |
Specifications sourced from hsglaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Side-mounted bed with integrated external follow-up support that requires no pit digging, per HSG
- 100 m/min maximum linkage speed, 1.0 G and 80 r/min chuck rotation
- Single tube weight of 1,600 kg (3,527 lb) with catch-type unloading and anti-roll grooves
- Three full-floating chucks that switch between small-tube, heavy-tube, zero-tail and high-efficiency modes
- Tube end passes through the third chuck, so long bevels are clamped without micro-bridges
Limitations
- The advertised Φ20–360 mm range requires the optional dual-chuck; the table itself starts at Φ40 mm (1.6 in)
- Bevel cutting is an option
- HSG's page shows two different power ranges for this model, so the available laser power must be confirmed
- No tube length or positioning accuracy appears in the parameter table
Best For
Frequently Asked Questions
01
HSG says it does not. The bed is an ultra-low centre-of-gravity L-type side-mounted design, and the integrated external follow-up support is described as requiring no pit digging while making inspection and maintenance easier.
02
The parameter table gives Φ40-Φ360 mm (1.6-14.2 in) round and 40 × 40 to 360 × 360 mm square, up to 1,600 kg (3,527 lb) per tube. HSG also quotes Φ20–360 mm, but notes that a dual-chuck must be selected and installed for that, and the twin chuck is optional.
03
Its table row shows 100 m/min maximum linkage speed and 1.0 G acceleration, against 80 m/min and 0.8 G for the TX3. HSG also quotes a chuck rotation speed of 80 r/min for the PRO and says efficiency is greatly improved over the previous generation.
04
That is not clear from HSG's page, which prints one power range in its heading and another in the technical parameters. Because the two do not agree, this page leaves laser power out; ask HSG which range applies to the machine being quoted.
