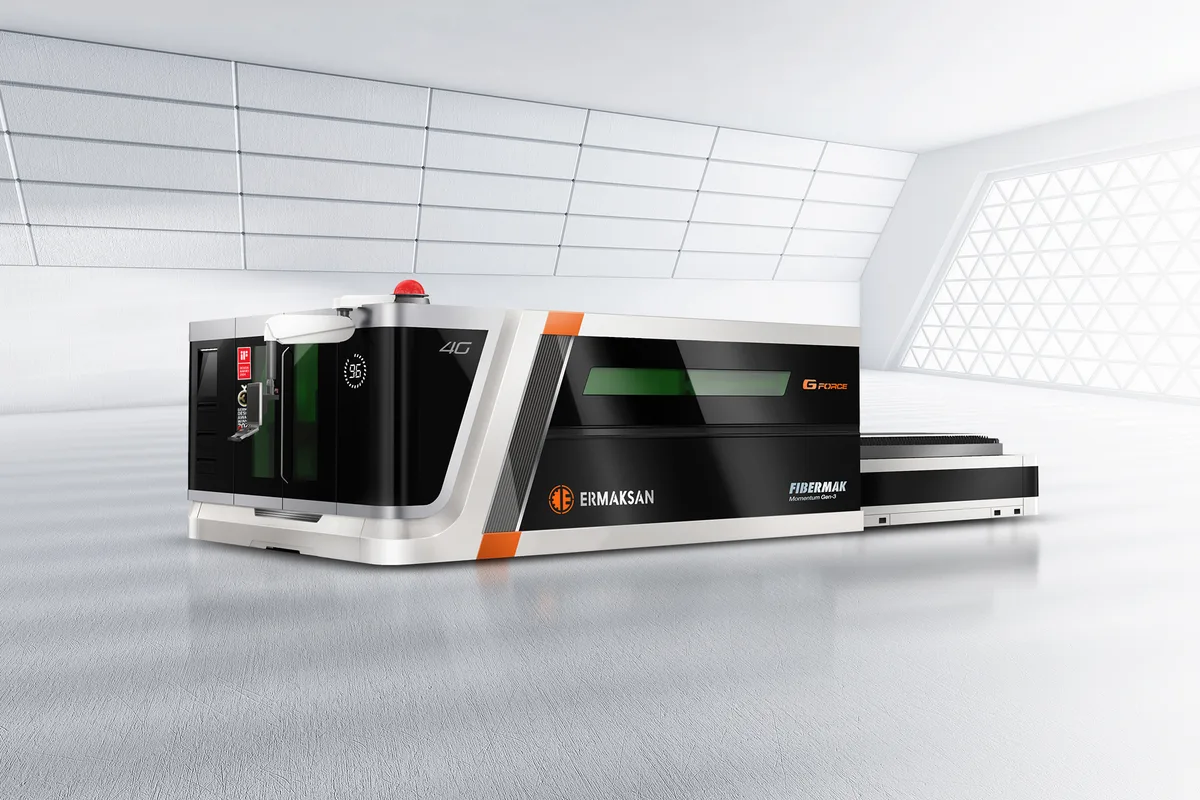

Ermak Fibermak Momentum Gen-5 SM 14x2.6
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak Momentum Gen-5 SM 14x2.6 cost?
Price estimate
We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 14x2.6 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Fibermak Momentum Gen-5 SM 14x2.6 has a 14,000 x 2,600 mm (551.2 x 102.4 in) working area, which puts it past the usual twelve-metre plate and into the territory of special-length material and multi-sheet loading.
One way to use the length is to lay several shorter plates end to end. The Auto Sheet and Auto Multisheet function, listed as standard, detects and assigns sheets with camera support, which suits that way of working. Pallet rating is 11,500 kg (25,353 lb).
The X axis travels 14,200 mm and Y 2,800 mm. Dynamics are those of the large-format group: 1 G, 60 m/min single axis, 85 m/min resultant.
A pallet change takes 180 s. Dimensions are listed as 30,500 x 5,500 x 2,200 mm. Ermak's table does not give a usable weight figure for this size, so ask the maker for it before planning transport and foundations; the neighbouring Fibermak Momentum Gen-5 SM 12x2.6 is listed at 63,500 kg.
Resonators, head and software follow the range: 2,000 W to 30,000 W, Precitec Procutter 2.0, Beckhoff CNC with Metalix and Lantek.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 14,000 x 2,600 mm (551.2 x 102.4 in) |
| Max Table Load | 11,500 kg (25,353 lb) |
| X Axis Travel | 14,200 mm (559.1 in) |
| Y Axis Travel | 2,800 mm (110.2 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 1 G |
| Max Axis Speed | 85 m/min resultant; 60 m/min single axis (X, Y) |
| Pallet Changer | 2 pallets (180 s) |
| Machine Dimensions | 30,500 x 5,500 x 2,200 mm |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz (YLS 2000 to YLS 12000) |
| Power Range | 10-105% (YLS 2000 to YLS 12000) |
| Laser Wavelength | 1070 ± 5 nm (YLS 2000 to YLS 6000) |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 14,000 x 2,600 mm working area
- 11,500 kg (25,353 lb) per pallet
- Auto Sheet and Auto Multisheet detection listed as standard
- 14,200 mm of X travel with 2,800 mm of Y travel
- Two pallets on an automatic shuttle as standard
Limitations
- 180 s for a pallet change, so it pays only on long nests
- 1 G acceleration and 85 m/min resultant speed
- 30,500 mm long installation
- The maker's table does not give a clear weight for this size
Best For
Frequently Asked Questions
01
14,000 x 2,600 mm (551.2 x 102.4 in). X travel is 14,200 mm (559.1 in), Y travel 2,800 mm (110.2 in) and Z travel 150 mm.
02
The weight cell for this size in Ermak's table is not consistent with the neighbouring sizes, so this page does not repeat it. The listed dimensions are 30,500 x 5,500 x 2,200 mm; ask Ermak for the weight.
03
The pallet takes 11,500 kg (25,353 lb) over its 14,000 mm length, and the standard Auto Sheet / Auto Multisheet function detects and assigns sheets with camera support.
04
60 m/min for a single axis and 85 m/min resultant on servo motors, at 1 G. The pallet change is listed at 180 s. No linear motor figure is printed for this size.
