Messer Cutting Systems CNC Laser Cutting Machines

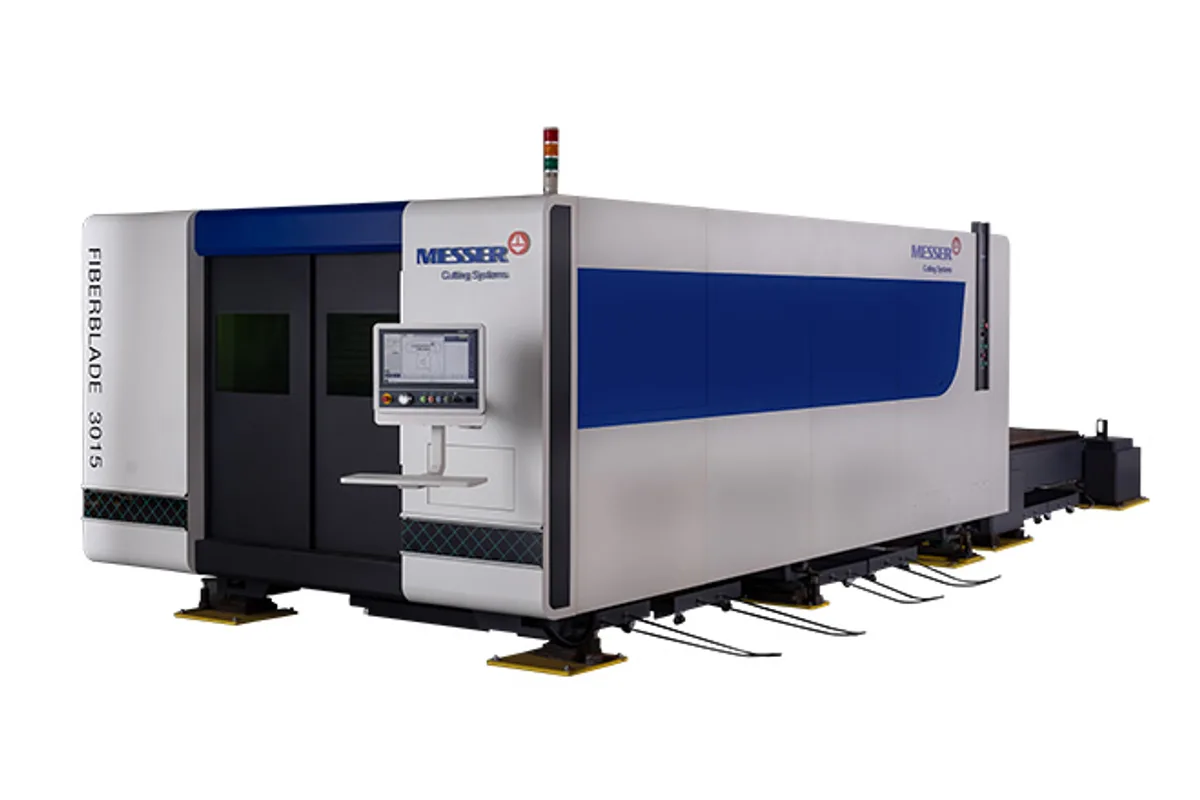

Messer FiberBlade VI

Specs verified 2026-10-05 · us.messer-cutting.com Updated 2026-10-05

Image: us.messer-cutting.com, Messer Cutting Systems

Key Specifications

Accuracy

+/- 0.03 mm (running accuracy)

Repeatability

+/- 0.01 mm (in the range of 1,830 mm)

laser power

Up to 20 kW

laser source

IPG

cutting head

Precitec

positioning speed

Maximum 7,874 ipm (200.0 m/min)

How much does the Messer FiberBlade VI cost?

Price estimate

Uncertain

We do not have a price for the Messer FiberBlade VI that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Messer FiberBlade VI is the sixth generation of the maker's enclosed fiber laser, built with an IPG laser of up to 20 kW, a Precitec cutting head and a hydraulic pallet table. It is listed as the FiberBlade VI 3015, 4020 and 6025, with a maximum positioning speed of 7,874 ipm (200.0 m/min) and a maximum acceleration of 2 G.

Against the FiberBlade V it is the higher-powered and heavier-built machine. Laser power goes to 20 kW, the largest model is a 6025 where the earlier line stops at a 6020, and the pallet changer is a back-end double layer shuttle table described as heavy duty. Running accuracy is +/- 0.03 mm and repeatability +/- 0.01 mm in the range of 1,830 mm.

What the brochure publishes in detail is the footprint, and it deserves attention. The body of the 3015 is 10.07 ft (3,070 mm) wide, but its occupation width, with the auxiliary equipment the maker draws around it, is 33.11 ft (10,092 mm) and its occupation length 41.16 ft (12,545 mm). The 6025 needs 39.76 ft (12,119 mm) by 63.98 ft (19,500 mm). Messer notes that the positions of auxiliary equipment are approximate, so treat these as planning figures. No working area, table load or cutting thickness table is printed for this generation.

The control is the Global Connect, which Messer states is its own development, with an 18.5 in color screen, piercing monitoring and corner power control. A scan cut function keeps the laser on through rows of inner contours. Nozzle calibration, automatic nozzle cleaning, dual side suction and process cameras are listed, and the LaserFLEX4.0 handling system can link several machines to several material towers.

Full Specifications

Parameter	Value
Laser Power	Up to 20 kW
Laser Source	IPG
Cutting Head	Precitec
Positioning Speed	Maximum 7,874 ipm (200.0 m/min)
Max Acceleration	2 G
Positioning Accuracy	+/- 0.03 mm (running accuracy)
Repeatability	+/- 0.01 mm (in the range of 1,830 mm)
Body Width	FiberBlade VI 3015: 10.07 ft (3,070 mm); FiberBlade VI 4020: 11.71 ft (3,570 mm); FiberBlade VI 6025: 13.43 ft (4,095 mm)
Occupation Width	FiberBlade VI 3015: 33.11 ft (10,092 mm); FiberBlade VI 4020: 36.40 ft (11,095 mm); FiberBlade VI 6025: 39.76 ft (12,119 mm)
Profile Length	FiberBlade VI 3015: 32.96 ft (10,045 mm); FiberBlade VI 4020: 39.76 ft (12,120 mm); FiberBlade VI 6025: 55.77 ft (17,000 mm)
Occupation Length	FiberBlade VI 3015: 41.16 ft (12,545 mm); FiberBlade VI 4020: 47.96 ft (14,620 mm); FiberBlade VI 6025: 63.98 ft (19,500 mm)
Pallet Table	Back-end double layer pallet shuttle table, hydraulic
Enclosure	Certified class 1 laser enclosure
CNC Control	Global Connect, Windows based, 18.5 in color screen
Standards	ISO8206 and ISO9013 compliant

Specifications sourced from us.messer-cutting.com — verified 2026-10-05

Strengths & Limitations

Strengths

IPG laser up to 20 kW with a Precitec cutting head
Maximum positioning speed of 7,874 ipm (200.0 m/min) and acceleration of 2 G
Back-end double layer hydraulic pallet shuttle table
Running accuracy of +/- 0.03 mm and repeatability of +/- 0.01 mm
Certified class 1 laser enclosure, ISO8206 and ISO9013 compliant

Limitations

Occupation area of the 3015 is 33.11 ft (10,092 mm) by 41.16 ft (12,545 mm) with auxiliary equipment
No working area, table load or cutting thickness figures are published in the brochure
Dust collection, gas mixing and booster systems are optional extras to plan for
The brochure's machine profile width column contains misprints, so widths must be confirmed

Best For

High-power fiber laser cutting up to 20 kW Production shops that need fast pallet exchange Automated laser lines with towers and several machines Nests with many inner contours, using the scan cut function

Frequently Asked Questions

01 What laser does the FiberBlade VI use?

An IPG laser with up to 20 kW, with a Precitec cutting head. The control is described as giving precise control of laser power, with piercing monitoring and corner power control. Automatic nozzle cleaning and calibration are listed.

02 What sizes is the FiberBlade VI built in?

Three: the FiberBlade VI 3015, 4020 and 6025. The brochure gives their outside dimensions, not their working areas. Body width is 10.07 ft (3,070 mm), 11.71 ft (3,570 mm) and 13.43 ft (4,095 mm), and profile length 32.96 ft (10,045 mm), 39.76 ft (12,120 mm) and 55.77 ft (17,000 mm).

03 How much floor space does the FiberBlade VI need?

With auxiliary equipment, the occupation width is 33.11 ft (10,092 mm) for the 3015, 36.40 ft (11,095 mm) for the 4020 and 39.76 ft (12,119 mm) for the 6025. Occupation length is 41.16 ft (12,545 mm), 47.96 ft (14,620 mm) and 63.98 ft (19,500 mm). Messer states these positions are approximate.

04 How fast and accurate is it?

Maximum positioning speed is 7,874 ipm (200.0 m/min) and maximum acceleration 2 G. Running accuracy is +/- 0.03 mm and repeatability accuracy +/- 0.01 mm in the range of 1,830 mm. The machine is stated to be ISO8206 and ISO9013 compliant.

05 How does the FiberBlade VI differ from the FiberBlade V?

The FiberBlade VI goes to 20 kW, lists a 2 G maximum acceleration and comes with a back-end double layer pallet shuttle table. The FiberBlade V lists power options from 2 kW to 15 kW and 1.5 g. The largest size is a 6025 on the VI and a 6020 on the V.
