Ermak Fibermak Momentum Gen-5 SM 3x1.5

Q: How much does the Ermak Fibermak Momentum Gen-5 SM 3x1.5 cost?

The price estimate for the Ermak Fibermak Momentum Gen-5 SM 3x1.5 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ermak-fibermak-momentum-gen-5-sm-3x1.5#price; the request is passed to Ermak or an authorised dealer.

Specs verified 2026-10-05 · ermaksan.com.tr Updated 2026-10-05

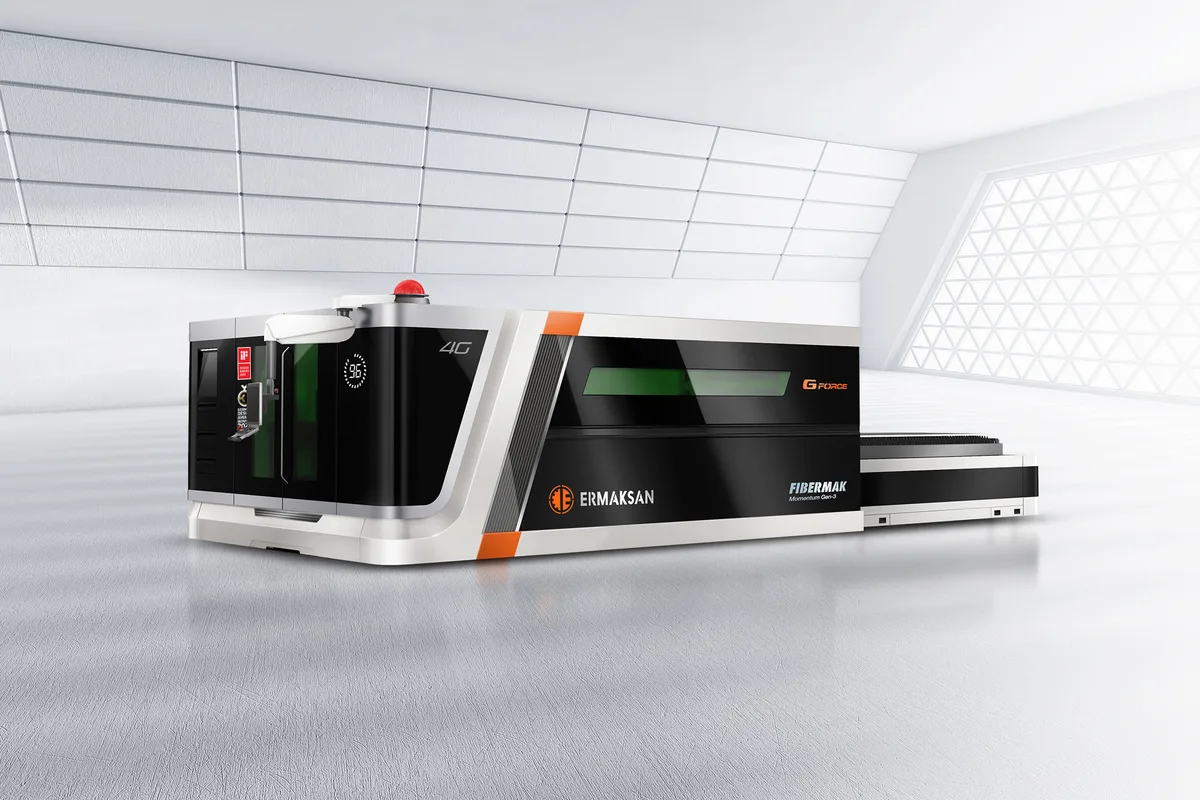

Ermak Fibermak Momentum Gen-5 series fiber laser cutting machine

Image: ermaksan.com.tr, Ermak

Key Specifications

Accuracy

±0.03 mm

Repeatability

±0.015 mm

cutting area

3,000 x 1,500 mm (118.1 x 59.1 in)

max table load

1,500 kg (3,307 lb)

x axis travel

3,050 mm (120.1 in)

y axis travel

1,550 mm (61 in)

How much does the Ermak Fibermak Momentum Gen-5 SM 3x1.5 cost?

Price estimate

Uncertain

We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 3x1.5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Three metres by one and a half is the sheet most European stockholders carry, and the Ermak Fibermak Momentum Gen-5 SM 3x1.5 is built around it: a 3,000 x 1,500 mm (118.1 x 59.1 in) working area with 3,050 mm of X travel and 1,550 mm of Y travel.

Load capacity is 1,500 kg (3,307 lb) per pallet. A full steel sheet of this format reaches that weight only in thick plate, so the limit to watch is the resonator's capacity, not the table's. With the 4,000 W source the table gives 20 mm in mild steel and 12 mm in both stainless steel and aluminum; at 8,000 W the mild steel figure is 25 mm.

Axis performance is that of the smaller model: 2.5 G, 100 m/min single axis, 141 m/min combined. What changes is the pallet change, 35 s here, and the floor space. Ermak lists 10,360 x 5,295 x 2,310 mm, and the machine weighs 14,500 kg (31,966 lb).

Standard equipment named on the maker's page includes the double automatic shuttle table, the Precitec ProCutter 2.0 head and nozzle cleaning with calibration. A 3D bevel head with 360° rotation and a ±45° bevel head are optional, as is the covered shuttle table.

Full Specifications

Parameter	Value
Cutting Area	3,000 x 1,500 mm (118.1 x 59.1 in)
Max Table Load	1,500 kg (3,307 lb)
X Axis Travel	3,050 mm (120.1 in)
Y Axis Travel	1,550 mm (61 in)
Z Axis Travel	150 mm (5.9 in)
Acceleration	2.5 G
Max Axis Speed	141 m/min combined; 100 m/min single axis (X, Y)
Max Axis Speed Linear Motor	170 m/min combined; 120 m/min single axis (X, Y)
Pallet Changer	2 pallets (35 s)
Machine Dimensions	10,360 x 5,295 x 2,310 mm
Machine Weight	14,500 kg (31,966 lb)
Machine Axes	4-Axis (X, Y, Z, U)
Positioning Accuracy	±0.03 mm
Repeatability	±0.015 mm
CNC Control	Beckhoff
CAD CAM Software	Metalix, Lantek
Network Connection	Ethernet
Control Panel	21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard
Laser Power	2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators)
Max Cutting Thickness Mild Steel	16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Stainless Steel	8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Aluminum	6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Brass	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Copper	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Average Consumption	18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000)
Cutting Head	Precitec Procutter 2.0 (YLS 2000 to YLS 6000)
Pulse Frequency	5 kHz (YLS 2000 to YLS 12000)
Power Range	10-105% (YLS 2000 to YLS 12000)
Laser Wavelength	1070 ± 5 nm (YLS 2000 to YLS 6000)
Assist Gases	Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar)

Specifications sourced from ermaksan.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

3,000 x 1,500 mm working area for the most common sheet format
1,500 kg (3,307 lb) per pallet
2.5 G and 141 m/min combined, the same dynamics as the smallest model
Double automatic shuttle table and Precitec ProCutter 2.0 head are standard
Resonator choices from 2,000 W to 30,000 W

Limitations

The footprint grows to 10,360 x 5,295 mm
35 s pallet change; the Fibermak Momentum Gen-5 SM 2.5x1.25 is listed at 30 s
Z travel of 150 mm limits work on formed or boxed parts
Automatic nesting and the Lantek Expert Cut package are optional

Best For

General subcontract cutting from 3,000 x 1,500 mm sheets Mild steel up to 25 mm with an 8,000 W source Shops that want bevel cutting as a later option

Frequently Asked Questions

01 What are the travels of the Ermak Fibermak Momentum Gen-5 SM 3x1.5?

X and U travel 3,050 mm (120.1 in), Y travels 1,550 mm (61 in) and Z 150 mm (5.9 in). The working area is 3,000 x 1,500 mm and the machine is listed as a 4-axis design.

02 How much room does the machine need?

Machine dimensions are 10,360 x 5,295 x 2,310 mm, shuttle table included, and the weight is 14,500 kg (31,966 lb). The side-loading Fibermak SL 3x1.5 is listed at 6,900 x 4,700 x 2,610 mm for the same sheet.

03 What thickness can it cut?

That depends on the resonator. The table lists 16 mm of mild steel at 2,000 W, 18 mm at 3,000 W, 20 mm at 4,000 W and 25 mm at 6,000 W and 8,000 W. Brass and copper reach 8 mm from 6,000 W.

04 Which control and software does it use?

The CNC is Beckhoff, operated from a 21.5-inch screen with an alphanumeric keyboard and PLC keys. Metalix CAD/CAM software is standard and Lantek Expert Cut is an optional package.
