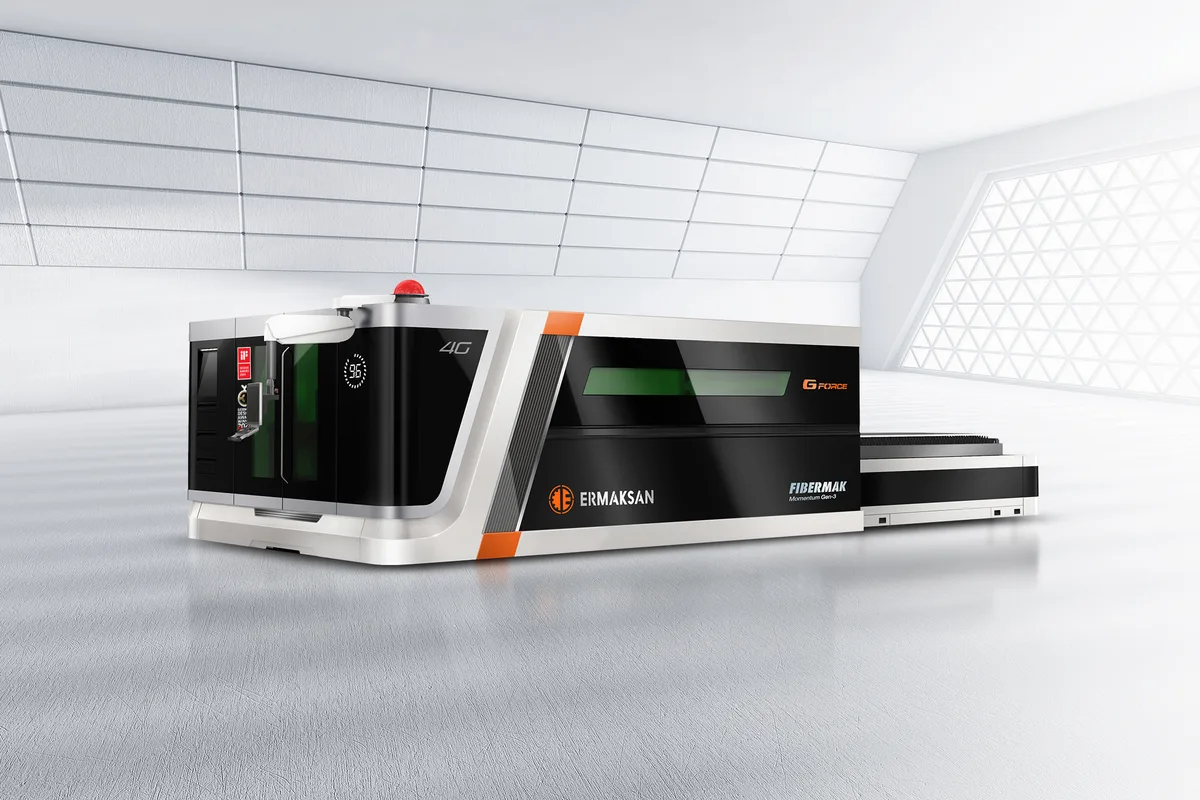

Ermak Fibermak Momentum Gen-5 SM 8x2
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
cutting area
max table load
x axis travel
y axis travel
How much does the Ermak Fibermak Momentum Gen-5 SM 8x2 cost?
Price estimate
We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 8x2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 8,000 x 2,000 mm (315.0 x 78.7 in), the Ermak Fibermak Momentum Gen-5 SM 8x2 is where Ermak's table steps the acceleration down. This size is listed at 1.5 G; the four shorter two-metre models are all at 2.5 G.
Top speed is unchanged. The servo figures remain 100 m/min per axis and 141 m/min combined, so long straight cuts and rapid moves across the 8,200 mm X travel are as quick as on any smaller machine. The difference shows in dense nests of small parts, where the head spends its time speeding up and slowing down.
The pallets take 5,500 kg (12,125 lb) each and change in 75 s.
This is a heavy installation: 35,000 kg (77,160 lb) on 21,135 x 6,020 x 2,310 mm. Foundation and unloading plans need to be settled before delivery, and the hall crane has to reach along the full length of the shuttle table.
Positioning accuracy is listed at ±0.03 mm and repeatability at ±0.015 mm, the figures given for the whole range. The control is Beckhoff with a 21.5-inch screen, and Metalix and Lantek are the software names in the table.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 8,000 x 2,000 mm (315.0 x 78.7 in) |
| Max Table Load | 5,500 kg (12,125 lb) |
| X Axis Travel | 8,200 mm (322.8 in) |
| Y Axis Travel | 2,050 mm (80.7 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Acceleration | 1.5 G |
| Max Axis Speed | 141 m/min combined; 100 m/min single axis (X, Y) |
| Max Axis Speed Linear Motor | 170 m/min combined; 120 m/min single axis (X, Y) |
| Pallet Changer | 2 pallets (75 s) |
| Machine Dimensions | 21,135 x 6,020 x 2,310 mm |
| Machine Weight | 35,000 kg (77,160 lb) |
| Machine Axes | 4-Axis (X, Y, Z, U) |
| Positioning Accuracy | ±0.03 mm |
| Repeatability | ±0.015 mm |
| CNC Control | Beckhoff |
| CAD CAM Software | Metalix, Lantek |
| Network Connection | Ethernet |
| Control Panel | 21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard |
| Laser Power | 2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators) |
| Max Cutting Thickness Mild Steel | 16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Stainless Steel | 8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Aluminum | 6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Brass | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Max Cutting Thickness Copper | 4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000) |
| Average Consumption | 18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000) |
| Cutting Head | Precitec Procutter 2.0 (YLS 2000 to YLS 6000) |
| Pulse Frequency | 5 kHz (YLS 2000 to YLS 12000) |
| Power Range | 10-105% (YLS 2000 to YLS 12000) |
| Laser Wavelength | 1070 ± 5 nm (YLS 2000 to YLS 6000) |
| Assist Gases | Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 8,000 x 2,000 mm working area on a shuttle table
- 5,500 kg (12,125 lb) per pallet
- 141 m/min combined axis speed kept at this length
- ±0.015 mm repeatability, as on the small models
- Double automatic shuttle table is standard
Limitations
- Acceleration is 1.5 G, down from 2.5 G on the shorter tables
- 35,000 kg (77,160 lb) and 21,135 mm long
- 75 s pallet change on the long shuttle table
- The covered shuttle table is an option
Best For
Frequently Asked Questions
01
The table lists 1.5 G. Axis speeds on servo motors are 100 m/min single and 141 m/min combined, and the linear motor line gives 120 m/min and 170 m/min.
02
Two pallets, each rated for 5,500 kg (12,125 lb), change in 75 s. The working area of each is 8,000 x 2,000 mm (315.0 x 78.7 in).
03
Machine dimensions are 21,135 x 6,020 x 2,310 mm and the weight is 35,000 kg (77,160 lb). X travel is 8,200 mm and Y travel 2,050 mm.
04
25 mm, with 15 mm for stainless steel and aluminum and 8 mm for brass and copper. Average consumption with that resonator is given as 34 kW.
