Ermak Fibermak SL 2.5x1.25

Q: How much does the Ermak Fibermak SL 2.5x1.25 cost?

The price estimate for the Ermak Fibermak SL 2.5x1.25 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ermak-fibermak-sl-2.5x1.25#price; the request is passed to Ermak or an authorised dealer.

Specs verified 2026-10-05 · ermaksan.com.tr Updated 2026-10-05

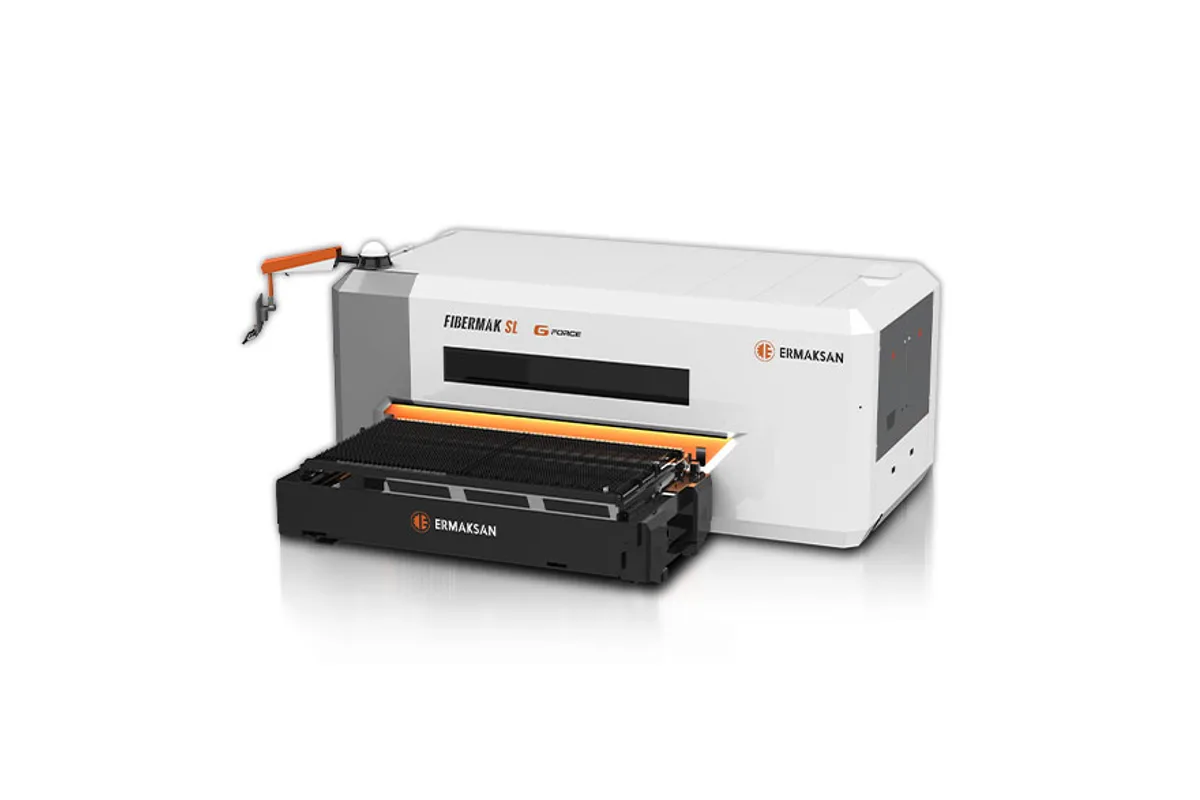

Ermak Fibermak SL series side loading fiber laser

Image: ermaksan.com.tr, Ermak

Key Specifications

Accuracy

±0.03 mm/m

Repeatability

±0.015 mm

cutting area

2,500 x 1,250 mm (98.4 x 49.2 in)

max table load

1,000 kg (2,205 lb)

x axis travel

2,550 mm (100.4 in)

y axis travel

1,270 mm (50 in)

How much does the Ermak Fibermak SL 2.5x1.25 cost?

Price estimate

Uncertain

We do not have a price for the Ermak Fibermak SL 2.5x1.25 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Ermak Fibermak SL 2.5x1.25 is the smallest of Ermak's side loading fiber lasers. Its cutting area is 2,500 x 1,250 mm (98.4 x 49.2 in), and the pallets leave the machine from the side instead of the end, which is what the SL in the name stands for.

Side loading shortens the installation. This model measures 5,200 x 4,200 x 2,610 mm, so the long axis of the cell is barely twice the sheet length. Ermak describes the Fibermak SL as designed for workshops with space limitations.

Nothing is given up in dynamics. Acceleration is 2.5 G, single-axis speed is 100 m/min and the combined speed 141 m/min. On thin sheet with many short moves, acceleration counts for more than top speed, and the small gantry of this size makes full use of it. Positioning accuracy is ±0.03 mm/m and repeatability ±0.015 mm.

Two pallets change in 20 s, the quickest change in the SL table, and each carries 1,000 kg (2,205 lb). Z travel is 150 mm.

The control is Beckhoff, the standard head a Precitec Procutter 2.0, and resonators are listed from 2,000 W to 30,000 W. With the 2,000 W source the table gives 16 mm for mild steel and 8 mm for stainless steel. The machine weighs 11,000 kg (24,250 lb).

Full Specifications

Parameter	Value
Cutting Area	2,500 x 1,250 mm (98.4 x 49.2 in)
Max Table Load	1,000 kg (2,205 lb)
X Axis Travel	2,550 mm (100.4 in)
Y Axis Travel	1,270 mm (50 in)
Z Axis Travel	150 mm (5.9 in)
Acceleration	2.5 G
Max Axis Speed	141 m/min combined; 100 m/min single axis (X, Y)
Pallet Changer	2 pallets (20 s)
Machine Dimensions	5,200 x 4,200 x 2,610 mm
Machine Weight	11,000 kg (24,250 lb)
Machine Axes	4-Axis (X, Y, Z, U)
Positioning Accuracy	±0.03 mm/m
Repeatability	±0.015 mm
CNC Control	Beckhoff
CAD CAM Software	Metalix, Lantek
Network Connection	Ethernet
Control Panel	21.5 in 1920 x 1080 display, alphanumeric keyboard, PLC keys, two touchscreens
Laser Power	2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators)
Max Cutting Thickness Mild Steel	16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Stainless Steel	8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Aluminum	6, 8, 10, 12, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Brass	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Copper	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Average Consumption	18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000)
Cutting Head	Precitec Procutter 2.0 (YLS 2000 to YLS 6000)
Pulse Frequency	5 kHz
Power Range	10-105%
Laser Wavelength	1070 ± 5 nm
Assist Gases	Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar)

Specifications sourced from ermaksan.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

Shortest installation of the series at 5,200 x 4,200 mm
2.5 G acceleration with a 141 m/min combined axis speed
20 s pallet change, the fastest in the SL table
Repeatability of ±0.015 mm
Beckhoff control and Precitec Procutter 2.0 head as standard

Limitations

Cutting area stops at 2,500 x 1,250 mm
Pallet load limited to 1,000 kg (2,205 lb)
Z travel of 150 mm leaves little room for formed parts
Automatic nozzle changer and anti-collision system are options

Best For

Workshops that cannot fit an end-loading laser Thin-sheet parts from 2,500 x 1,250 mm stock Short runs with frequent pallet changes

Frequently Asked Questions

01 What does side loading mean on the Ermak Fibermak SL 2.5x1.25?

The shuttle pallets move out to the side of the machine instead of its end. Ermak designed the SL for workshops with space limitations; this size occupies 5,200 x 4,200 mm of floor.

02 How fast is it?

Acceleration is 2.5 G. The axes reach 100 m/min individually and 141 m/min combined, and the two pallets change in 20 s.

03 What can it cut with a low-power source?

With the 2,000 W resonator the table lists 16 mm mild steel, 8 mm stainless steel, 6 mm aluminum and 4 mm brass or copper. At 4,000 W those rise to 20 mm, 12 mm, 10 mm and 6 mm.

04 What are the axis travels?

X travel is 2,550 mm, Y travel 1,270 mm and Z travel 150 mm, for a cutting area of 2,500 x 1,250 mm. The machine has four axes: X, Y, Z and U.
