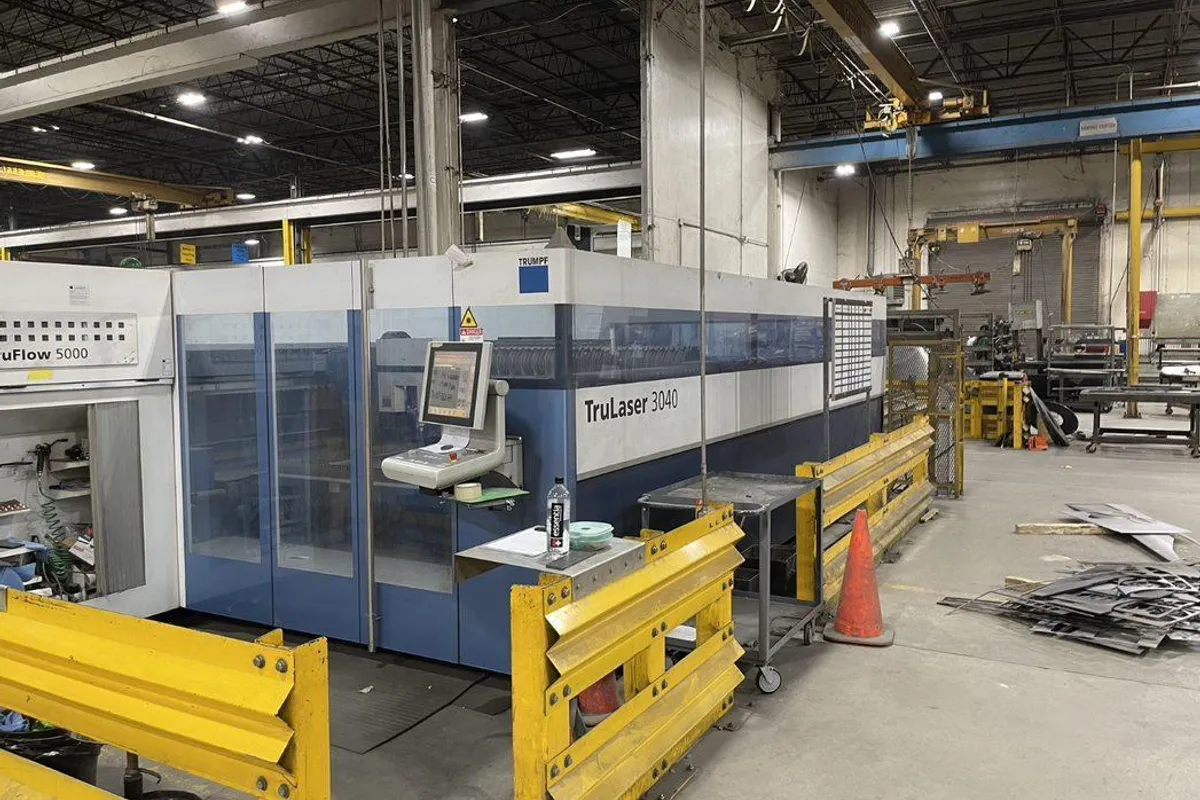

Trumpf TruLaser 3040

Est. $350,000 - $500,000 (new, 6 kW config) Updated 2026-10-03

Key Specifications

working area

4,000 x 2,000 mm (157.5 x 78.7 in)

laser type

TruDisk fiber (solid-state disk laser)

laser power options

3 kW / 4 kW / 6 kW / 8 kW / 10 kW

max thickness mild steel 6kw

25 mm (1.0 in)

max thickness stainless steel 6kw

25 mm (1.0 in)

max thickness aluminum 6kw

25 mm (1.0 in)

How much does the Trumpf TruLaser 3040 cost?

Estimated price range

Est.$350,000 - $500,000 (new, 6 kW config)

Our best estimate for a cnc laser cutting machine in this class — not a quote from Trumpf. Configuration moves it a long way.

Overview

The Trumpf TruLaser 3040 is a flatbed laser cutting machine with a 4,000 x 2,000 mm (157.5 x 78.7 in) working area and a solid-state laser listed in five power options: 3 kW / 4 kW / 6 kW / 8 kW / 10 kW. Simultaneous axis speed is 170 m/min (6,693 ipm).

Thickness figures are listed for two of the five powers. At 6 kW the table gives 25 mm (1.0 in) for mild steel, stainless steel and aluminum alike, and 10 mm (0.39 in) for copper and brass. At 10 kW stainless steel rises to 30 mm (1.18 in), copper to 15 mm (0.59 in) and brass to 12 mm (0.47 in). Nothing is listed for the 3 kW, 4 kW or 8 kW sources, and there is no 10 kW figure for mild steel or aluminum, so those gaps need a direct answer for the machine in front of you.

The bed is rated for a 2,000 kg (4,409 lb) workpiece, or 3,300 kg (7,275 lb) in the heavy-duty version. Find out which version a given machine is before planning full-size plate at the thick end of the range.

Average power consumption is listed at 15 kW for the 6 kW source and 25 kW for the 10 kW source, which is the pair of figures to give your electrician. The machine stands 2,280 mm (89.8 in) high and weighs 9,700 kg (21,385 lb). The control is listed as Trumpf proprietary with a touchscreen HMI.

Full Specifications

Parameter	Value
Working Area	4,000 x 2,000 mm (157.5 x 78.7 in)
Laser Type	TruDisk fiber (solid-state disk laser)
Laser Power Options	3 kW / 4 kW / 6 kW / 8 kW / 10 kW
Max Thickness Mild Steel 6kw	25 mm (1.0 in)
Max Thickness Stainless Steel 6kw	25 mm (1.0 in)
Max Thickness Aluminum 6kw	25 mm (1.0 in)
Max Thickness Copper 6kw	10 mm (0.39 in)
Max Thickness Brass 6kw	10 mm (0.39 in)
Max Thickness Stainless Steel 10kw	30 mm (1.18 in)
Max Thickness Copper 10kw	15 mm (0.59 in)
Max Thickness Brass 10kw	12 mm (0.47 in)
Simultaneous Speed	170 m/min (6,693 ipm)
Machine Height	2,280 mm (89.8 in)
Machine Weight	9,700 kg (21,385 lb)
Avg Power Consumption 6kw	15 kW
Avg Power Consumption 10kw	25 kW
CNC Control	Trumpf proprietary (touchscreen HMI)
Max Workpiece Weight	2,000 kg (4,409 lb)
Max Workpiece Weight Heavy Duty	3,300 kg (7,275 lb)

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

4,000 x 2,000 mm (157.5 x 78.7 in) working area with 170 m/min (6,693 ipm) simultaneous axis speed
Five listed laser powers from 3 kW to 10 kW
25 mm (1.0 in) in mild steel, stainless steel and aluminum at 6 kW, and 30 mm (1.18 in) in stainless steel at 10 kW
Copper to 15 mm (0.59 in) and brass to 12 mm (0.47 in) at 10 kW
Heavy-duty version carries a 3,300 kg (7,275 lb) workpiece

Limitations

No thickness figures are listed for the 3 kW, 4 kW or 8 kW sources
Average power consumption rises from 15 kW with the 6 kW source to 25 kW with the 10 kW source
Standard workpiece weight is 2,000 kg (4,409 lb); the 3,300 kg (7,275 lb) rating applies only to the heavy-duty version
The listed figures include no positioning accuracy or repeatability

Best For

Sheet and plate up to 4,000 x 2,000 mm (157.5 x 78.7 in) Mild steel, stainless steel and aluminum up to 25 mm (1.0 in) with the 6 kW source Copper up to 15 mm (0.59 in) with the 10 kW source Heavy plate up to 3,300 kg (7,275 lb) on the heavy-duty version

Frequently Asked Questions

01 What laser powers is the TruLaser 3040 listed with?

Five: 3 kW / 4 kW / 6 kW / 8 kW / 10 kW. The laser type is given as a solid-state disk laser. Thickness figures are listed only for the 6 kW and 10 kW sources, so check which power a particular machine has.

02 How thick can the TruLaser 3040 cut?

At 6 kW the listed figures are 25 mm (1.0 in) in mild steel, stainless steel and aluminum, and 10 mm (0.39 in) in copper and brass. At 10 kW they are 30 mm (1.18 in) in stainless steel, 15 mm (0.59 in) in copper and 12 mm (0.47 in) in brass.

03 How heavy a sheet can the machine take?

The maximum workpiece weight is 2,000 kg (4,409 lb) as standard and 3,300 kg (7,275 lb) in the heavy-duty version. The working area is 4,000 x 2,000 mm (157.5 x 78.7 in).

04 How much power does it consume?

Average power consumption is listed at 15 kW for the 6 kW source and 25 kW for the 10 kW source. No figure is given for the other three laser powers. The machine weighs 9,700 kg (21,385 lb) and is 2,280 mm (89.8 in) high.
