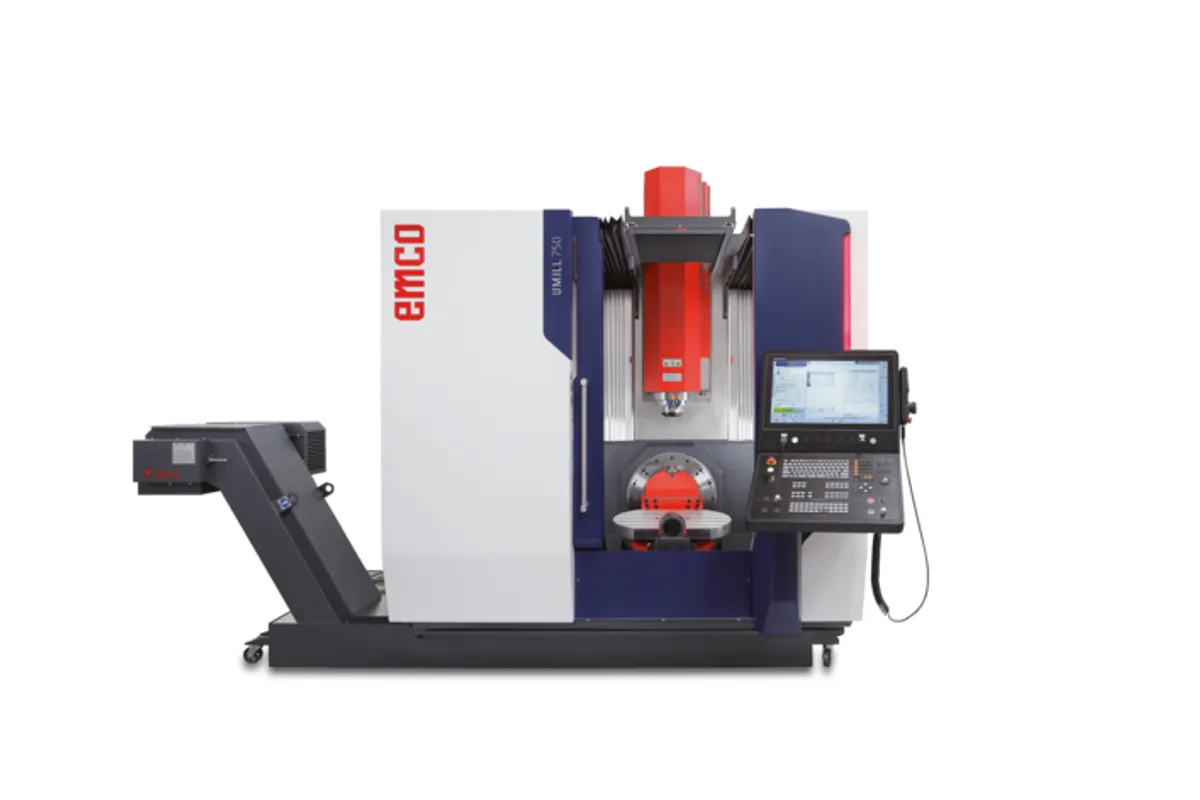

Emco UMILL 750
Image: emco-world.com, Emco
Key Specifications
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
z axis travel
How much does the Emco UMILL 750 cost?
Price estimate
We do not have a price for the Emco UMILL 750 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 750 mm (29.5 in) of X travel and a 750x600 mm swivel-rotary table, the Emco UMILL 750 is the mid-size machine in Emco's simultaneous 5-axis range. It keeps the moving-column layout of the smaller UMILL 630 and scales up the table, the load and the magazine.
Table load is 400 kg (882 lb). The table is carried on torque motors with direct measuring systems and a front support, and it swivels +/- 100°. That swivel range allows undercuts and the far side of a part to be reached without re-clamping, as long as the part and fixture clear the 150/650 mm between spindle nose and table.
The base tool changer has 40 stations here, with 60 or 90 optional. Y travel is 610 mm (24.0 in) and Z 500 mm (19.7 in). The motor spindle is offered as 50-15000 / 24000 rpm with 26 / 46 kW and 110 Nm (81.1 lb-ft); choose the faster one for small tools in aluminium or graphite and the slower one for general work.
At 9,000 kg (19,841 lb) the machine is noticeably heavier than the smaller model for a modest gain in footprint, 2,850 x 3,680 x 3,060 mm (112.2 x 144.9 x 120.5 in). Linear scales in X, Y and Z are standard. Emco offers Siemens or Heidenhain controls, and EMCONNECT is available on the Sinumerik ONE.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 750 mm (29.5 in) |
| Y Axis Travel | 610 mm (24.0 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| Distance Spindle Nose to Table | 150/650 mm |
| Rapid Traverse Xyz | 50/50/50 m/min |
| Feed Force Xyz | 5000/5000/5000 N |
| Table Size | 750x600 mm |
| Max Table Load | 400 kg (882 lb) |
| Spindle Speed Range | 50-15000 / 24000 rpm |
| Spindle Motor Power | 26 / 46 kW |
| Spindle Torque | 110 Nm (81.1 lb-ft) |
| Tool Capacity | 40 (60/90) |
| Machine Dimensions | 2,850 x 3,680 x 3,060 mm (112.2 x 144.9 x 120.5 in) |
| Machine Weight | 9,000 kg (19,841 lb) |
Specifications sourced from emco-world.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 750x600 mm torque-motor table with a +/- 100° swivelling range
- 400 kg (882 lb) table load
- 40-station tool changer, 60 or 90 optional
- Rapids of 50/50/50 m/min in X/Y/Z
- Motor spindle up to 24000 rpm
Limitations
- Maximum spindle torque of 110 Nm (81.1 lb-ft) limits heavy roughing in steel
- Z travel is 500 mm (19.7 in), the same order as the smaller UMILL 630
- Weighs 9,000 kg (19,841 lb), so check the floor before installation
- The larger magazines are optional
Best For
Frequently Asked Questions
01
X travel is 750 mm (29.5 in), Y 610 mm (24.0 in) and Z 500 mm (19.7 in), with 150/650 mm from spindle nose to table. Feed force is 5000/5000/5000 N in X, Y and Z.
02
The maximum table load is 400 kg (882 lb) on a table of 750x600 mm. The table is driven by torque motors, has direct measuring systems and a front support, and swivels +/- 100°.
03
A motor spindle listed as 50-15000 / 24000 rpm, with drive power of 26 / 46 kW and torque of 110 Nm (81.1 lb-ft).
04
The UMILL 1000 is a gantry-structure machine with 1,000 mm (39.4 in) of Y travel, a 1,000 kg (2,205 lb) table load and a weight of 18,000 kg (39,683 lb). The UMILL 750 is the moving-column machine at 9,000 kg (19,841 lb) with a 400 kg (882 lb) table load.
