Makino V90S
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Makino V90S is a large-format 5-axis vertical machining center engineered specifically for die and mold work on large, complex workpieces where simultaneous 5-axis motion is required for undercuts, deep cavities, and complex contoured surfaces. It represents Makino's most capable 5-axis platform for the mold and die market.
The machine uses a trunnion-style 5-axis configuration with a tilting rotary table (B-axis tilt +/-30 degrees, C-axis full 360-degree rotation). Linear travel is 900 x 1,200 x 600 mm (35.4 x 47.2 x 23.6 in). Table capacity reaches 2,000 kg (4,409 lb), accommodating large mold assemblies and heavy die blocks.
The 20,000 RPM HSK-A63 spindle delivers 22 kW (29.5 hp) and 47 Nm, tuned for high-speed finishing in hardened tool steels across complex 5-axis surfaces. Linear scale feedback on all linear axes delivers +/-0.003 mm positioning accuracy in 5-axis mode. Rapid traverse reaches 36 m/min (1,417 ipm) on linear axes, appropriate for the longer positioning moves in large-format 5-axis programs.
The 60-tool ATC supports complete 5-axis mold programs. Makino's Pro 6 control with SGI.5 provides 5-axis contouring intelligence that maintains surface quality across 5-axis simultaneous interpolation. The V90S competes with the DMG Mori DMU 200 P and Hermle C 42 U in the large 5-axis precision VMC segment.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 900 mm (35.4 in) |
| Y-Axis Travel | 1,200 mm (47.2 in) |
| Z-Axis Travel | 600 mm (23.6 in) |
| B Axis Tilt | +/- 30 degrees |
| C Axis Rotation | 360 degrees (full) |
| Max Spindle Speed | 20,000 RPM |
| Spindle Taper | HSK-A63 |
| Spindle Motor Power | 22/15 kW (29.5/20 hp) |
| Spindle Torque | 47/28 Nm |
| Tool Capacity | 40 (120 opt) |
| Tool Change Time | 2.0 sec (tool-to-tool) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 8 kg (17.6 lb) |
| Table Diameter | 900 mm (35.4 in) rotary table |
| Table Load Capacity | 2,000 kg (4,409 lb) |
| Rapid Traverse Xyz | 36 m/min (1,417 ipm) |
| Rapid Traverse Bc | 25 rpm (B), 50 rpm (C) |
| Positioning Accuracy | +/- 0.003 mm (0.00012 in) |
| Repeatability | +/- 0.002 mm (0.00008 in) |
| Scale Feedback | 0.05 micron resolution on linear axes |
| Machine Weight | 18,000 kg (39,683 lb) |
| CNC Control | Makino Professional 6 (Pro 6) |
| Eventscontent Librarywebinar Archiveownersmakino Expertisesafety Data Sheetsnewsroomfinancing | Financing OptionsMakino makes it easy to upgrade with flexible financing optionsLearn More |
| Metric | English |
| A Axis | 60° (-30° to +30°) |
| C Axis | 120° (-60° to +60°) |
| Spindle Rpm | 20,000 (HSK - A63) |
| Rapid Traverse Rate | 2,283 in/min |
| Cutting Feedrate | 1,575 in/min |
| Maximum Workpiece | 86.61" x 59.05" x 27.55" |
| Maximum Payload | 11,023 lbs |
| Tool To Tool | 8 sec |
| Maximum Tool Diameter | 2.76" / 3.93" |
| Maximum Tool Weight | 17.6 lbs |
| Optional Atc Capacity | Yes |
| Makinooptionalatccapacity | Yes |
Specifications sourced from makino.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Large 5-axis envelope handles mold and die workpieces that exceed the capacity of most trunnion 5-axis machines
- 36 m/min linear rapids reduce non-cutting time substantially on large-format programs
- 60-tool ATC supports complete 5-axis mold programs without tool-change interruptions
- SGI.5 contouring extended to 5-axis simultaneous interpolation maintains surface quality across complex contoured surfaces
- 2,000 kg table load handles heavy steel mold bases in 5-axis positioning without fixture complexity
- Single-setup capability eliminates re-fixturing errors on complex multi-side mold components
Limitations
- B-axis tilt limited to +/-30 degrees, less than the +/-110 degrees on universal 5-axis platforms; extreme undercut access is limited
- Price range of $500,000-$900,000 requires sustained large-mold 5-axis work to justify
- 18,000 kg machine mass demands a prepared foundation and overhead crane for installation and service
- 5-axis CAM programming complexity adds programming time versus 3-axis mold work; shop requires trained 5-axis CAM operators
- Not suited for high-volume production 5-axis work where faster axis speeds and pallet changers would be more productive
Best For
Frequently Asked Questions
01
A new Makino V90S typically ranges from $500,000 to $900,000. A base machine starts around $500,000-$600,000. The 60-tool ATC, through-spindle coolant, Renishaw probing, and automation provisions can push fully optioned machines toward $800,000-$900,000. Makino provides detailed application reviews before quoting.
02
The V90S B-axis tilts +/-30 degrees from vertical. This is optimized for die and mold work where deep-cavity access, draft-angle finishing, and compound-surface contouring are the primary 5-axis requirements. For shops with predominantly mold and die work, the +/-30 degree range covers the vast majority of 5-axis toolpath requirements.
03
Both are large 5-axis platforms targeting precision mold and die work. The DMU 200 P uses a Heidenhain or Siemens control rather than Makino's Pro 6/SGI.5. The V90S differentiates on Makino's contouring software expertise and die/mold-specific tuning, which many mold shops find delivers superior surface finish quality in 5-axis simultaneous mode.
04
Yes. The V90S is specifically designed for 5-axis simultaneous contouring in hardened tool steels (P20, H13, S7 up to 60 HRC). The Pro 6 control's SGI.5 manages axis velocity and acceleration across simultaneous 5-axis motion to maintain surface quality. The core-cooled spindle maintains thermal stability during extended 5-axis finishing passes.
05
The V90S works with all major CAM systems including Siemens NX CAM, Hypermill, PowerMill, Mastercam, Catia CAM, and Edgecam, all of which have Makino Pro 6 post-processors available. For 5-axis mold work, Hypermill and PowerMill are particularly popular in the die/mold segment due to their strong 5-axis contouring and surface finishing strategies.
Videos
Makino Inc.
Perfection Global

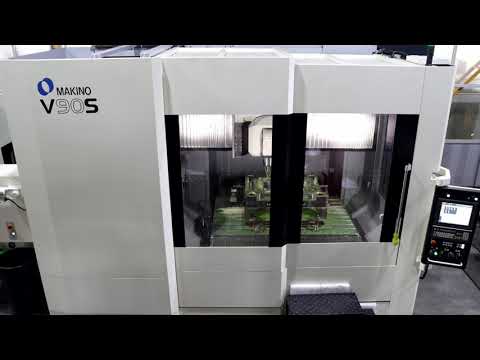

Fow Mould
