Emco UMILL 1000

Specs verified 2026-10-05 · emco-world.com Updated 2026-10-05

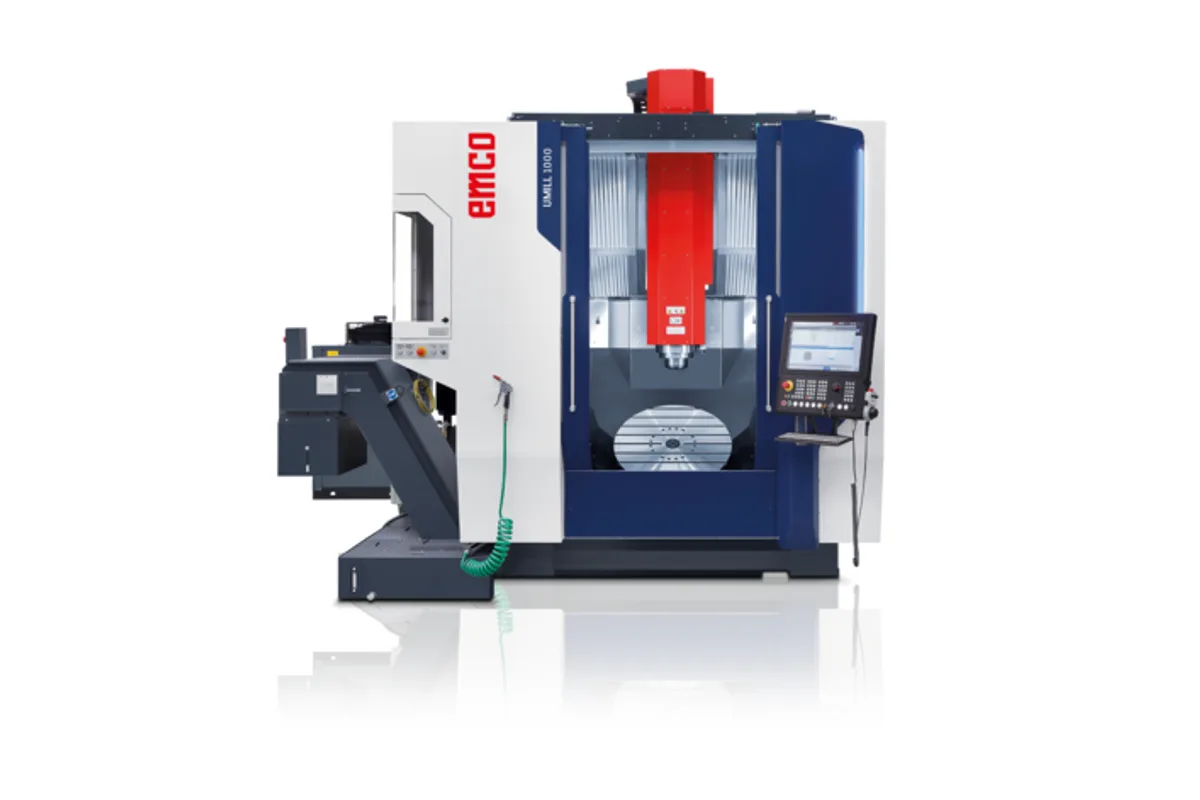

Image: emco-world.com, Emco

Key Specifications

Tool Capacity

30 (60/90)

Table Size

800 x 800 mm

Rapid Traverse

50 m/min (1,968 ipm)

Spindle Power

38 kW (51.0 hp)

x axis travel

900 mm (35.4 in)

y axis travel

1,000 mm (39.4 in)

How much does the Emco UMILL 1000 cost?

Price estimate

Uncertain

We do not have a price for the Emco UMILL 1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Emco UMILL 1000 moves Emco's 5-axis simultaneous machining into a gantry structure. Travels are 900 mm (35.4 in) in X, 1,000 mm (39.4 in) in Y and 700 mm (27.6 in) in Z, and the swivel-rotary table takes 1,000 kg (2,205 lb). That is more than twice the load of the UMILL 750, on a machine that weighs 18,000 kg (39,683 lb).

Mass is the theme. A gantry carries the spindle on both sides, which keeps the structure symmetrical as Y moves, and the weight gives the damping needed for steel and titanium. The table has a clamping area of 800 x 800 mm, described by Emco as Ø 800 mm, with torque motors and direct measuring systems. Its swivelling range is +/-125°, wider than on the smaller UMILL machines.

The motor spindle runs 50-15000 rpm with 38 kW (51.0 hp) and 138 Nm (101.8 lb-ft). That is the strongest spindle among the three compact UMILL models and the only one without a faster alternative in the table. Tools can be 80 mm (3.1 in) in diameter and 350 mm (13.8 in) long, and the magazine holds 30 with 60 or 90 as options.

Rapids are 50 m/min (1,968 ipm) and the axes feed rate is listed as 15 m/min (591 ipm). Linear scales in X, Y and Z are standard. Emco notes that the machine is flexible for automation from the front. Controls are Siemens or Heidenhain. Overall size is 3,450 x 4,750 x 3,630 mm (135.8 x 187.0 x 142.9 in).

Full Specifications

Parameter	Value
X Axis Travel	900 mm (35.4 in)
Y Axis Travel	1,000 mm (39.4 in)
Z Axis Travel	700 mm (27.6 in)
Distance Spindle Nose to Table	170 / 870 mm
Cutting Feed Rate	15 m/min (591 ipm)
Rapid Traverse Rate	50 m/min (1,968 ipm)
Table Size	800 x 800 mm
Max Table Load	1,000 kg (2,205 lb)
Spindle Speed Range	50-15000 rpm
Spindle Motor Power	38 kW (51.0 hp)
Spindle Torque	138 Nm (101.8 lb-ft)
Tool Capacity	30 (60/90)
Max Tool Diameter (full magazine)	80 mm (3.1 in)
Max Tool Length	350 mm (13.8 in)
Machine Dimensions	3,450 x 4,750 x 3,630 mm (135.8 x 187.0 x 142.9 in)
Machine Weight	18,000 kg (39,683 lb)

Specifications sourced from emco-world.com — verified 2026-10-05

Strengths & Limitations

Strengths

Gantry structure with 1,000 kg (2,205 lb) table load
Swivelling range of +/-125° on a torque-motor table
38 kW (51.0 hp) motor spindle with 138 Nm (101.8 lb-ft)
1,000 mm (39.4 in) of Y travel and 700 mm (27.6 in) of Z
Standard linear scales in X-Y-Z
Prepared for automation from the front

Limitations

Spindle speed ends at 15000 rpm; no faster spindle is listed
Weighs 18,000 kg (39,683 lb) and needs 3,450 x 4,750 x 3,630 mm (135.8 x 187.0 x 142.9 in)
Tools are limited to 80 mm (3.1 in) in diameter
60 and 90-station magazines are options

Best For

Heavier 5-axis parts up to 1,000 kg (2,205 lb) Steel and titanium structural components Mould and die work on an 800 x 800 mm table Automated 5-axis cells loaded from the front

Frequently Asked Questions

01 How much weight can the UMILL 1000 table carry?

The maximum table load is 1,000 kg (2,205 lb). The clamping area is 800 x 800 mm, and the swivel-rotary table has torque motors and direct measuring systems with a swivelling range of +/-125°.

02 What are the axis travels of the UMILL 1000?

X travel is 900 mm (35.4 in), Y 1,000 mm (39.4 in) and Z 700 mm (27.6 in). The distance from spindle nose to table is 170 / 870 mm.

03 What spindle does the UMILL 1000 have?

A motor spindle with a speed range of 50-15000 rpm, 38 kW (51.0 hp) of drive power and 138 Nm (101.8 lb-ft) of torque. Maximum tool diameter is 80 mm (3.1 in) and maximum tool length 350 mm (13.8 in).

04 How does the UMILL 1000 compare with the UMILL 1500?

The UMILL 1500 is a much larger gantry machine for milling and turning, with 1,500 mm (59.1 in) of X travel and a table load of 6,000 kg (13,228 lb). The UMILL 1000 stays at 1,000 kg (2,205 lb) and 900 mm (35.4 in) of X.
