Emco UMILL 1500

Q: How much does the Emco UMILL 1500 cost?

The price estimate for the Emco UMILL 1500 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/emco-umill-1500#price; the request is passed to Emco or an authorised dealer.

Specs verified 2026-10-05 · emco-world.com Updated 2026-10-05

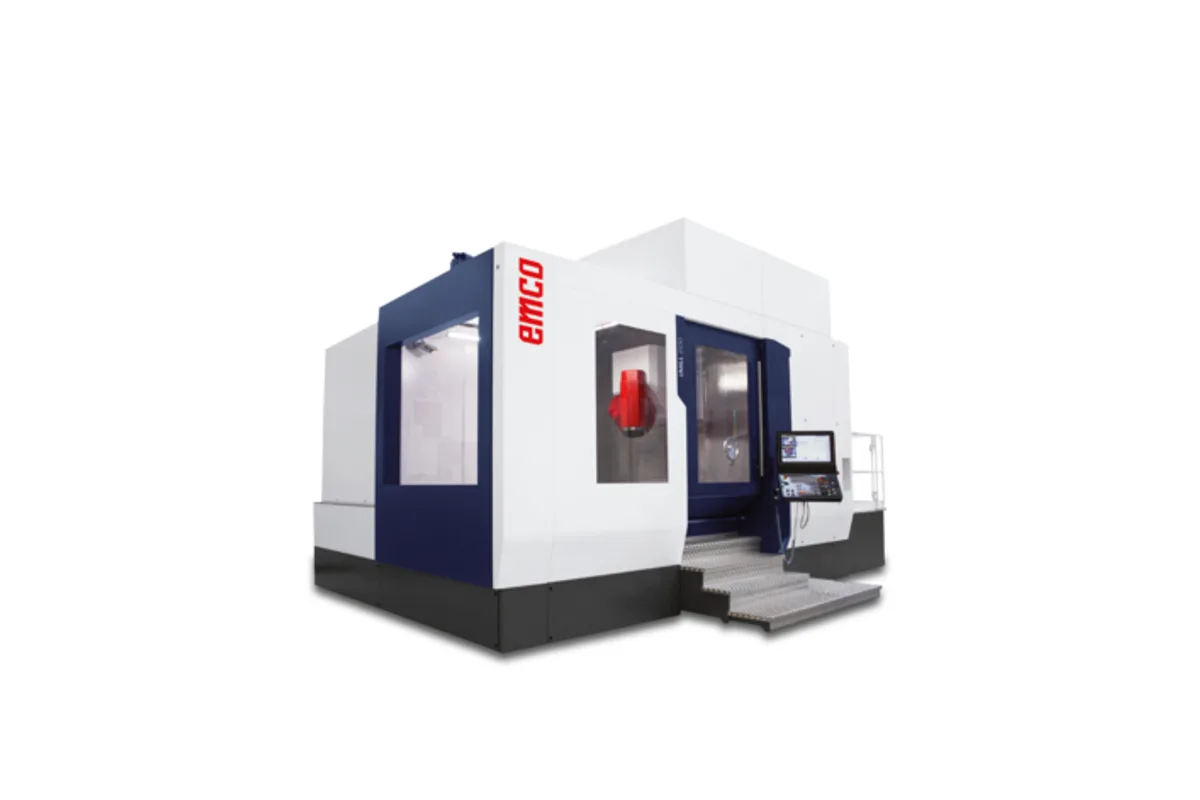

Image: emco-world.com, Emco

Key Specifications

Tool Capacity

88 / 122 / 203 pockets

Table Size

1400 x 1200 mm

x axis travel

1,500 mm (59.1 in)

y axis travel

1,500 mm (59.1 in)

z axis travel

1,100 mm (43.3 in)

feed rate

60 m/min (2,362 ipm)

How much does the Emco UMILL 1500 cost?

Price estimate

Uncertain

We do not have a price for the Emco UMILL 1500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Emco UMILL 1500 is a 5-axis gantry machine that mills and turns. Its three linear axes travel 1,500 mm (59.1 in), 1,500 mm (59.1 in) and 1,100 mm (43.3 in), and the part sits on an NC rotary table that comes in two forms: a milling table of 1400 x 1200 mm for 6,000 kg (13,228 lb), or a mill-turn table of ø 1400 mm that spins at up to 260 rpm.

The mill-turn table turns the machine into a vertical lathe for the part already clamped on it. A housing, ring or flange can be turned on its outside and inside diameters, then drilled and milled at any angle without being moved. The cost is load capacity, which drops to 3,500 kg (7,716 lb) on the turning table. Both tables use a torque motor rated 3,000 Nm (2212.8 lb-ft).

Two milling heads are listed for this model. The basic E58 head has an electrospindle of 45 / 58 kW (S1 / S6) and 300 / 372 Nm (S1 / S6) at 12,000 rpm, with an HSK-A(T)100 taper that accepts turning tools. The E61 head is the high-speed choice: 20,000 rpm and 50 / 63 kW (S1 / S6) on HSK-A63. Both have a 15° undercut, so the tool can reach slightly below horizontal.

The tool magazine has 88 / 122 / 203 pockets. All axes feed at 60 m/min (2,362 ipm). Through-tool coolant is listed at 20 l/min; 40 bar and the tank holds 2500 l (paper band filter).

Full Specifications

Parameter	Value
X Axis Travel	1,500 mm (59.1 in)
Y Axis Travel	1,500 mm (59.1 in)
Z Axis Travel	1,100 mm (43.3 in)
Feed Rate	60 m/min (2,362 ipm)
External Cooling	28 l/min; 6 bar
Internal Cooling	20 l/min; 40 bar
Head E58 Power	45 / 58 kW (S1 / S6)
Head E58 Torque	300 / 372 Nm (S1 / S6)
Head E58 Speed	12,000 rpm
Head E58 Tool Taper	HSK-A(T)100
Head Undercut	15°
Head E61 Power	50 / 63 kW (S1 / S6)
Head E61 Torque	100 / 125 Nm (S1 / S6)
Head E61 Speed	20,000 rpm
Head E61 Tool Taper	HSK-A63
Tool Capacity	88 / 122 / 203 pockets
Table Size	1400 x 1200 mm
Max Table Load	6,000 kg (13,228 lb)
Table Torque	3,000 Nm (2212.8 lb-ft)
Table Speed	20 rpm
Turning Table Size	ø 1400 mm
Turning Table Load	3,500 kg (7,716 lb)
Turning Table Speed	up to 260 rpm
Coolant Tank	2500 l (paper band filter)

Specifications sourced from emco-world.com — verified 2026-10-05

Strengths & Limitations

Strengths

Milling and turning in one setup on a rotary table that reaches up to 260 rpm
Milling table rated for 6,000 kg (13,228 lb)
Head undercut of 15° on both listed milling heads
Tool magazine with 88 / 122 / 203 pockets
Feed rate of 60 m/min (2,362 ipm) on all linear axes

Limitations

The mill-turn table carries 3,500 kg (7,716 lb), less than the milling table
The High Power E67 head is listed for the UMILL 1800 only
Basic rotary table speed is 20 rpm; turning needs the mill-turn table
Coolant plant with a 2500 l (paper band filter) tank adds to the installation

Best For

Rings, housings and flanges needing turning and 5-axis milling Parts up to 6,000 kg (13,228 lb) on the milling table Complete machining of large complex workpieces in one clamping Aerospace and energy components in tough alloys

Frequently Asked Questions

01 Can the UMILL 1500 turn as well as mill?

Yes, with the NC rotary table for mill-turn operations. That table is ø 1400 mm in size, carries 3,500 kg (7,716 lb) and runs at up to 260 rpm. The basic rotary table is a positioning and milling table with a maximum speed of 20 rpm.

02 What are the axis travels of the UMILL 1500?

X travel is 1,500 mm (59.1 in), Y 1,500 mm (59.1 in) and Z 1,100 mm (43.3 in). The feed rate is 60 m/min (2,362 ipm). The milling head adds the two rotary motions for 5-axis work and has an undercut of 15°.

03 Which milling heads are available?

The brochure lists the E58 head as basic equipment, with 45 / 58 kW (S1 / S6), 300 / 372 Nm (S1 / S6) and 12,000 rpm, and the E61 high-speed head with 50 / 63 kW (S1 / S6), 100 / 125 Nm (S1 / S6) and 20,000 rpm.

04 How does the UMILL 1500 differ from the UMILL 1800?

The UMILL 1800 is larger, with 1,800 mm (70.9 in) of X travel, a milling table rated for 10,000 kg (22,046 lb) and an additional High Power head. The UMILL 1500 travels 1,500 mm (59.1 in) in X and carries 6,000 kg (13,228 lb).
