Emco Dynamill G5

Q: How much does the Emco Dynamill G5 cost?

The price estimate for the Emco Dynamill G5 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/emco-dynamill-g5#price; the request is passed to Emco or an authorised dealer.

Specs verified 2026-10-05 · emco-world.com Updated 2026-10-05

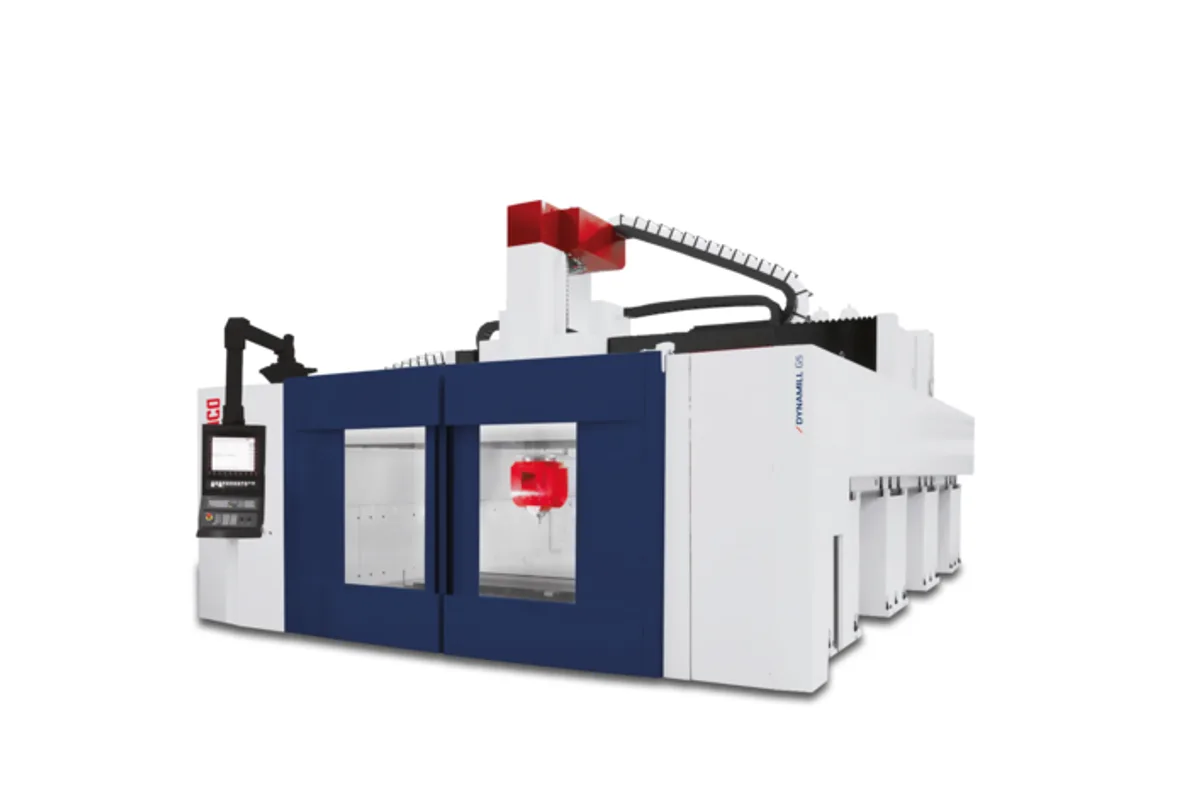

Image: emco-world.com, Emco

Key Specifications

Tool Capacity

24 / 48 / 64 pockets

Accuracy

X 10 / Y 12 / Z 8 µm (X=2500 mm, Y=3500 mm, Z=1300 mm)

Repeatability

X 5 / Y 6 / Z 4 µm (X=2500 mm, Y=3500 mm, Z=1300 mm)

x axis travel

2500 / 4000 / 6000 / 8000 mm

y axis travel

3500 / 2200 mm

z axis travel

1300 / 1500 mm

How much does the Emco Dynamill G5 cost?

Price estimate

Uncertain

We do not have a price for the Emco Dynamill G5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Emco Dynamill G5 is a gantry milling machine sized for a normal workshop bay. Longitudinal travel is 2500 / 4000 / 6000 / 8000 mm, cross travel 3500 / 2200 mm and vertical travel 1300 / 1500 mm, which makes it the compact member of the gantry family: Emco describes a large working area on a small installation surface with a simple foundation design.

It is also the only gantry in the range for which the brochure prints accuracy figures. Linear positioning is X 10 / Y 12 / Z 8 µm (X=2500 mm, Y=3500 mm, Z=1300 mm) and repeatability X 5 / Y 6 / Z 4 µm (X=2500 mm, Y=3500 mm, Z=1300 mm). With acceleration of 4 m/s² and a feed rate of 40 m/min (1,575 ipm), the machine is aimed at finishing mould and die surfaces, where the axes change direction constantly and contour accuracy depends on how well they follow.

Head choice defines the work. A universal mechanical head gives 300 / 373 Nm or 615 / 900 Nm (S1/S6) at up to 6,000 rpm for roughing. Direct-drive heads with high-speed spindles cover finishing: the E55 fork head reaches the highest speed, listed as 42 / 55 kW, 67 / 87.5 Nm (S1/S6), 24000 rpm, HSK 63-A, and the E58G is the torque-oriented one at 45 / 58 kW, 300 / 372 Nm (S1/S6), 12000 rpm, HSK 100-A. The A and C axes of these heads rotate at 60 rpm.

The spindle motor is 51 kW 330 Nm (S1) as standard, with 74 kW 615 Nm (S1) optional. Internal cooling is 20 l/min; 20 / 40 / 60 bar. The tool changer is listed with 24 / 48 / 64 pockets.

Full Specifications

Parameter	Value
X Axis Travel	2500 / 4000 / 6000 / 8000 mm
Y Axis Travel	3500 / 2200 mm
Z Axis Travel	1300 / 1500 mm
Feed Rate	40 m/min (1,575 ipm)
Acceleration	4 m/s²
Positioning Accuracy	X 10 / Y 12 / Z 8 µm (X=2500 mm, Y=3500 mm, Z=1300 mm)
Repeatability	X 5 / Y 6 / Z 4 µm (X=2500 mm, Y=3500 mm, Z=1300 mm)
Spindle Motor	51 kW 330 Nm (S1)
Spindle Motor Option	74 kW 615 Nm (S1)
External Cooling	28 l/min; 6 bar
Internal Cooling	20 l/min; 20 / 40 / 60 bar
Universal Head Power	38 / 48 kW or 38 / 56 kW (S1/S6)
Universal Head Torque	300 / 373 Nm or 615 / 900 Nm (S1/S6)
Universal Head Speed	6,000 rpm
Universal Head Tool Taper	ISO 50 / HSK 100-A
Head E61g	50 / 63 kW, 100 / 125 Nm (S1/S6), 20000 rpm, HSK 63-A
Head E62g	50 / 63 kW, 100 / 125 Nm (S1/S6), 12000 rpm, HSK 100-A
Head E55	42 / 55 kW, 67 / 87.5 Nm (S1/S6), 24000 rpm, HSK 63-A
Head E58g	45 / 58 kW, 300 / 372 Nm (S1/S6), 12000 rpm, HSK 100-A
Head E68	70 / 85 kW, 160 / 220 Nm (S1/S6), 15000 rpm, HSK 100-A
Head AC Axis Speed	60 rpm
Tool Capacity	24 / 48 / 64 pockets

Specifications sourced from emco-world.com — verified 2026-10-05

Strengths & Limitations

Strengths

Published linear positioning accuracy of X 10 / Y 12 / Z 8 µm (X=2500 mm, Y=3500 mm, Z=1300 mm)
Feed rate of 40 m/min (1,575 ipm) with 4 m/s² acceleration
Direct drive technology on all milling heads with high-speed spindle
High-speed heads up to 24000 rpm
Simple foundation design and small installation surface

Limitations

Vertical travel is limited to 1300 / 1500 mm
Longitudinal travel ends at 8000 mm; longer work belongs on the Dynamill
The brochure lists a tool changer of 24 / 48 / 64 pockets, small for long unattended programs
The 60 bar internal cooling and the stronger spindle motor are options

Best For

Moulds and dies needing 5-axis finishing Aluminium and composite structures Workshops without deep foundations Large parts within 3500 / 2200 mm of cross travel

Frequently Asked Questions

01 What sizes does the Dynamill G5 come in?

Longitudinal travel in X is 2500 / 4000 / 6000 / 8000 mm, cross travel in Y 3500 / 2200 mm and vertical travel in Z 1300 / 1500 mm. The feed rate is 40 m/min (1,575 ipm) and acceleration 4 m/s².

02 How accurate is the Dynamill G5?

The brochure gives linear positioning accuracy of X 10 / Y 12 / Z 8 µm (X=2500 mm, Y=3500 mm, Z=1300 mm) and repeatability of X 5 / Y 6 / Z 4 µm (X=2500 mm, Y=3500 mm, Z=1300 mm). Both rows are stated for the machine with travels of X=2500 mm, Y=3500 mm and Z=1300 mm, so longer versions should be asked about separately.

03 Which milling heads are offered?

A universal head with mechanical spindle at 6,000 rpm and 38 / 48 kW or 38 / 56 kW (S1/S6), and several heads with high-speed spindles. Among them the E61G is listed as 50 / 63 kW, 100 / 125 Nm (S1/S6), 20000 rpm, HSK 63-A and the E68 as 70 / 85 kW, 160 / 220 Nm (S1/S6), 15000 rpm, HSK 100-A.

04 What spindle motor does it use?

The standard spindle motor is 51 kW 330 Nm (S1); the option is 74 kW 615 Nm (S1). Tool tapers on the universal head are ISO 50 / HSK 100-A. Coolant through the tool is listed as 20 l/min; 20 / 40 / 60 bar.
