Emco Megamill

Specs verified 2026-10-05 · emco-world.com Updated 2026-10-05

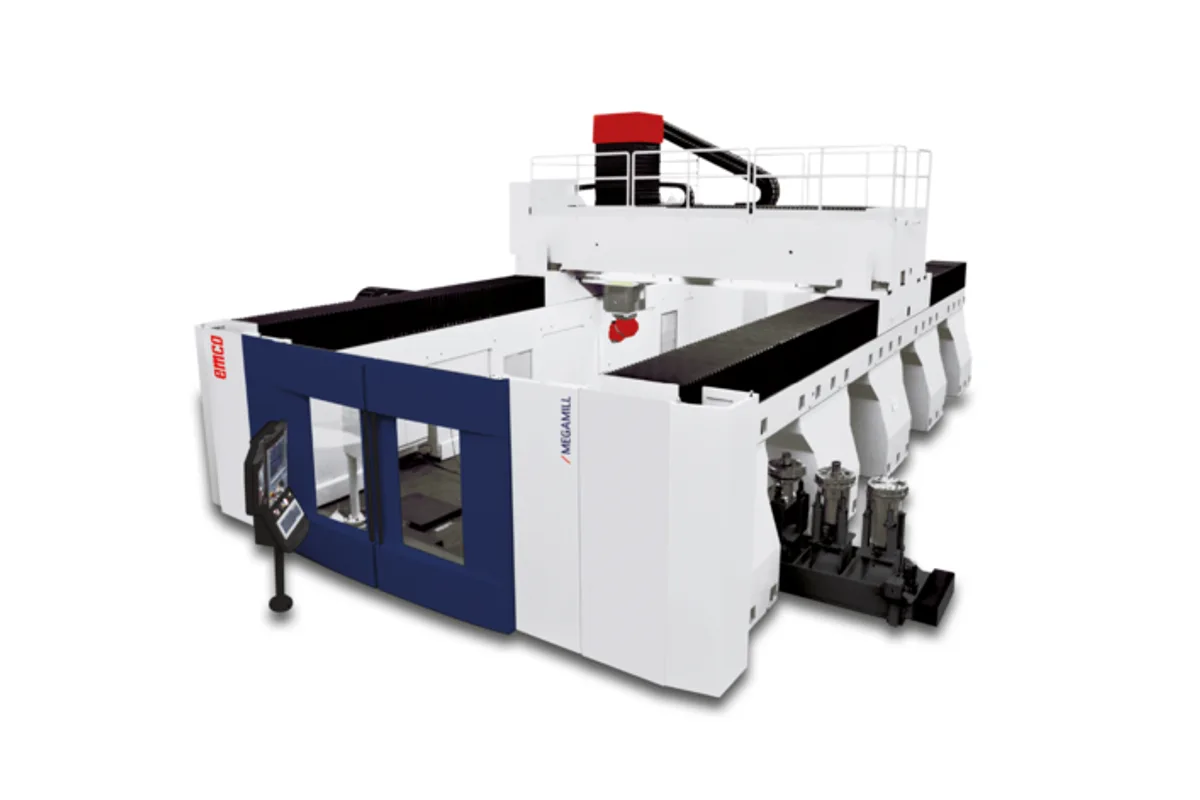

Image: emco-world.com, Emco

Key Specifications

Tool Capacity

48 / 64 / 96 / 128 pockets

x axis travel

7500 mm and more (in steps of 2500 mm)

y axis travel

4000 / 5000 / 6000 / 7000 mm

z axis travel

1500 / 2000 / 2500 mm

feed rate

30 m/min (1,181 ipm)

ram section

550 x 640 mm

How much does the Emco Megamill cost?

Price estimate

Uncertain

We do not have a price for the Emco Megamill that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Emco Megamill is the heavy gantry in the range, built for torque. Its standard spindle motor is 40 kW 1200 Nm, with 50 kW 1500 Nm (S1) / 61 kW 1800 Nm (S6) as the option. The longitudinal axis starts at 7500 mm and more (in steps of 2500 mm), cross travel is 4000 / 5000 / 6000 / 7000 mm and vertical travel 1500 / 2000 / 2500 mm.

Structure comes first on a machine like this. Emco lists a welded steel construction, a high-precision rack and pinion drive with zero clearance in the X and Y axes, and a Z-axis slide in box-in-box design with eightfold bearing. The ram section is 550 x 640 mm. A ram guided on all sides and held at eight points resists the bending and twisting that a long overhang produces in a heavy cut, which is what makes the motor torque usable at full vertical extension.

Emco names automotive moulds and dies and large aerospace workpieces as the target. For them the universal head offers 1000 / 1550 Nm (S1 / S6) at 15 ÷ 6000 rpm (option: 15 ÷ 8000 rpm), and four high-speed spindles are listed for finishing, the fastest being 42 / 55 kW, 67 / 87.5 Nm (S1 / S6), 24000 rpm, HSK 63-A. Heads change automatically from a magazine with 2 / 3 pockets.

Feed is 30 m/min (1,181 ipm) in machining and in rapid. The tool magazine is listed with 48 / 64 / 96 / 128 pockets, and coolant through the spindle with 20 l/min; 20 / 40 / 60 bar. Numeric control is Heidenhain or Siemens.

Full Specifications

Parameter	Value
X Axis Travel	7500 mm and more (in steps of 2500 mm)
Y Axis Travel	4000 / 5000 / 6000 / 7000 mm
Z Axis Travel	1500 / 2000 / 2500 mm
Feed Rate	30 m/min (1,181 ipm)
Ram Section	550 x 640 mm
Spindle Motor	40 kW 1200 Nm
Spindle Motor Option	50 kW 1500 Nm (S1) / 61 kW 1800 Nm (S6)
Coolant Low Pressure	28 l/min, 6 bar
Coolant Through Spindle	20 l/min; 20 / 40 / 60 bar
Tool Capacity	48 / 64 / 96 / 128 pockets
Head Magazine	2 / 3 pockets
Universal Head Power	38 / 57 kW (S1 / S6)
Universal Head Torque	1000 / 1550 Nm (S1 / S6)
Universal Head Speed	15 ÷ 6000 rpm (option: 15 ÷ 8000 rpm)
Universal Head Tool Taper	ISO 50 DIN 69871 (options: BIG PLUS, HSK 100-A DIN 69893)
High Speed Spindle 50 63 Kw	50 / 63 kW, 100 / 125 Nm (S1 / S6), 12000 / 20000 rpm, HSK 100-A / HSK 63-A
High Speed Spindle 42 55 Kw	42 / 55 kW, 67 / 87.5 Nm (S1 / S6), 24000 rpm, HSK 63-A
High Speed Spindle 45 58 Kw	45 / 58 kW, 300 / 372 Nm (S1 / S6), 12000 rpm, HSK 100-A
High Speed Spindle 70 86 Kw	70 / 86 kW, 160 / 220 Nm (S1 / S6), 15000 rpm, HSK 100-A

Specifications sourced from emco-world.com — verified 2026-10-05

Strengths & Limitations

Strengths

Spindle motor of 40 kW 1200 Nm, optionally 50 kW 1500 Nm (S1) / 61 kW 1800 Nm (S6)
Z-axis slide in box-in-box design with eightfold bearing
Zero-clearance rack and pinion drive in X and Y
Cross travel of 4000 / 5000 / 6000 / 7000 mm
Tool magazine with 48 / 64 / 96 / 128 pockets

Limitations

Feed rate of 30 m/min (1,181 ipm) is lower than the 40 m/min of the Dynamill
Smallest longitudinal travel is 7500 mm, so it is not a machine for small shops
Universal head speed is 15 ÷ 6000 rpm (option: 15 ÷ 8000 rpm); fast finishing needs a second head
Head changer and high-speed heads have to be specified with the order

Best For

Large automotive press dies and moulds Aerospace structural parts Heavy roughing of steel and cast iron on big workpieces Workpieces up to 7000 mm wide in the cross axis

Frequently Asked Questions

01 How big is the Megamill?

Longitudinal travel starts at 7500 mm and more (in steps of 2500 mm). Cross travel is 4000 / 5000 / 6000 / 7000 mm and vertical travel 1500 / 2000 / 2500 mm. The vertical ram has a section of 550 x 640 mm.

02 How much spindle torque does the Megamill have?

The standard spindle motor is 40 kW 1200 Nm, and the option is 50 kW 1500 Nm (S1) / 61 kW 1800 Nm (S6). At the universal milling head the brochure lists 38 / 57 kW (S1 / S6) and 1000 / 1550 Nm (S1 / S6).

03 What milling heads can it carry?

A universal head with continuous positioning at 15 ÷ 6000 rpm (option: 15 ÷ 8000 rpm), a head with offset spindle, and universal and fork-type heads with high-speed spindles. Listed high-speed units include 45 / 58 kW, 300 / 372 Nm (S1 / S6), 12000 rpm, HSK 100-A and 70 / 86 kW, 160 / 220 Nm (S1 / S6), 15000 rpm, HSK 100-A.

04 How does the Megamill differ from the Powermill?

In the shared brochure the two have the same cross and vertical travels and the same heads. The Powermill starts shorter, at 6000 mm and more (in parts of 2000 mm), with a tool magazine of 48 / 64 / 80 / 120 pockets. The Megamill starts at 7500 mm and more (in steps of 2500 mm) with 48 / 64 / 96 / 128 pockets.
