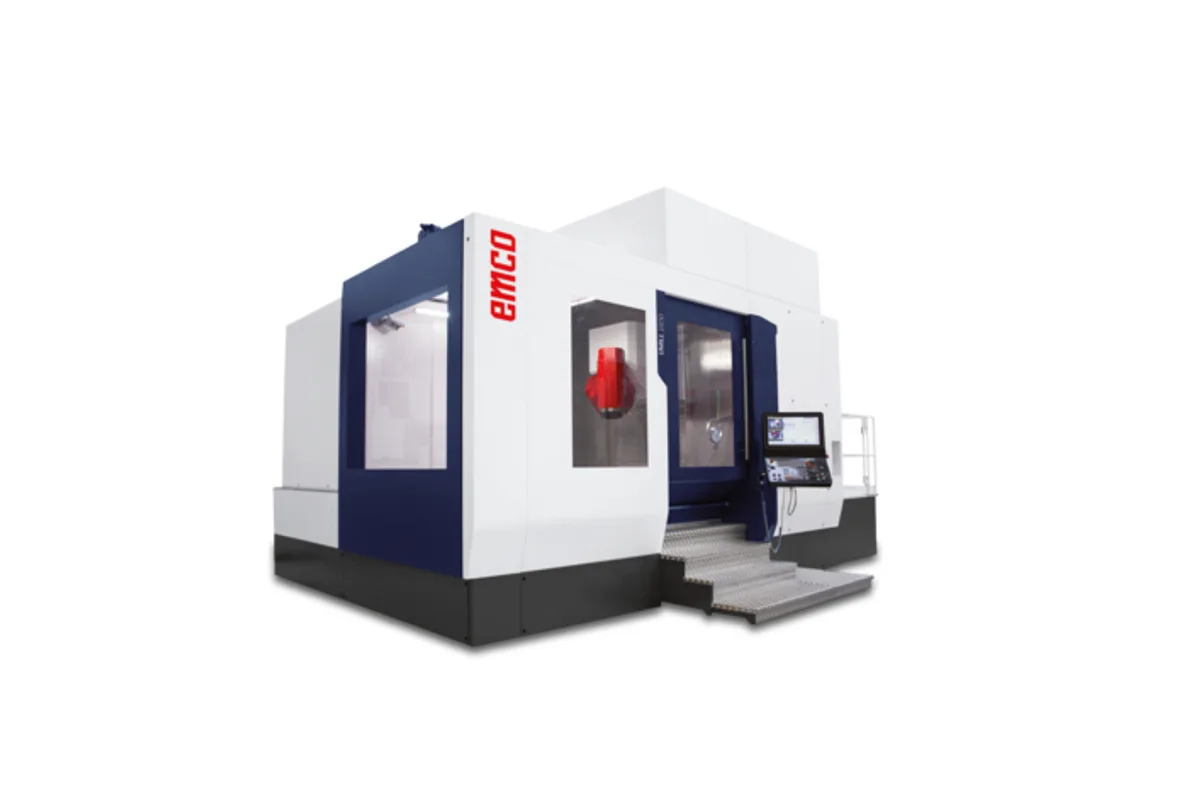

Emco UMILL 1800
Image: emco-world.com, Emco
Key Specifications
Tool Capacity
Table Size
x axis travel
z axis travel
feed rate
external cooling
How much does the Emco UMILL 1800 cost?
Price estimate
We do not have a price for the Emco UMILL 1800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Ten tonnes on a rotary table under a 5-axis head: the Emco UMILL 1800 carries 10,000 kg (22,046 lb) on its 1700 x 1400 mm milling table and 6,000 kg (13,228 lb) on the ø 1800 mm table for mill-turn operations. X travel is 1,800 mm (70.9 in) and Z travel 1,250 mm (49.2 in). Emco's brochure and its product page state different Y travels, so that row is left out here and should be confirmed.
The machine shares its concept with the UMILL 1500, a gantry with a rotary table that can also act as a turning spindle at up to 260 rpm. What it adds, besides size, is a third head. The High Power E67 head delivers 46 / 77 kW (S1 / S6) and 600 / 1000 Nm (S1 / S6) at up to 8,000 rpm on an HSK-A100 taper. That is a roughing head for steel and cast iron, and it is listed for this model alone.
The other two heads are the basic E58, with 300 / 372 Nm (S1 / S6) at 12,000 rpm, and the high-speed E61 at 20,000 rpm. A shop therefore chooses between torque, speed and a middle course when the machine is specified, and the choice should follow the dominant material.
The table torque motor is rated 6,800 Nm (5015.7 lb-ft). Feed rate is 60 m/min (2,362 ipm), the magazine holds 88 / 122 / 203 pockets, and the coolant tank is 2500 l (paper band filter) with internal cooling at 20 l/min; 40 bar. Emco points to wide openings in the covering for loading and unloading, which matters when parts arrive by crane.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,800 mm (70.9 in) |
| Z Axis Travel | 1,250 mm (49.2 in) |
| Feed Rate | 60 m/min (2,362 ipm) |
| External Cooling | 28 l/min; 6 bar |
| Internal Cooling | 20 l/min; 40 bar |
| Head E58 Power | 45 / 58 kW (S1 / S6) |
| Head E58 Torque | 300 / 372 Nm (S1 / S6) |
| Head E58 Speed | 12,000 rpm |
| Head E58 Tool Taper | HSK-A(T)100 |
| Head Undercut | 15° |
| Head E67 Power | 46 / 77 kW (S1 / S6) |
| Head E67 Torque | 600 / 1000 Nm (S1 / S6) |
| Head E67 Speed | 8,000 rpm |
| Head E67 Tool Taper | HSK-A100 |
| Head E61 Power | 50 / 63 kW (S1 / S6) |
| Head E61 Torque | 100 / 125 Nm (S1 / S6) |
| Head E61 Speed | 20,000 rpm |
| Head E61 Tool Taper | HSK-A63 |
| Tool Capacity | 88 / 122 / 203 pockets |
| Table Size | 1700 x 1400 mm |
| Max Table Load | 10,000 kg (22,046 lb) |
| Table Torque | 6,800 Nm (5015.7 lb-ft) |
| Table Speed | 10 rpm |
| Turning Table Size | ø 1800 mm |
| Turning Table Load | 6,000 kg (13,228 lb) |
| Turning Table Speed | up to 260 rpm |
| Coolant Tank | 2500 l (paper band filter) |
Specifications sourced from emco-world.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Milling table rated for 10,000 kg (22,046 lb), turning table for 6,000 kg (13,228 lb)
- High Power E67 head with 600 / 1000 Nm (S1 / S6)
- Mill-turn table of ø 1800 mm running at up to 260 rpm
- Table torque of 6,800 Nm (5015.7 lb-ft)
- Wide openings in the machine covering for loading and unloading
Limitations
- Basic rotary table turns at only 10 rpm
- The E67 head is limited to 8,000 rpm
- Y travel is stated inconsistently in Emco's own documents
- Three heads to choose from means the machine has to be specified for its main material
Best For
Frequently Asked Questions
01
The basic NC rotary table is 1700 x 1400 mm and carries 10,000 kg (22,046 lb). The rotary table for mill-turn operations is ø 1800 mm and carries 6,000 kg (13,228 lb). Both have a torque motor with 6,800 Nm (5015.7 lb-ft).
02
The E67 milling head with electrospindle, rated 46 / 77 kW (S1 / S6) and 600 / 1000 Nm (S1 / S6) at 8,000 rpm with an HSK-A100 taper. It has the same 15° undercut as the other heads.
03
The basic E58 head, with 45 / 58 kW (S1 / S6), 300 / 372 Nm (S1 / S6) and 12,000 rpm, and the high-speed E61 head with 50 / 63 kW (S1 / S6) and 20,000 rpm on HSK-A63.
04
X travel is 1,800 mm (70.9 in) and Z travel 1,250 mm (49.2 in), with a feed rate of 60 m/min (2,362 ipm). The Y travel is given differently in the brochure table and on the product page, so ask Emco for the current figure.
