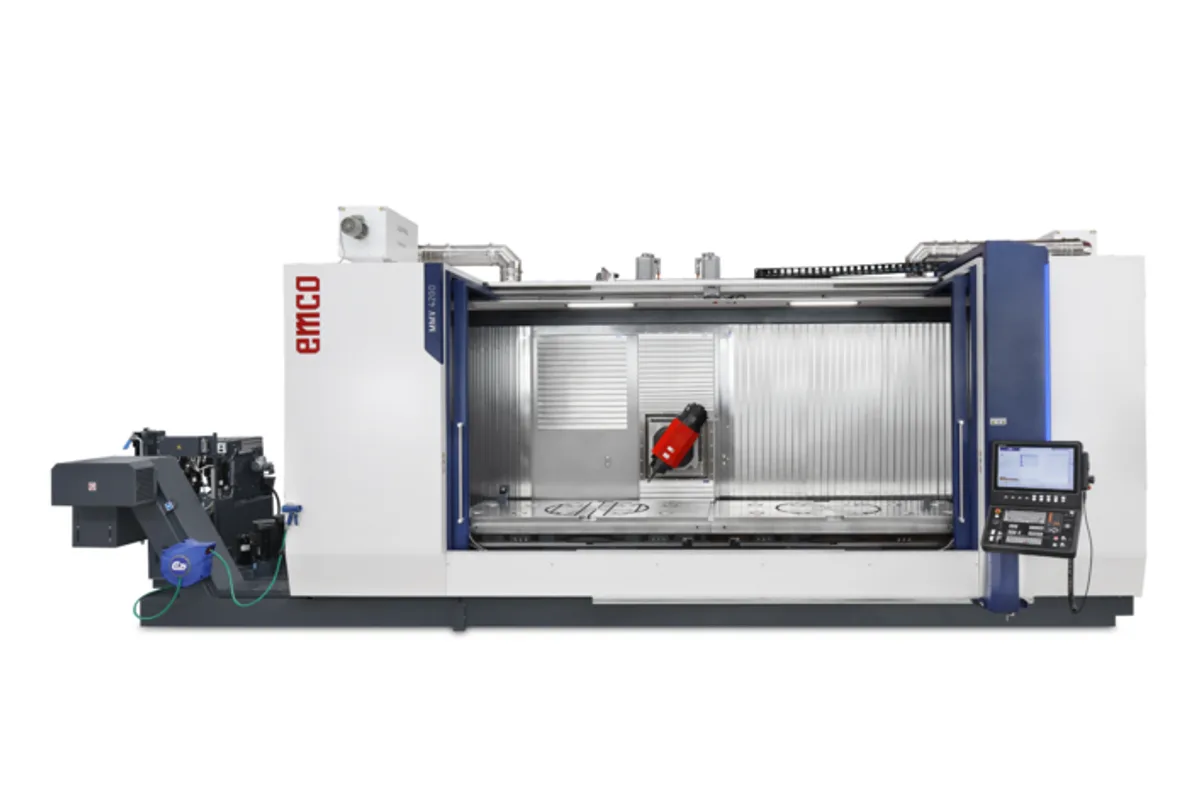

Emco MMV 4200
Image: emco-world.com, Emco
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
distance spindle nose to table
How much does the Emco MMV 4200 cost?
Price estimate
We do not have a price for the Emco MMV 4200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
On the Emco MMV 4200 the column travels 4,200 mm (165.4 in) along a 4500x1050 mm clamping area. X rapid is the fastest of the three linear axes: the row reads 60/50/50 m/min. On a bed this long, time spent traversing between features adds up, so the X drive matters as much as the spindle.
Emco explains how that speed is reached. The X axis uses a rotating-nut ball screw with a fixed screw, so the long screw does not have to spin, and it runs on linear roller guides of size 55. Y and Z have direct-driven ball screws. The practical effect is a long axis that positions quickly without the whip a rotating screw of this length would bring.
The head carries a motor spindle and can be set vertical or horizontal; nose-to-table clearance is 0-980 (950) mm (vertical) / 250 (280) - 1230 mm (horizontal). The table states 50-18000/50-10000 rpm with 125 Nm (S1), 170 Nm (S6-40%), while the equipment list names a 50-15000 rpm motor spindle with 46 kW and 170 Nm. Ask which spindle a quoted machine has.
Tool capacity is 40 (60/120), with tools up to 92 (125) mm. Table load is 6,000 kg (13,228 lb). The machine is 9,615 x 5,350 x 3,580 mm (378.5 x 210.6 x 140.9 in) overall and weighs 29,000 kg (63,933 lb). It is built in 4 or 5 axes versions with a SIEMENS Sinumerik ONE or HEIDENHAIN TNC 640.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,200 mm (165.4 in) |
| Y Axis Travel | 1,000 mm (39.4 in) |
| Z Axis Travel | 980 mm (38.6 in) |
| Distance Spindle Nose to Table | 0-980 (950) mm (vertical) / 250 (280) - 1230 mm (horizontal) |
| Rapid Traverse Xyz | 60/50/50 m/min |
| Table Size | 4500x1050 mm |
| Max Table Load | 6,000 kg (13,228 lb) |
| Tool Capacity | 40 (60/120) |
| Max Tool Diameter (full magazine) | 92 (125) mm |
| Spindle Speed Range | 50-18000/50-10000 rpm |
| Spindle Torque | 125 Nm (S1), 170 Nm (S6-40%) |
| Machine Dimensions | 9,615 x 5,350 x 3,580 mm (378.5 x 210.6 x 140.9 in) |
| Machine Weight | 29,000 kg (63,933 lb) |
Specifications sourced from emco-world.com — verified 2026-10-05
Strengths & Limitations
Strengths
- X rapid of 60 m/min from a rotating-nut ball screw
- 4,200 mm (165.4 in) X travel and 4500x1050 mm clamping area
- Table load of 6,000 kg (13,228 lb)
- Motor spindle head usable vertically and horizontally
- SIEMENS Sinumerik ONE or HEIDENHAIN TNC 640
Limitations
- Y travel stays at 1,000 mm (39.4 in)
- The 60 and 120-station magazines are alternatives to the 40-station base
- Maximum torque is 170 Nm at S6-40%
- Footprint of 9,615 x 5,350 x 3,580 mm (378.5 x 210.6 x 140.9 in)
Best For
Frequently Asked Questions
01
Rapid motion is listed as 60/50/50 m/min for X, Y and Z. The X axis uses a rotating nut on a fixed ball screw, and Y and Z have direct-driven ball screws.
02
The clamping area is 4500x1050 mm and the maximum table load 6,000 kg (13,228 lb). Travels over it are 4,200 mm (165.4 in) in X, 1,000 mm (39.4 in) in Y and 980 mm (38.6 in) in Z.
03
The technical table lists 50-18000/50-10000 rpm and 125 Nm (S1), 170 Nm (S6-40%). The equipment list names a motor spindle with 50-15000 rpm, 46 kW and 170 Nm. The two do not state the same speed, so confirm the spindle with Emco.
04
The MMV 5200 adds a metre of X travel, 5,200 mm (204.7 in), with a 5420x1050 mm clamping area and a 7,000 kg (15,432 lb) load. The MMV 4200 carries 6,000 kg (13,228 lb) and weighs 29,000 kg (63,933 lb).
