Emco Powermill

Q: How much does the Emco Powermill cost?

The price estimate for the Emco Powermill is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/emco-powermill#price; the request is passed to Emco or an authorised dealer.

Specs verified 2026-10-05 · emco-world.com Updated 2026-10-05

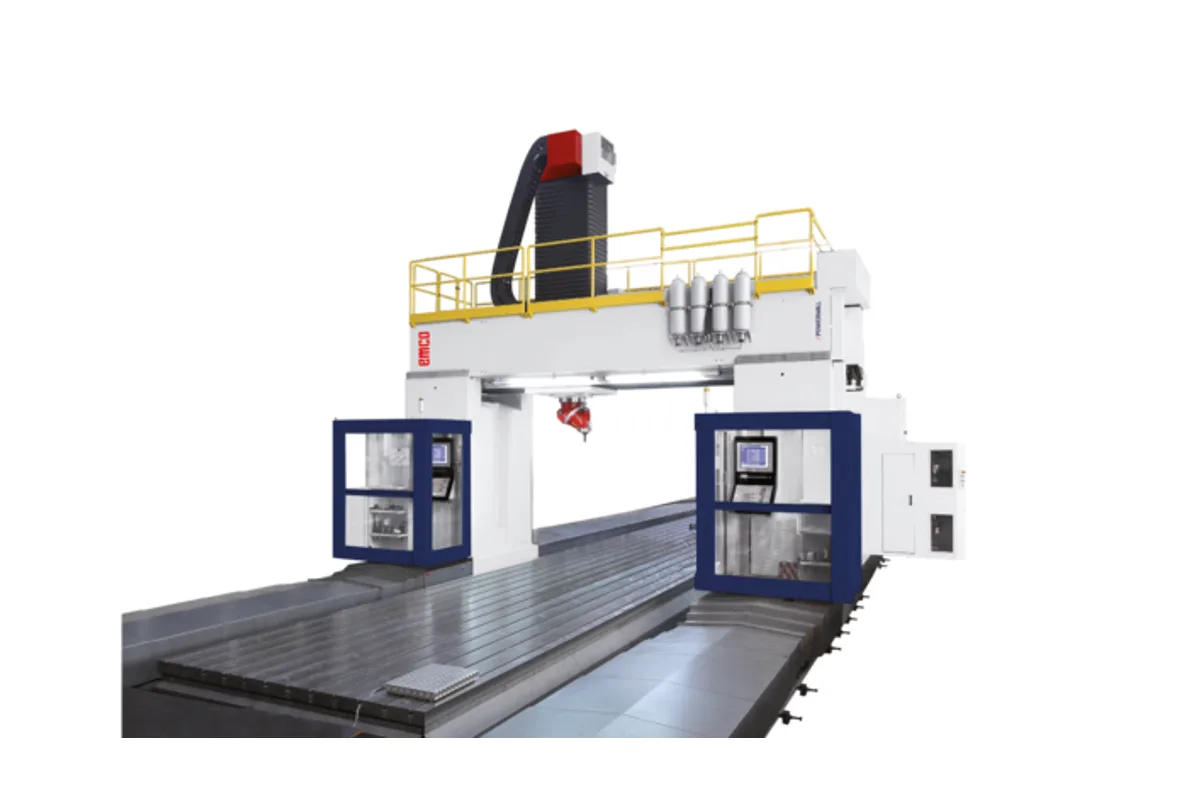

Image: emco-world.com, Emco

Key Specifications

Tool Capacity

48 / 64 / 80 / 120 pockets

x axis travel

6000 mm and more (in parts of 2000 mm)

y axis travel

4000 / 5000 / 6000 / 7000 mm

z axis travel

1500 / 2000 / 2500 mm

feed rate

30 m/min (1,181 ipm)

ram section

550 x 640 mm

How much does the Emco Powermill cost?

Price estimate

Uncertain

We do not have a price for the Emco Powermill that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Bulky, heavy workpieces are what Emco built the Powermill for. This gantry milling machine has a longitudinal travel of 6000 mm and more (in parts of 2000 mm), a cross travel of 4000 / 5000 / 6000 / 7000 mm and a vertical travel of 1500 / 2000 / 2500 mm, with a box-in-box structure around a ram of 550 x 640 mm.

Emco stresses flexible use, from aerospace to general engineering, and a design that keeps positioning, set-up and clamping of the workpiece easy. On a gantry the part rests on the floor or a plate between the rails and nothing but the bridge moves, so part weight is not a limit in the way it is on a table machine. The options list shows how far the machine can be taken: an automatic head changer, a double CNC platform, a 120-pocket tool changer and a tool cooling system.

Cutting data match the size. The spindle motor is 40 kW 1200 Nm, the universal head is rated 38 / 57 kW (S1 / S6) and 1000 / 1550 Nm (S1 / S6), and its speed is 15 ÷ 6000 rpm (option: 15 ÷ 8000 rpm). Finishing is done with one of the high-speed spindles, for instance 50 / 63 kW, 100 / 125 Nm (S1 / S6), 12000 / 20000 rpm, HSK 100-A / HSK 63-A.

The longitudinal axis grows in 2000 mm sections, which lets the machine be matched to the bay. Feed rate is 30 m/min (1,181 ipm). Coolant is supplied at 28 l/min, 6 bar externally and 20 l/min; 20 / 40 / 60 bar through the spindle.

Full Specifications

Parameter	Value
X Axis Travel	6000 mm and more (in parts of 2000 mm)
Y Axis Travel	4000 / 5000 / 6000 / 7000 mm
Z Axis Travel	1500 / 2000 / 2500 mm
Feed Rate	30 m/min (1,181 ipm)
Ram Section	550 x 640 mm
Spindle Motor	40 kW 1200 Nm
Spindle Motor Option	50 kW 1500 Nm (S1) / 61 kW 1800 Nm (S6)
Coolant Low Pressure	28 l/min, 6 bar
Coolant Through Spindle	20 l/min; 20 / 40 / 60 bar
Tool Capacity	48 / 64 / 80 / 120 pockets
Head Magazine	2 / 3 pockets
Universal Head Power	38 / 57 kW (S1 / S6)
Universal Head Torque	1000 / 1550 Nm (S1 / S6)
Universal Head Speed	15 ÷ 6000 rpm (option: 15 ÷ 8000 rpm)
Universal Head Tool Taper	ISO 50 DIN 69871 (options: BIG PLUS, HSK 100-A DIN 69893)
High Speed Spindle 50 63 Kw	50 / 63 kW, 100 / 125 Nm (S1 / S6), 12000 / 20000 rpm, HSK 100-A / HSK 63-A
High Speed Spindle 42 55 Kw	42 / 55 kW, 67 / 87.5 Nm (S1 / S6), 24000 rpm, HSK 63-A
High Speed Spindle 45 58 Kw	45 / 58 kW, 300 / 372 Nm (S1 / S6), 12000 rpm, HSK 100-A
High Speed Spindle 70 86 Kw	70 / 86 kW, 160 / 220 Nm (S1 / S6), 15000 rpm, HSK 100-A

Specifications sourced from emco-world.com — verified 2026-10-05

Strengths & Limitations

Strengths

Longitudinal travel of 6000 mm and more (in parts of 2000 mm)
Box-in-box structure with a 550 x 640 mm ram
Universal head torque of 1000 / 1550 Nm (S1 / S6)
Tool magazine of 48 / 64 / 80 / 120 pockets
Options include automatic head changer and double CNC platform

Limitations

Feed rate is 30 m/min (1,181 ipm)
Head changer, second platform and large magazine are all options
Starts at 6000 mm of longitudinal travel, so the footprint is large in every version
The product page itself lists only travels and feed; the detail is in the shared brochure

Best For

Bulky and heavy workpieces machined on the floor plate General engineering frames and weldments Aerospace tooling and structures Large parts needing both roughing and finishing heads

Frequently Asked Questions

01 What are the travels of the Powermill?

Longitudinal travel is 6000 mm and more (in parts of 2000 mm), cross travel 4000 / 5000 / 6000 / 7000 mm and vertical travel 1500 / 2000 / 2500 mm. The feed rate is 30 m/min (1,181 ipm).

02 What spindle does the Powermill have?

The spindle motor is listed as 40 kW 1200 Nm as standard and 50 kW 1500 Nm (S1) / 61 kW 1800 Nm (S6) as the option. The universal milling head delivers 1000 / 1550 Nm (S1 / S6) at 15 ÷ 6000 rpm (option: 15 ÷ 8000 rpm).

03 Which options does Emco list?

An automatic head changer, a double CNC platform, a 120-pocket tool changer and a tool cooling system, among others. The brochure gives the head magazine as 2 / 3 pockets and the tool magazine as 48 / 64 / 80 / 120 pockets.

04 How does the Powermill differ from the Megamill?

They share cross travel, vertical travel, ram section and heads. The Megamill starts at 7500 mm and more (in steps of 2500 mm) and lists a tool magazine of 48 / 64 / 96 / 128 pockets. The Powermill starts at 6000 mm and more (in parts of 2000 mm).
