Litz CH5-3000
Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Litz CH5-3000 cost?
Price estimate
We do not have a price for the Litz CH5-3000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

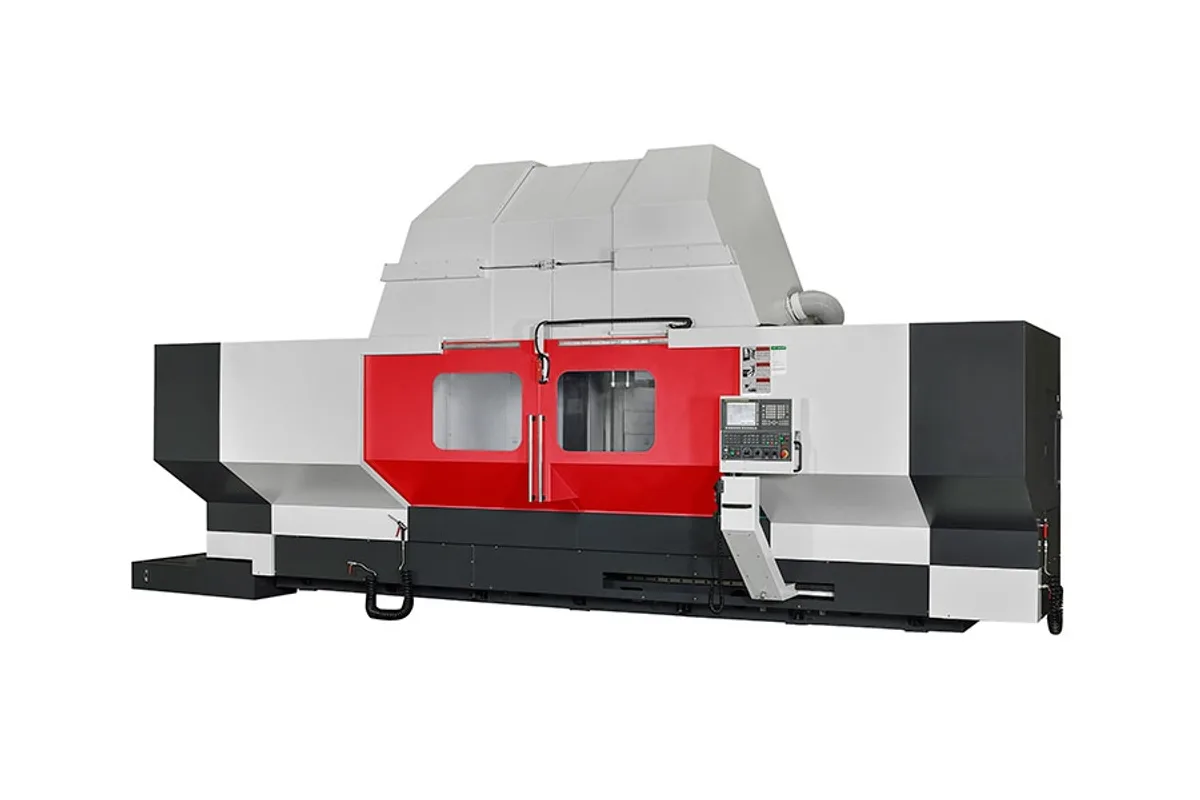

The Litz CH5-3000 is a five-axis vertical machining center for long parts. It has 3,000 mm (118.1 in) of X travel, 1,000 mm (39.4 in) of Y and 750 mm (29.5 in) of Z, with A and B axis travels of -40° to +40° each.
With plus and minus forty degrees on two rotary axes, this is a machine for tilted features and swept surfaces on parts that stay flat on the table. Wing ribs, spars, long structural extrusions, blades and large composite tooling are typical. The workpiece does not move in rotation at all, so its length and weight are limited only by the 3,250 x 800 mm (128.0 x 31.5 in) table and its 3,000 kg (6,614 lb) rating.
The spindle is a No.50 taper unit at 12,000 rpm with a 25 / 30 kW (33.5 / 40.2 hp) motor, continuous and 30 min rated, and a tool clamping force of 18 kN. Tool shank is ISO 50 or BT-50. The arm-type changer holds 32 tools up to 350 mm (13.8 in) long and 20 kg (44 lb).
Axis rates suit contouring more than positioning: 15 / 12 / 10 m/min (591 / 472 / 394 ipm) rapids and cutting feed to 8,000 mm/min. A Z axis nitrogen balancing system and spindle oil cooling are standard. Linear scales, coolant through the spindle and tool and workpiece measuring are listed as accessories to order. Control is the FANUC 31i-B5. The footprint is 7,410 x 5,360 mm (291.7 x 211.0 in) and the weight 28,000 kg (61,728 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 1,000 mm (39.4 in) |
| Z Axis Travel | 750 mm (29.5 in) |
| A Axis Range | -40° to +40° |
| B Axis Range | -40° to +40° |
| Distance Spindle Nose to Table | 100 to 850 mm (3.9 to 33.5 in) |
| Table Size | 3,250 x 800 mm (128.0 x 31.5 in) |
| T-Slots | 5 x 18 mm x 150 mm (number x width x distance from the center) |
| Table Height From Floor | 1,075 mm (42.3 in) |
| Max Table Load | 3,000 kg (6,614 lb) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Taper | 7/24 Taper, No.50 |
| Tool Clamping Force | 18 kN |
| Rapid Traverse Xyz | 15 / 12 / 10 m/min (591 / 472 / 394 ipm) |
| Cutting Feed Rate | 1-8,000 mm/min (up to 315 ipm) |
| Jog Feed Rate | 1,260 mm/min (50 ipm) |
| Tool Shank | Iso 50 Or Bt-50 |
| Tool Capacity | 32 |
| Max Tool Diameter Without Adjacent Tool | 250 mm (9.8 in) |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Tool Change Method | ARM |
| Spindle Motor Power | 25 / 30 kW (33.5 / 40.2 hp) (continuous / 30 min rated) |
| Axis Motors Xyz | 4 / 4 / 9 kW |
| Power Requirement | 45 kVA |
| Compressed Air | 6 kg/cm² |
| Coolant Tank Capacity | 400 L |
| Hydraulic Tank Capacity | 60 L |
| Lubrication Tank Capacity | 4 L |
| CNC Control | FANUC 31i-B5 |
| Machine Height | 3,778 mm (148.7 in) |
| Floor Area | 7,410 x 5,360 mm (291.7 x 211.0 in) |
| Machine Weight | 28,000 kg (61,728 lb) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,000 x 1,000 x 750 mm travels with A and B axes of -40° to +40°
- 12,000 rpm No.50 taper spindle with a 25 / 30 kW (33.5 / 40.2 hp) motor
- 3,250 x 800 mm (128.0 x 31.5 in) table rated for 3,000 kg (6,614 lb)
- 32 tools up to 20 kg (44 lb) each
- FANUC 31i-B5 control and Z axis nitrogen balancing system
Limitations
- Rotary travel is limited to 40° either side on both axes
- Rapids of 15 / 12 / 10 m/min (591 / 472 / 394 ipm)
- Linear scale system is an accessory to order, not standard
- Needs 7,410 x 5,360 mm of floor, 45 kVA and a foundation for 28,000 kg
Best For
Frequently Asked Questions
01
X is 3,000 mm (118.1 in), Y is 1,000 mm (39.4 in) and Z is 750 mm (29.5 in). The A axis and the B axis each travel from -40° to +40°. Spindle nose to table distance is 100 to 850 mm (3.9 to 33.5 in).
02
A 12,000 rpm spindle with a 7/24 No.50 taper, a 25 / 30 kW (33.5 / 40.2 hp) motor and 18 kN of tool clamping force. Tool shank is ISO 50 or BT-50, and spindle oil cooling is standard.
03
The floor space is 7,410 x 5,360 mm (291.7 x 211.0 in) and the machine height is 3,778 mm (148.7 in). Machine weight is 28,000 kg (61,728 lb) and the power requirement is 45 kVA.
04
The table measures 3,250 x 800 mm (128.0 x 31.5 in), stands 1,075 mm (42.3 in) high and is rated for 3,000 kg (6,614 lb). It has five 18 mm T-slots.
