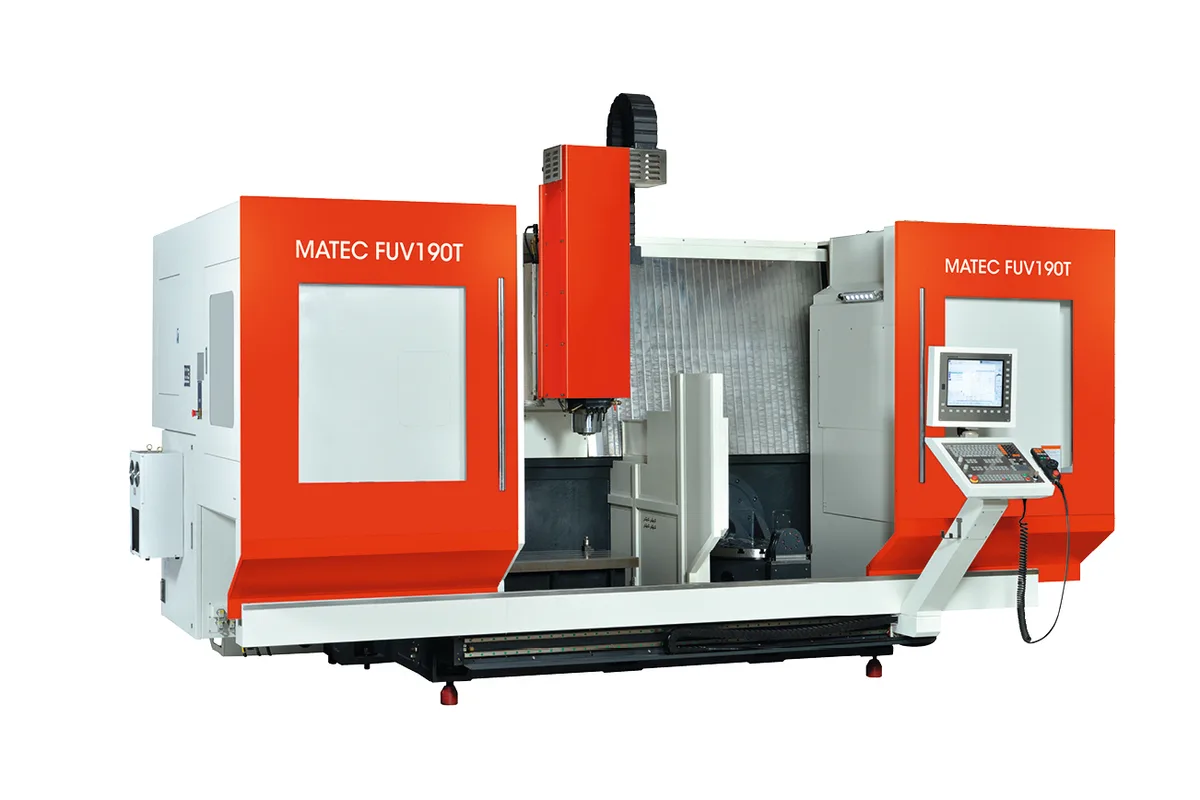

Matec FUV190T
Image: matec.de, Matec
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Rapid Traverse
Spindle Power
x axis travel
How much does the Matec FUV190T cost?
Price estimate
We do not have a price for the Matec FUV190T that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 1,900 mm (74.8 in) of X travel, the Matec FUV190T is the longer of MATEC's two travelling column 5-axis machining centres. The extra length goes entirely into the rigid table, which measures 900 x 500 mm and is rated for 1,600 kg (3,527 lb). Y and Z stay at 540 mm (21.3 in) and 460 mm (18.1 in).
Beside the rigid table sits a swivel turntable: a Ø 650 mm (Ø 25.6 in) face plate, B axis tilt from -50° to +110°, a full 360° in C, and a limit of 300 kg (661 lb) for the workpiece. That split defines how the machine is used. A long 3-axis part can be clamped on the rigid table, or the column can alternate between the two tables in pendulum operation while the operator reloads the idle side.
The cutting side is modest for a machine of 18,000 kg (39,683 lb): 12,000 rpm, 15 kW (20.1 hp), HSK63 or SK40 tooling and 30 m/min (1,181 ipm) rapids. MATEC lists faster HSK63 spindles as options. The standard 48-tool magazine can be replaced by one with 60 or 120 pockets, and it is fed from outside the work area.
On the floor the FUV190T needs 4,600 x 2,600 mm and 3,000 mm (118.1 in) of height. T-slots are 18 H7. The standard control is the HEIDENHAIN TNC 640 HSCI in a fully interpolable 5-axis version, and SIEMENS ONE is the listed alternative.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,900 mm (74.8 in) |
| Y Axis Travel | 540 mm (21.3 in) |
| Z Axis Travel | 460 mm (18.1 in) |
| C Axis Range | 360° |
| B Axis Range | -50° | +110° |
| Distance Spindle Nose | 150 – 610 mm (5.9 – 24.0 in) |
| Spindle Taper | HSK63 | SK40 |
| Max Spindle Speed | 12,000 rpm |
| Spindle Motor Power | 15 kW (20.1 hp) |
| Tool Capacity | 48 (60 | 120) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Rapid Traverse Rate | 30 m/min (1,181 ipm) |
| Table Length | 900 mm (35.4 in) (rigid table) |
| Table Width | 500 mm (19.7 in) (rigid table) |
| Swivel Table Clamping Surface | Ø 650 mm (Ø 25.6 in) |
| T-Slots | 18 H7 mm |
| Max Table Load | 1,600 kg (3,527 lb) (rigid table) |
| Swivel Table Load | 300 kg (661 lb) (workpieces up to a total weight of) |
| Machine Length | 4,600 mm (181.1 in) |
| Machine Width | 2,600 mm (102.4 in) |
| Machine Height | 3,000 mm (118.1 in) |
| Machine Weight | 18,000 kg (39,683 lb) |
| CNC Control | HEIDENHAIN TNC 640 HSCI (standard); SIEMENS ONE (option) |
Specifications sourced from matec.de — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,900 mm (74.8 in) of X travel with a 900 x 500 mm rigid table
- Rigid table rated for 1,600 kg (3,527 lb)
- Swivel turntable with Ø 650 mm (Ø 25.6 in) face plate for full 5-axis work on the same machine
- Machine width of only 2,600 mm (102.4 in)
- Standard HEIDENHAIN TNC 640 HSCI control in a fully interpolable 5-axis version
Limitations
- The swivel table carries only 300 kg (661 lb), no more than on the shorter FUV170T
- Spindle power is 15 kW (20.1 hp) and no torque figure is published
- Z travel of 460 mm (18.1 in) limits part height on both tables
- Rapid traverse of 30 m/min (1,181 ipm) over a 1,900 mm (74.8 in) axis
Best For
Frequently Asked Questions
01
X travel is 1,900 mm (74.8 in), with 540 mm (21.3 in) in Y and 460 mm (18.1 in) in Z. The rigid table measures 900 x 500 mm and carries 1,600 kg (3,527 lb). MATEC describes 3-axis machining of long components as one of the intended uses, alongside 5-axis work on the swivel table.
02
It has a face plate of Ø 650 mm (Ø 25.6 in), tilts from -50° to +110° in the B axis and turns a full 360° in C. MATEC rates it for workpieces up to a total weight of 300 kg (661 lb). Direct rotation encoders are fitted, and simultaneous 5-axis machining is possible.
03
When the 3-axis side of the work needs it. The FUV170T has 1,700 mm of X travel and a 700 x 500 mm rigid table for 1,200 kg. The FUV190T adds length: 1,900 mm of X, a 900 x 500 mm table and 1,600 kg. The 5-axis side, spindle and magazine do not change, and the FUV170T is 4,400 mm long against 4,600 mm.
04
The HEIDENHAIN TNC 640 HSCI with an HR 510 handwheel, glass scales in all linear axes, direct encoders in the rotation axes and temperature compensation are on the standard equipment list. SIEMENS ONE is the optional control, and a touch probe, laser tool measurement and a roof for the enclosure are options.
