Vision Wide Vertical Machining Centers (VMC)

Vision Wide HF-5035 / HF-5042

Q: How much does the Vision Wide HF-5035 / HF-5042 cost?

The price estimate for the Vision Wide HF-5035 / HF-5042 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-hf-5035-hf-5042#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

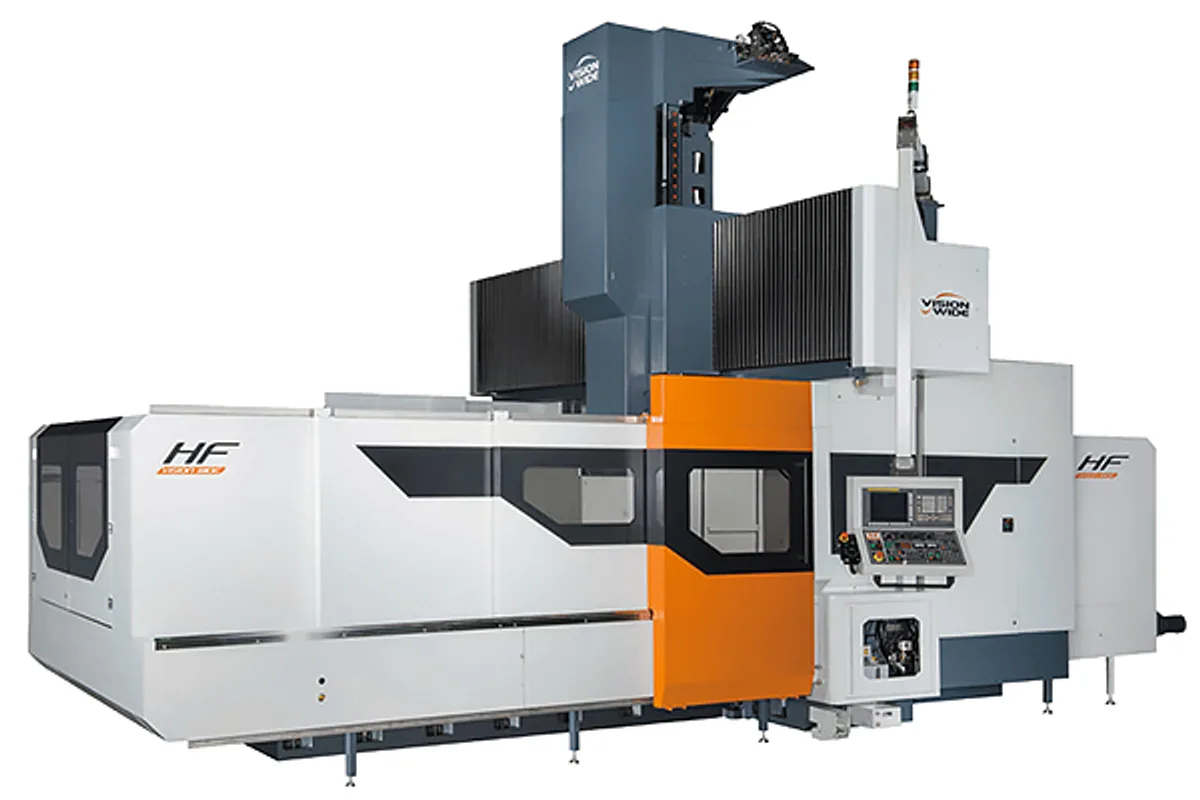

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

5,000×3,000 mm (196.9×118.1 in)

x axis travel

5,100 mm (200.8 in)

y axis travel

3,500/ 4,200 mm (137.8/ 165.4 in)

z axis travel box way single ballscrew

920 / 1,020 mm (36.2 / 40.2 in)(Opt.)

z axis travel linear way enclosed box ram dual ballscrews

1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)

max table load

24,000 kg (52,910 lb)

How much does the Vision Wide HF-5035 / HF-5042 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide HF-5035 / HF-5042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Tool center point compensation is the feature that makes the Vision Wide HF-5035 / HF-5042 practical as an automatic five-face machine. Without it, every attachment head would need its own set of offsets, measured and entered each time a head is changed.

Vision Wide names three developments for the HF: tool center point compensation, an auto multi-angle head attachment, and an auto tool change system. Together they let one program move between the vertical spindle, a 90º head and angled positions while the control keeps track of where the tool tip is. The feature list adds an AC 3-axis mechanical coordinates system.

The machine under those functions is large. X travel is 5,100 mm (200.8 in). Y travel is 3,500 mm (137.8 in) on the HF-5035 and 4,200 mm (165.4 in) on the HF-5042. The table measures 5,000×3,000 mm (196.9×118.1 in) and carries 24,000 kg (52,910 lb).

A part that needs this machine is typically a gearbox case, a press frame or a large mold base with features on all sides. Rapid traverse in X/Y is 10 m/min, cutting feed 1-7,000 mm/min, and the spindle motor 22/26 kW (29.5/34.9 hp).

Full Specifications

Parameter	Value
X Axis Travel	5,100 mm (200.8 in)
Y Axis Travel	3,500/ 4,200 mm (137.8/ 165.4 in)
Z Axis Travel Box Way Single Ballscrew	920 / 1,020 mm (36.2 / 40.2 in)(Opt.)
Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews	1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)
Table Size	5,000×3,000 mm (196.9×118.1 in)
Max Table Load	24,000 kg (52,910 lb)
Spindle Power Cont 30 Min	22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm (Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xy	10 m/min
Rapid Traverse Z Box Way or Linear Way	15 m/min
Rapid Traverse Z Enclosed Box Ram	12 m/min
Tool Capacity Vertical Tool Change	32 / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Tool center point compensation developed for the series
Auto multi-angle head attachment with auto tool change
5,000×3,000 mm (196.9×118.1 in) table for 24,000 kg (52,910 lb)
Y travel of 3,500 mm (137.8 in) or 4,200 mm (165.4 in)

Limitations

The page gives no detail on how the compensation is set up or checked
X/Y rapid traverse of 10 m/min
Standard gear spindle speed is 4,000 rpm

Best For

Gearbox cases and press frames with features on every side Large mold bases up to 24,000 kg (52,910 lb) Programs that switch between vertical, 90º and angled cutting

Frequently Asked Questions

01 What does tool center point compensation do on the Vision Wide HF-5035?

Vision Wide says it developed tool center point compensation, auto multi-angle head attachment and an auto tool change system to complete auto 5-face machining. In general terms it lets the control account for the head's geometry so the tool tip stays where the program expects.

02 What are the travels of the HF-5035 / HF-5042?

X travel is 5,100 mm (200.8 in). Y travel is 3,500/ 4,200 mm (137.8/ 165.4 in) for the HF-5035 and HF-5042. Z is 920 mm on the standard box way head, with longer strokes optional.

03 How much does the HF-5035 table carry?

24,000 kg (52,910 lb) on a 5,000×3,000 mm (196.9×118.1 in) table. The four-metre HF-4035 carries 20,000 kg (44,092 lb).

04 What control does the HF-5035 use?

The FANUC 0iMF PLUS controller is on the standard accessory list for the HF series. Ask Vision Wide which optional controls are offered with the five-face functions.
