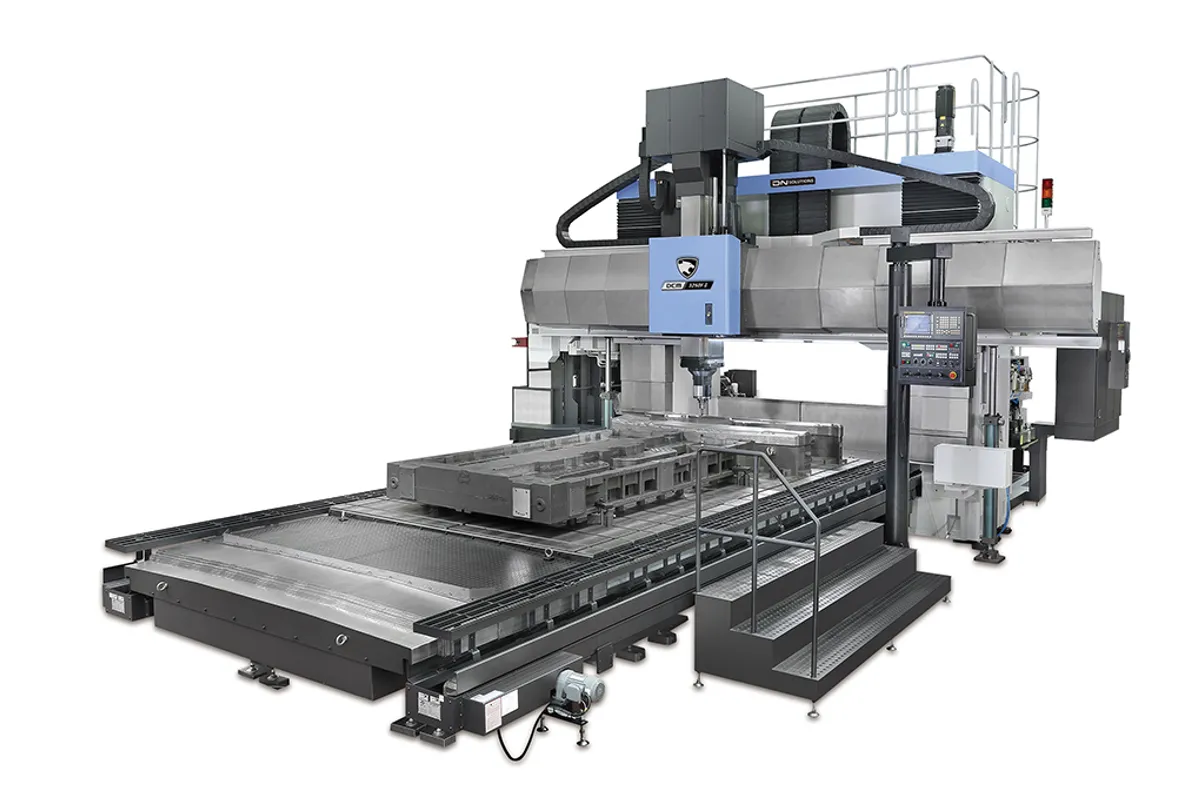

DN Solutions DCM 3250 F II

$1,100,000 - $1,500,000 Updated 2026-03-19

Key Specifications

Table Size

5,100 x 2,700 mm (201 x 106 in)

x axis travel

5,250 mm (207 in)

y axis travel

3,700 mm (146 in)

z axis travel

700 mm (28 in)

table load capacity

33,000 kg (72,752 lb)

rapid traverse x

16 m/min (630 in/min)

Overview

The DN Solutions DCM 3250 F II marks the step up to DN Solutions' wider-column DCM 32-series platform. Where the 27-series machines have 2,200 mm table width, the 32-series widens to 2,700 mm and increases Y-axis travel to 3,700 mm. That extra width matters when you're machining wide mold halves, broad structural castings, or die blocks that don't fit between the narrower 27-series columns.

Travel comes in at 5,250 x 3,700 x 700 mm with a 5,100 x 2,700 mm table rated for 33,000 kg. At 82,000 kg machine weight, the DCM 3250 F II has the mass to dampen vibrations during aggressive cutting on the heaviest workpieces. Rapids hold at 16/20/15 m/min on X/Y/Z. The W-axis crossrail adds independent depth positioning above the 700 mm Z-stroke, and auto-change head attachments handle roughing, finishing, and angular machining configurations.

The 32-series column spacing is what distinguishes this machine from the DCM 2750 F II, which shares the same X-travel but with narrower Y and table width. If your parts are long and narrow, the 27-series covers them. If they're wide — large automotive hood molds, wide press bolsters, broad marine components — the 32-series gives you the clearance. The DSQ I/II/III functions and ram-type spindle options carry over from the rest of the DCM platform. At 13,375 x 8,230 mm footprint, plan your foundation and bay space accordingly.

Full Specifications

Parameter	Value
X Axis Travel	5,250 mm (207 in)
Y Axis Travel	3,700 mm (146 in)
Z Axis Travel	700 mm (28 in)
Table Size	5,100 x 2,700 mm (201 x 106 in)
Table Load Capacity	33,000 kg (72,752 lb)
Rapid Traverse X	16 m/min (630 in/min)
Rapid Traverse Y	20 m/min (787 in/min)
Rapid Traverse Z	15 m/min (591 in/min)
Machine Length	13,375 mm (527 in)
Machine Height	6,700 mm (264 in)
Machine Width	8,230 mm (324 in)
Machine Weight	82,000 kg (180,779 lb)
X Axis Travel Distance	5250 mm
Y Axis Travel Distance	3700 mm
Z Axis Travel Distance	700 mm
Metric	IMPERIAL
Capacity	Table to spindle nose
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Table	Table LengthTable WidthMaximum Workpiece weight
Dimensions	LengthHeightWidthWeight
Favorites	DCM 4280F

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

3,700 mm Y-travel and 2,700 mm table width handle wide workpieces that don't fit in the 27-series machines
33,000 kg table capacity supports the heaviest wide-format mold blocks and structural castings
82,000 kg machine mass provides exceptional stability during heavy cutting on large parts
Same 5,250 mm X-travel as the DCM 2750 F II but with wider column spacing for broader parts
W-axis crossrail and auto-change heads provide full die/mold machining flexibility
DSQ I/II/III functions deliver specialized contouring and die-spotting cycles

Limitations

82,000 kg weight and 13.4-meter length require engineered foundation and dedicated facility space
8,230 mm machine width is 500 mm wider than 27-series, requiring more lateral floor space
700 mm Z-stroke alone may limit deep-cavity work without W-axis supplementation
Higher cost than 27-series machines with equivalent X-travel due to wider construction

Best For

Automotive mold shops producing wide hood molds, roof molds, and large interior panel tooling Press builders machining wide bolsters, slides, and crown components Marine manufacturers machining broad hull section molds and structural plates Any manufacturer with wide-format workpieces that exceed the 27-series 2,200 mm table width Shops needing both 5-meter X-reach and 2.7-meter table width in a single machine

Frequently Asked Questions

01 What does the DN Solutions DCM 3250 F II cost?

New DCM 3250 F II machines typically run $1,100,000-$1,500,000 depending on configuration. The wider 32-series construction commands a premium over the 27-series machines with equivalent X-travel.

02 How does the DCM 3250 F II compare to the DCM 2750 F II?

Both have 5,250 mm X-travel, but the 3250 F II offers 3,700 mm Y (vs 3,200 mm), 2,700 mm table width (vs 2,200 mm), and 33,000 kg table capacity (vs 25,000 kg). The 3250 weighs 82,000 kg versus 68,000 kg. Choose the 3250 when your parts are wide; the 2750 when they're narrow.

03 Is a 5-axis version available?

Yes, the DCM 3250 U adds a universal head for 5-axis machining capability. The U variant enables simultaneous 5-axis contouring for complex wide-format mold surfaces.

04 What column spacing defines the 32-series versus the 27-series?

The 32-series has wider column spacing that allows a 2,700 mm table width versus the 27-series' 2,200 mm. The Y-axis travel increases to 3,700 mm versus 3,200 mm. The wider construction adds machine mass but provides clearance for broader workpieces.
