DN Solutions Vertical Machining Centers (VMC)

DN Solutions VM 960

Est. $250,000 - $400,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

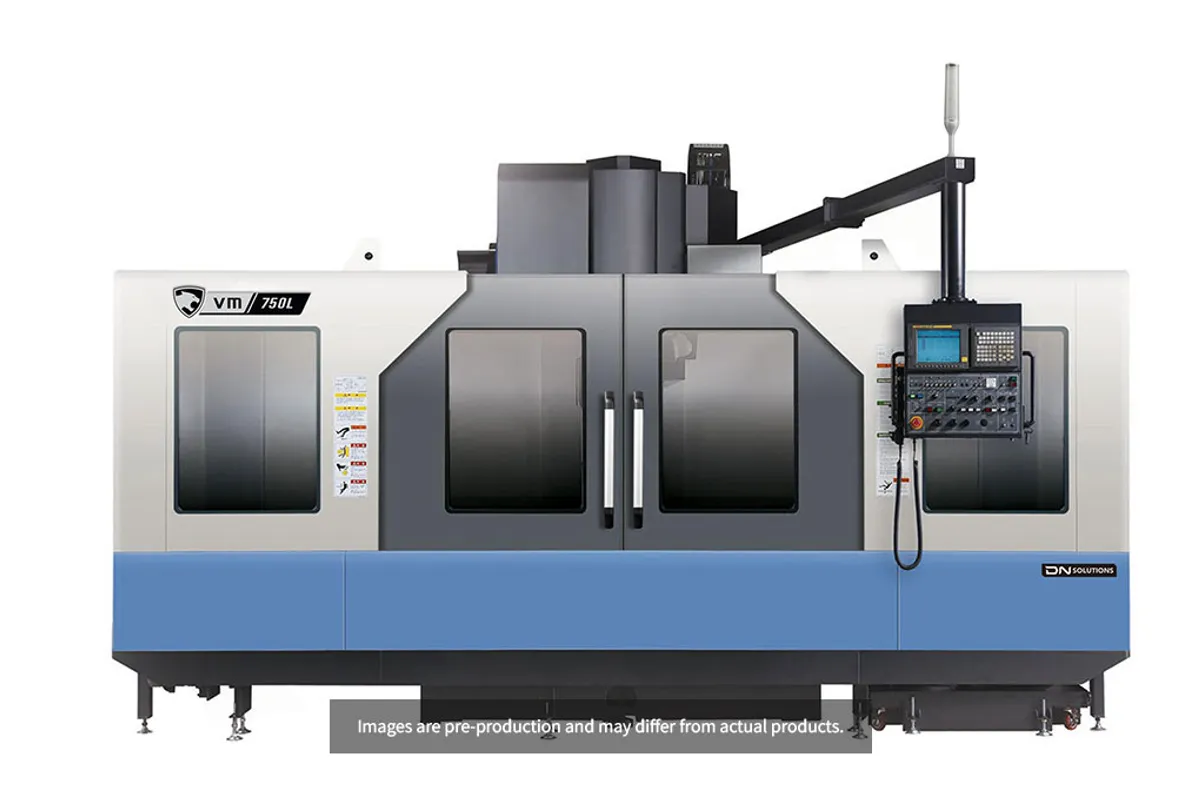

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

2,000 mm (79 in)

Y Travel

960 mm (38 in)

Z Travel

800 mm (31 in)

Max Spindle

6,000 rpm

Table Size

2,400 × 950 mm (94 × 37 in)

Rapid Traverse

16 m/min (630 ipm)

How much does the DN Solutions VM 960 cost?

Estimated price range

Est.$250,000 - $400,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions VM 960 is a large-bed die and mould vertical machining center with 2,000 mm (79 in) of X travel and 960 mm (38 in) of Y. Z travel is 800 mm (31 in). It carries 4,000 kg (8,818 lb) on a 2,400 × 950 mm (94 × 37 in) table.

Two details of that table matter in practice. First, it is longer than the X stroke, 2,400 mm against 2,000 mm, so a block can sit anywhere along it but only a 2,000 mm length is machined in one clamping; the VM 960 L closes most of that gap with 2,400 mm (94 in) of X on a 2,600 × 950 mm (102 × 37 in) table. Second, the Y stroke of 960 mm slightly exceeds the 950 mm table width, so the spindle reaches both edges of the table.

The machine is built heavy for its envelope. At 20,000 kg (44,092 lb) it weighs 35% more than the VM 750 L, which is 14,800 kg (32,628 lb) and offers 1,800 mm (71 in) by 750 mm (30 in). Mass of that order damps roughing cuts in tool steel, and it also slows the axes: rapid traverse is 16 m/min (630 ipm), where the VM 750 L manages 20 m/min (787 ipm).

The spindle in the table is 6,000 rpm and 18.5 kW (25 hp), the same pair of figures as the VM 750. DN Solutions states that a dual contact spindle is standard across the series and lists 8,000 r/min gear-type and 12,000 r/min built-in spindles alongside the 6,000 r/min one. Its mould-oriented control functions are contour control for high speed and precision, tool monitoring and optimal feed control. Before ordering, ask for the spindle torque, the taper and the magazine size, none of which the table states, and check the site for a machine 4,846 mm (191 in) by 6,400 mm (252 in) on the floor and 3,545 mm (140 in) tall.

Full Specifications

Parameter	Value
X-Axis Travel	2,000 mm (79 in)
Y-Axis Travel	960 mm (38 in)
Z-Axis Travel	800 mm (31 in)
Rapid Traverse Rate	16 m/min (630 ipm)
Max Spindle Speed	6,000 rpm
Spindle Motor Power	18.5 kW (25 hp)
Table Size	2,400 × 950 mm (94 × 37 in)
Max Table Load	4,000 kg (8,818 lb)
Floor Space Required	4,846 × 6,400 × 3,545 mm (191 × 252 × 140 in)
Machine Weight	20,000 kg (44,092 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

960 mm (38 in) of Y travel covers the full 950 mm (37 in) table width
4,000 kg (8,818 lb) table load on a 2,400 × 950 mm (94 × 37 in) table
20,000 kg (44,092 lb) machine weight, 35% more than the VM 750 L, for stability in heavy roughing
800 mm (31 in) of Z for deep cavities and tall mould bases
Dual contact spindle is standard for the series; the table lists 18.5 kW (25 hp)

Limitations

Rapid traverse is 16 m/min (630 ipm), down from 20 m/min (787 ipm) on the VM 750 and VM 750 L
X travel of 2,000 mm (79 in) is shorter than the 2,400 mm (94 in) table, so the full table length cannot be machined in one setup
6,000 rpm listed spindle speed limits feed rates with small finishing cutters
Spindle power is the same 18.5 kW (25 hp) as the smaller VM 750; the VM 1260 lists 22 kW (29 hp)

Best For

Large mould bases and die sets up to 2,000 × 960 mm (79 × 38 in) Blocks and plates weighing up to 4,000 kg (8,818 lb) with fixturing Heavy steel roughing where a 20,000 kg (44,092 lb) frame helps Deep-cavity tooling that needs 800 mm (31 in) of Z

Frequently Asked Questions

01 What is the working envelope of the VM 960?

X 2,000 mm (79 in), Y 960 mm (38 in), Z 800 mm (31 in). The table is 2,400 × 950 mm (94 × 37 in) and is rated for 4,000 kg (8,818 lb). Because the table is longer than the X travel, long workpieces can be supported along their whole length even though only 2,000 mm is cut per setup.

02 VM 960 or VM 960 L: which one?

The longer machine adds X travel and a little table. The VM 960 L has 2,400 mm (94 in) of X, a 2,600 × 950 mm (102 × 37 in) table, a 4,500 kg (9,921 lb) rating and weighs 21,000 kg (46,297 lb). The VM 960 has 2,000 mm (79 in) of X, a 4,000 kg (8,818 lb) rating and weighs 20,000 kg (44,092 lb). Y, Z, spindle and rapids match, so choose on part length and on the floor width available.

03 How does the VM 960 differ from the VM 1260?

The VM 1260 is a class larger: 2,500 × 1,260 × 900 mm (98 × 50 × 35 in) of travel, an 8,000 kg (17,637 lb) table, a 22 kW (29 hp) spindle and a machine weight of 31,000 kg (68,343 lb), with rapids of 12 m/min (472 ipm). The VM 960 offers 2,000 × 960 × 800 mm (79 × 38 × 31 in), 4,000 kg (8,818 lb), 18.5 kW (25 hp) and 16 m/min (630 ipm).

04 Which spindle options does DN Solutions list for the VM 960?

The table shows 6,000 rpm and 18.5 kW (25 hp). In the series description, DN Solutions lists gear-type spindles at 6,000 and 8,000 r/min, a built-in type at 12,000 r/min, and a dual contact spindle as standard. Which of the faster spindles can be fitted to this model is not stated, so raise it with the supplier if finishing speed matters.

05 What are the installation dimensions and weight of the VM 960?

4,846 × 6,400 × 3,545 mm (191 × 252 × 140 in) as length, width and height, and 20,000 kg (44,092 lb) for the machine. With a full 4,000 kg (8,818 lb) on the table, the foundation sees the two together, so have the floor checked before delivery.
