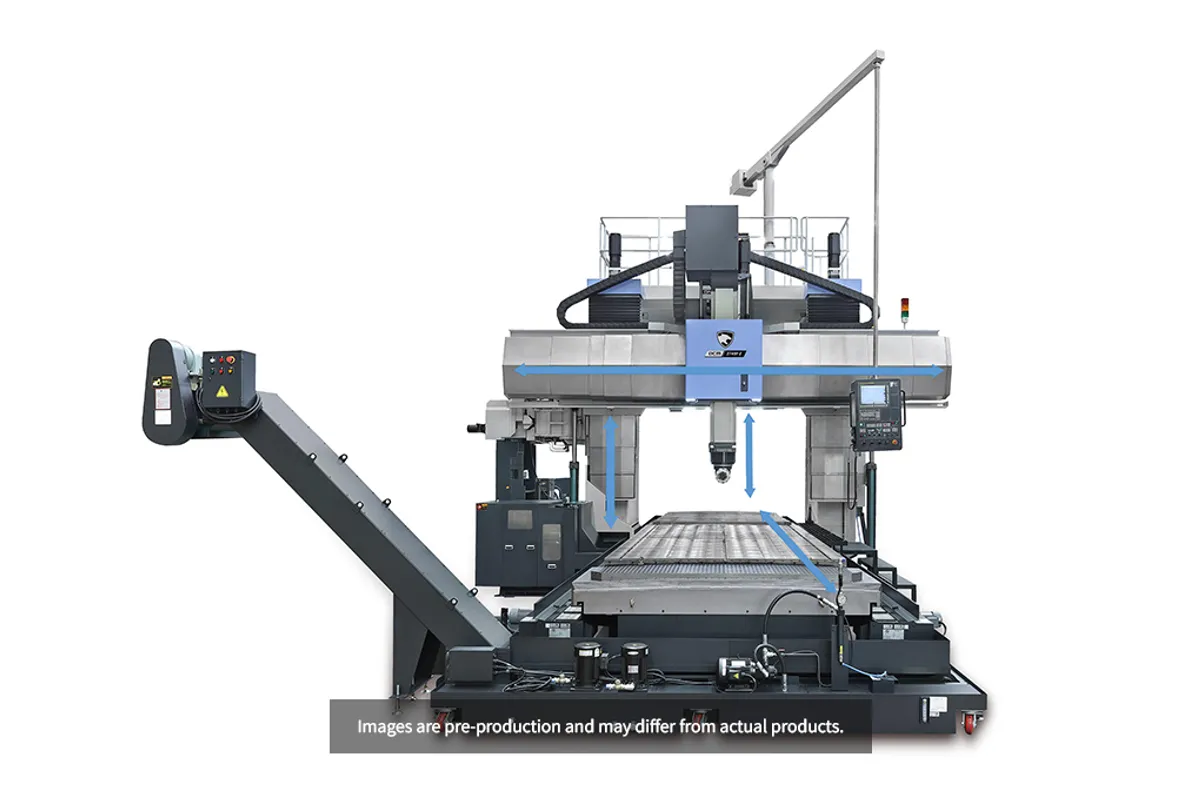

DN Solutions DCM 2760 F II

$1,000,000 - $1,400,000 Updated 2026-03-19

Key Specifications

Table Size

6,100 x 2,200 mm (240 x 87 in)

x axis travel

6,250 mm (246 in)

y axis travel

3,200 mm (126 in)

z axis travel

700 mm (28 in)

table load capacity

30,000 kg (66,139 lb)

rapid traverse x

16 m/min (630 in/min)

Overview

The DN Solutions DCM 2760 F II pushes the 27-series column spacing out to 6,250 mm of X-travel, making it the second-longest machine in the DCM 27xx lineup before the massive 2780 F II. The 6,100 x 2,200 mm table handles workpieces up to 30,000 kg — that's 30-ton capacity for the largest molds, dies, and structural components in heavy industry.

This is a machine that serves a specific niche: manufacturers who regularly work on parts in the 5-to-6-meter length class. Ship propeller mold halves, large wind turbine blade tooling sections, heavy mining equipment frames, and the longest automotive progressive dies all fall into this envelope. The W-axis crossrail adds independent depth positioning above the 700 mm Z-stroke, and the auto-change head system lets you swap between roughing, finishing, and angular configurations programmatically.

At 71,000 kg and 15,710 mm in length, the DCM 2760 F II is serious industrial equipment. Rapids hold at 16/20/15 m/min on X/Y/Z despite the mass — credit to DN Solutions' servo sizing and ballscrew design. The DSQ I/II/III functions handle die-spotting, quill operations, and precision contouring. Ram-type spindle options let you configure the machine for your primary application. For shops stepping up from the DCM 2750 F II or replacing aging planer mills, the 2760 F II provides modern CNC capability at the 6-meter scale.

Full Specifications

Parameter	Value
X Axis Travel	6,250 mm (246 in)
Y Axis Travel	3,200 mm (126 in)
Z Axis Travel	700 mm (28 in)
Table Size	6,100 x 2,200 mm (240 x 87 in)
Table Load Capacity	30,000 kg (66,139 lb)
Rapid Traverse X	16 m/min (630 in/min)
Rapid Traverse Y	20 m/min (787 in/min)
Rapid Traverse Z	15 m/min (591 in/min)
Machine Length	15,710 mm (619 in)
Machine Height	6,700 mm (264 in)
Machine Width	7,730 mm (304 in)
Machine Weight	71,000 kg (156,528 lb)
X Axis Travel Distance	6250 mm
Y Axis Travel Distance	3200 mm
Z Axis Travel Distance	700 mm
Metric	IMPERIAL
Capacity	Table to spindle nose
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Table	Table LengthTable WidthMaximum Workpiece weight
Dimensions	LengthHeightWidthWeight
Favorites	DCM 4280F

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

6,250 mm X-travel handles 6-meter-class workpieces that exceed most double-column machines' reach
30,000 kg table capacity supports the heaviest industrial castings and mold blocks
71,000 kg machine mass ensures stability during the most aggressive cutting operations
W-axis crossrail plus 700 mm Z-stroke provides flexible depth positioning across the long envelope
Auto-change head system maintains productivity through automated roughing-to-finishing transitions
Same proven DCM platform as smaller models with proportionally scaled construction

Limitations

15.7-meter length demands a large dedicated bay with engineered foundation
71,000 kg weight requires heavy-lift crane capacity for installation
Substantial capital investment for a machine primarily justified by 6-meter-class work
700 mm Z-stroke may need W-axis supplementation for deep-cavity applications

Best For

Wind energy mold shops machining large blade mold sections and hub components Shipbuilding facilities producing propeller molds and marine structural components Automotive die shops making the longest progressive dies for body-in-white stampings Heavy equipment manufacturers machining 6-meter-class structural frames and housings Shops replacing aging planer mills with modern CNC double-column capability

Frequently Asked Questions

01 What does the DN Solutions DCM 2760 F II cost?

New DCM 2760 F II machines typically run $1,000,000-$1,400,000 depending on spindle configuration, head attachments, and options. Foundation engineering and installation add to the total project cost.

02 How does the DCM 2760 F II compare to the DCM 2780 F II?

The 2780 F II jumps to 8,250 mm X-travel with an 8,100 mm table and 40,000 kg capacity. It's for the absolute longest workpieces. The 2760 F II covers 6-meter work at a lower price and smaller footprint. Choose the 2780 only when you consistently exceed 6 meters.

03 What foundation requirements should I plan for?

At 71,000 kg and 15.7 meters long, plan for a reinforced concrete foundation 600-1000 mm thick, engineered for the specific load distribution. Work with a structural engineer and DN Solutions' installation team for the exact specification matched to your soil conditions.

04 Is a 5-axis version available?

Yes, the DCM 2760 U adds a universal head for 5-axis machining. The U version enables simultaneous 5-axis contouring for complex die and mold surfaces that require multi-axis toolpath control.
