Campro PV-5226

Q: How much does the Campro PV-5226 cost?

The price estimate for the Campro PV-5226 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-pv-5226#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

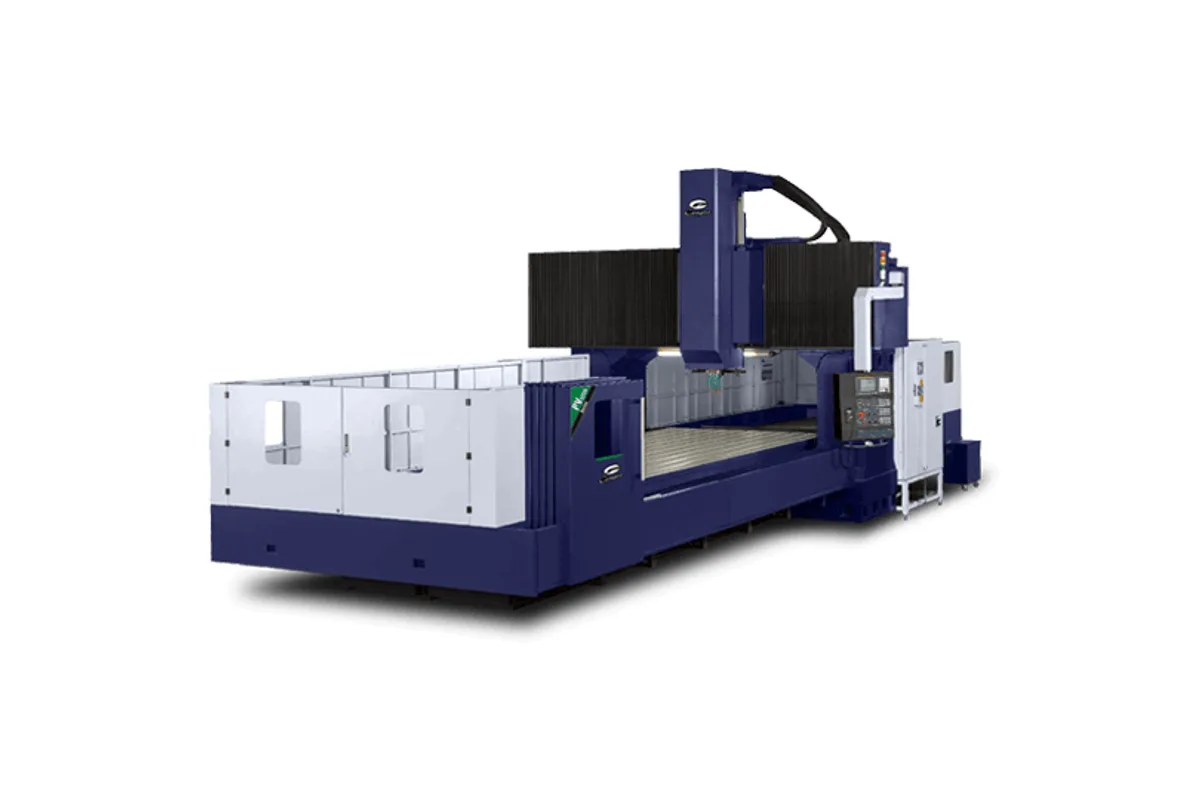

Campro PV-5226 double column machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm (Gear-head spindle)

Spindle Taper

7/24 taper No.50

Tool Capacity

32 (OPT: 40 / 60)

Table Size

5,000 × 2,200 mm (196.8 in x 86.6 in)

Spindle Power

15 / 18.5 kW (25 HP)

x axis travel

5,200 mm (204.7 in)

How much does the Campro PV-5226 cost?

Price estimate

Uncertain

We do not have a price for the Campro PV-5226 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro PV-5226 is the largest machine the maker lists. Campro describes its double column family as reaching travels of 5,200 mm (204.7 in) by 2,600 mm (102.3 in), and this is the model those figures belong to. Z travel is 800 mm (31.4 in), and the table of 5,000 × 2,200 mm (196.8 in x 86.6 in) is rated for 16,000 kg (35,273 lb).

Everything about it is the upper limit of the PV series. The columns are 2,700 mm (106.2 in) apart. The machine weighs 48,000 kg (105,821 lb). The floor plan is 12,800 × 5,500 mm (503 in x 216 in). Campro states that the PV-5226 is equipped with 3 guideways on the X-axis to carry the table.

What does not scale is the cutting end. The spindle is the same 6,000 rpm gear-head unit, 15 / 18.5 kW (25 HP) with a No.50 taper, that Campro fits to the PV-2216, a machine with a 6,000 kg (13,227 lb) table. Rapid feedrate is 10 m/min in X and 12 m/min in Y and Z. On a part that really needs this envelope, the hours go into traversing and into large-area milling with one modest spindle. This is a machine for accuracy over a big part, not for peak removal rate.

Campro says the structure accepts different milling heads, and Z travel can be ordered at 1,000 mm (39.3 in), which raises the spindle nose range to 250~1,250 mm (9.8 in ~ 49.2 in). Twin chip screws and roller type linear guideways on X and Y are listed. The standard magazine is a 32-tool chain type with a dual arm; 40 and 60 are options. Power capacity is 40 kVA.

Full Specifications

Parameter	Value
X Axis Travel	5,200 mm (204.7 in)
Y Axis Travel	2,600 mm (102.3 in)
Z Axis Travel	800 mm (31.4 in); OPT: 1,000 mm (39.3 in)
Distance Between Columns	2,700 mm (106.2 in)
Distance Spindle Nose to Table	200~1,000 mm (7.8 in ~ 39.3 in); OPT: 250~1,250 mm (9.8 in ~ 49.2 in)
Table Size	5,000 × 2,200 mm (196.8 in x 86.6 in)
Max Table Load	16,000 kg (35,273 lb)
T-Slots	22 mm x 11 (0.86 in x 11) (W x No.)
Max Spindle Speed	6,000 rpm (Gear-head spindle)
Spindle Motor Power	15 / 18.5 kW (25 HP)
Spindle Taper	7/24 taper No.50
Tool Shank	BT-50
Tool Capacity	32 (OPT: 40 / 60)
Max Tool Diameter (full magazine)	Ø125 mm (Ø4.9 in)
Max Tool Diameter (adjacent pockets empty)	Ø215 mm (Ø8.4 in)
Max Tool Length	350 mm (13.7 in)
Max Tool Weight	20 kg (44 lb)
Rapid Traverse Xyz	10 / 12 / 12 m/min (393.7 / 472.4 / 472.4 in/min)
Cutting Feed Rate	1~8,000 mm/min (314.9 in/min)
Floor Plan	12,800 × 5,500 mm (503 in x 216 in) (W × D)
Machine Weight	48,000 kg (105,821 lb)
Machine Height	4,200 mm (165 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	40 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Largest envelope in the range: 5,200 mm (204.7 in) × 2,600 mm (102.3 in) × 800 mm (31.4 in)
16,000 kg (35,273 lb) table load on a 5,000 × 2,200 mm (196.8 in x 86.6 in) table
3 guideways on the X-axis and 2,700 mm (106.2 in) between columns
Optional Z travel of 1,000 mm (39.3 in) and provision for other milling heads
Power capacity of 40 kVA, unchanged from the smaller PV machines

Limitations

Spindle of 15 / 18.5 kW (25 HP), the same as on the PV-2216
Rapids of 10 / 12 / 12 m/min across a 5,200 mm stroke
48,000 kg (105,821 lb) and a 12,800 × 5,500 mm (503 in x 216 in) floor plan
Tools limited to 20 kg (44 lb) and 350 mm (13.7 in) without a special head

Best For

The largest dies, molds and machine structures up to 16,000 kg (35,273 lb) Aerospace and automotive tooling that fills a 5,000 × 2,200 mm table Long wide weldments machined in one setup Precision machining of big parts where removal rate is secondary

Frequently Asked Questions

01 How big is the PV-5226?

Travels are 5,200 mm (204.7 in) in X, 2,600 mm (102.3 in) in Y and 800 mm (31.4 in) in Z. The table is 5,000 × 2,200 mm (196.8 in x 86.6 in). The machine itself needs 12,800 × 5,500 mm (503 in x 216 in) of floor, stands 4,200 mm (165 in) high and weighs 48,000 kg (105,821 lb).

02 What is the table load of the PV-5226?

16,000 kg (35,273 lb), the highest of any Campro machine listed. The table has eleven T-slots 22 mm wide, and Campro states that the PV-5226 is equipped with 3 guideways on the X-axis. The PV-5221 with the same X travel is rated 12,000 kg (26,455 lb).

03 Is the spindle of the PV-5226 larger than on other PV models?

No. The table lists the same gear-head spindle as the rest of the series: 6,000 rpm, 15 / 18.5 kW (25 HP), 7/24 taper No.50, BT-50 shank. Campro says customers can adopt different milling heads, so heavier or angled cutting has to be covered by an optional head agreed with the maker.

04 How fast does the PV-5226 traverse?

Rapid feedrate is 10 / 12 / 12 m/min (393.7 / 472.4 / 472.4 in/min) in X / Y / Z, and the cutting feedrate range is 1~8,000 mm/min (314.9 in/min). The shorter PV-4226 is listed at 12 / 15 / 15 m/min.
