Campro CPV-1400B-BT50

Q: How much does the Campro CPV-1400B-BT50 cost?

The price estimate for the Campro CPV-1400B-BT50 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpv-1400b-bt50#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

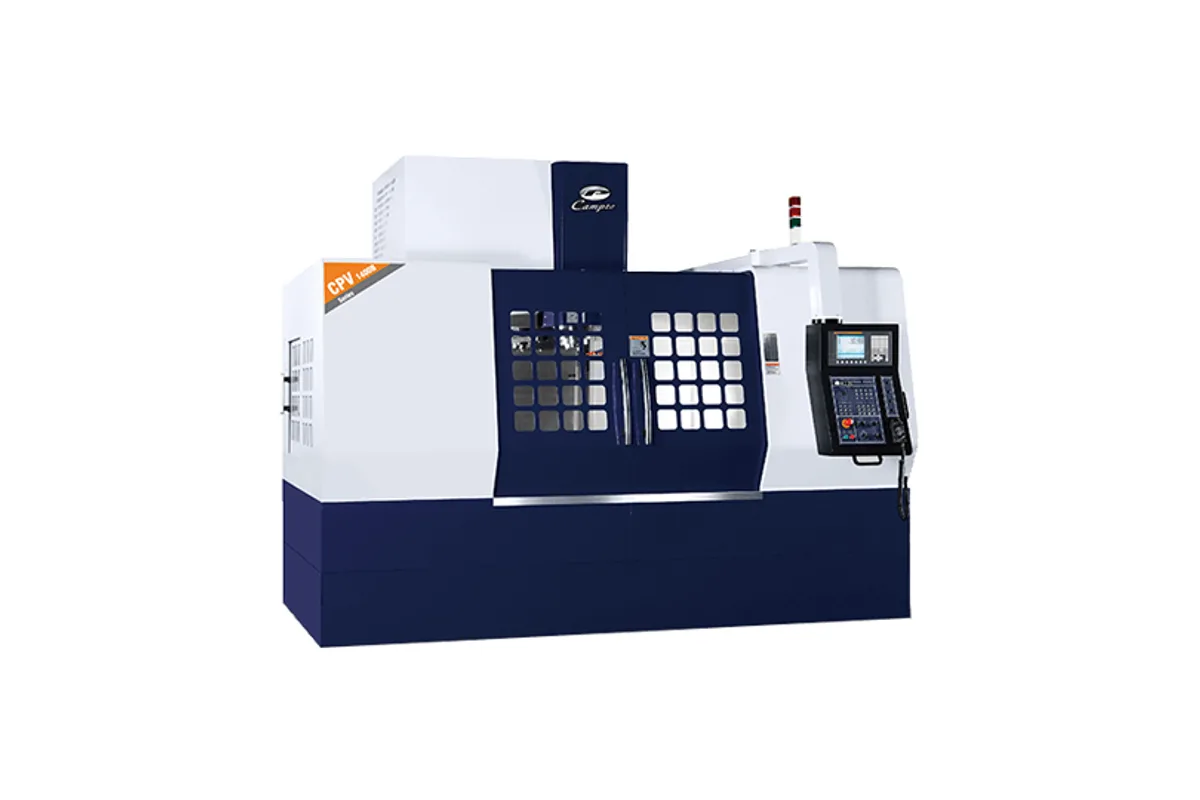

Campro CPV-1400B-BT50 vertical machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm

Spindle Taper

7/24 taper No.50

Tool Capacity

Table Size

1,550 × 700 mm (61 in x 27.5 in)

Spindle Power

11 / 15 kW (20 HP)

x axis travel

1,400 mm (55.1 in)

How much does the Campro CPV-1400B-BT50 cost?

Price estimate

Uncertain

We do not have a price for the Campro CPV-1400B-BT50 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro CPV-1400B-BT50 is a 50-taper box-way vertical machining center with travels of 1,400 mm (55.1 in) in X, 750 mm (29.5 in) in Y and 700 mm (27.5 in) in Z. Of the two CPV-1400B versions it is the one specified for heavy cutting, and it is the smallest model for which Campro lists an optional two-speed planetary gear head spindle.

That option deserves attention. As standard the machine has a belt type spindle at 6,000 rpm with an 11 / 15 kW (20 HP) motor. A gear head multiplies torque at low speed, which is what large face mills and boring bars in steel need, and Campro says it delivers outstanding heavy cutting performance. The page gives no torque or speed figures for the geared spindle, so ask for them.

The frame is ready for that kind of load. It weighs 11,500 kg (25,353 lb), the table base rides on 4 boxway type guideways according to Campro, and the 1,550 × 700 mm (61 in x 27.5 in) table carries 1,800 kg (3,968 lb). Tools can weigh 15 kg (33 lb) and reach 300 mm (11.8 in) in length. Z travel is longer than on the CPV-1400B-BT40, and the spindle nose range of 150~850 mm (5.9 in ~ 33.4 in) leaves room for long tools over tall parts.

Expect deliberate, not fast, movement: 15 m/min rapids on every axis, 3.5 sec tool to tool and 7 sec chip to chip. The power supply is 30 kVA. Maximum height is 3,010 mm (118 in).

Full Specifications

Parameter	Value
X Axis Travel	1,400 mm (55.1 in)
Y Axis Travel	750 mm (29.5 in)
Z Axis Travel	700 mm (27.5 in)
Distance Spindle Nose to Table	150~850 mm (5.9 in ~ 33.4 in)
Distance Spindle Center to Column	780 mm (30.7 in)
Table Size	1,550 × 700 mm (61 in x 27.5 in)
Max Table Load	1,800 kg (3,968 lb)
T-Slots	18 mm x 5 x 100 mm (0.7 in x 5 x 3.9 in) (W x No. x P)
Max Spindle Speed	6,000 rpm
Spindle Motor Power	11 / 15 kW (20 HP)
Spindle Taper	7/24 taper No.50
ATC Type	Arm type
Tool Shank	BT-50
Pull Stud	P-50T (45°)
Tool Capacity	24
Max Tool Diameter (full magazine)	Ø110 mm (Ø4.3 in)
Max Tool Diameter (adjacent pockets empty)	Ø200 mm (Ø7.8 in)
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	15 kg (33 lb)
Tool Change Time	3.5 sec
Chip to Chip Time	7 sec
Rapid Traverse Xyz	15 / 15 / 15 m/min (590.5 / 590.5 / 590.5 in/min)
Cutting Feed Rate	10,000 mm/min (393.7 in/min)
Floor Plan	3,885 × 3,250 mm (152 in x 127 in) (W × D)
Machine Weight	11,500 kg (25,353 lb)
Machine Height	3,010 mm (118 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	30 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Optional two-speed planetary gear head spindle for heavy cutting, per Campro
BT-50 tools up to 15 kg (33 lb), 300 mm (11.8 in) long and Ø110 mm (Ø4.3 in)
700 mm (27.5 in) of Z travel with 150~850 mm (5.9 in ~ 33.4 in) from spindle nose to table
1,800 kg (3,968 lb) table load on a base with 4 boxway type guideways
11 / 15 kW (20 HP) motor, more than the 9 / 11 kW (15 HP) of the CPV-1400B-BT40

Limitations

Standard spindle tops out at 6,000 rpm
Rapids of 15 m/min on X, Y and Z
7 sec chip to chip and a 24-tool magazine with no listed expansion
No torque figures are published for either the belt type or the gear head spindle
Needs 30 kVA, more than the 25 kVA of the CPV-1400B-BT40

Best For

Heavy face milling and boring in steel with 50-taper cutters Mold bases and die blocks up to 1,800 kg (3,968 lb) Low-speed, high-load work using the optional gear head spindle Tall parts needing up to 850 mm (33.4 in) under the spindle nose

Frequently Asked Questions

01 Is a geared spindle available on the CPV-1400B-BT50?

Yes, as an option. Campro lists an optional two-speed planetary gear head spindle for this model and describes it as delivering outstanding heavy cutting performance. The standard spindle is belt type at 6,000 rpm with 11 / 15 kW (20 HP). Speed and torque figures for the gear head are not on the page.

02 What size tools does the CPV-1400B-BT50 accept?

BT-50 shank tools with P-50T (45°) pull studs. Maximum diameter is Ø110 mm (Ø4.3 in), or Ø200 mm (Ø7.8 in) with adjacent pockets empty. Maximum length is 300 mm (11.8 in) and maximum weight 15 kg (33 lb). The arm type changer holds 24.

03 How does Z travel on the CPV-1400B-BT50 compare with the BT40 version?

The CPV-1400B-BT50 has 700 mm (27.5 in) of Z travel and a spindle nose to table range of 150~850 mm (5.9 in ~ 33.4 in). The CPV-1400B-BT40 has 650 mm (25.5 in) and 130~780 mm (5.1 in ~ 30.7 in). X and Y travels are identical on both.

04 What does the CPV-1400B-BT50 weigh and how much floor does it need?

Machine weight is 11,500 kg (25,353 lb). The floor plan is 3,885 × 3,250 mm (152 in x 127 in) and the maximum machine height is 3,010 mm (118 in). The power supply is 30 kVA and the air source 6~8 kg/cm² (85 ~ 113 PSI).
