Campro PV-5221

Q: How much does the Campro PV-5221 cost?

The price estimate for the Campro PV-5221 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-pv-5221#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

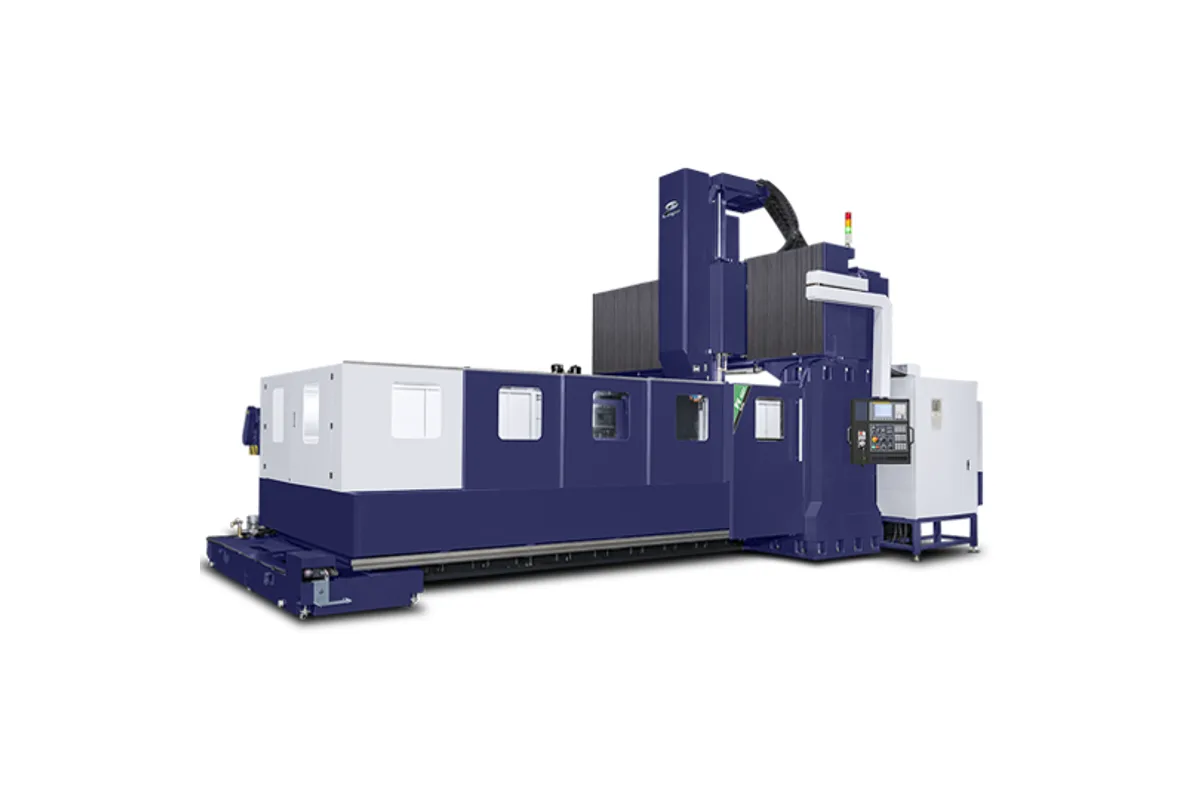

Campro PV series double column machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm (Gear-head spindle)

Spindle Taper

7/24 taper No.50

Tool Capacity

32 (OPT: 40 / 60)

Table Size

5,000 × 1,700 mm (196.8 in x 66.9 in)

Spindle Power

15 / 18.5 kW (25 HP)

x axis travel

5,200 mm (204.7 in)

How much does the Campro PV-5221 cost?

Price estimate

Uncertain

We do not have a price for the Campro PV-5221 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro PV-5221 is a five-metre double column machining center: 5,200 mm (204.7 in) of X travel, the longest stroke Campro offers, combined with 2,100 mm (82.6 in) of Y and 800 mm (31.4 in) of Z. The table is 5,000 × 1,700 mm (196.8 in x 66.9 in) and is rated for 12,000 kg (26,455 lb).

Length of this order changes the installation more than the machine. The bridge, ram and spindle are those of the shorter 21-family models. The bed and table are what grow, and with them the floor plan, which is 12,800 × 5,000 mm (503 in x 196 in). A moving-table bridge mill needs room for the table to pass fully under the bridge in both directions, and that is where the 12.8 metres go. Weight is 42,000 kg (92,594 lb).

Moving that table has a cost in feed. Rapid feedrate is 10 m/min in X and 12 m/min in Y and Z, the lowest set in the PV range, shared only with the PV-5226. Cutting feedrate is 1~8,000 mm/min. On a part that uses the whole stroke, positioning from one end to the other is a slow move, so programs should be ordered to avoid long air moves.

The spindle remains a 6,000 rpm gear-head unit with 15 / 18.5 kW (25 HP) and a No.50 taper. A 32-tool chain type ATC is standard. Z travel can be ordered at 1,000 mm (39.3 in), and Campro lists a fully enclosed top roof cover as an option. Power capacity is 40 kVA, the same as for every PV model, and height is 4,200 mm (165 in).

Full Specifications

Parameter	Value
X Axis Travel	5,200 mm (204.7 in)
Y Axis Travel	2,100 mm (82.6 in)
Z Axis Travel	800 mm (31.4 in); OPT: 1,000 mm (39.3 in)
Distance Between Columns	2,200 mm (86.6 in)
Distance Spindle Nose to Table	200~1,000 mm (7.8 in ~ 39.3 in); OPT: 250~1,250 mm (9.8 in ~ 49.2 in)
Table Size	5,000 × 1,700 mm (196.8 in x 66.9 in)
Max Table Load	12,000 kg (26,455 lb)
T-Slots	22 mm x 9 (0.86 in x 9) (W x No.)
Max Spindle Speed	6,000 rpm (Gear-head spindle)
Spindle Motor Power	15 / 18.5 kW (25 HP)
Spindle Taper	7/24 taper No.50
Tool Shank	BT-50
Tool Capacity	32 (OPT: 40 / 60)
Max Tool Diameter (full magazine)	Ø125 mm (Ø4.9 in)
Max Tool Diameter (adjacent pockets empty)	Ø215 mm (Ø8.4 in)
Max Tool Length	350 mm (13.7 in)
Max Tool Weight	20 kg (44 lb)
Rapid Traverse Xyz	10 / 12 / 12 m/min (393.7 / 472.4 / 472.4 in/min)
Cutting Feed Rate	1~8,000 mm/min (314.9 in/min)
Floor Plan	12,800 × 5,000 mm (503 in x 196 in) (W × D)
Machine Weight	42,000 kg (92,594 lb)
Machine Height	4,200 mm (165 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	40 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

5,200 mm (204.7 in) of X travel, the longest in Campro's range
5,000 × 1,700 mm (196.8 in x 66.9 in) table rated for 12,000 kg (26,455 lb)
2,200 mm (86.6 in) between columns with 2,100 mm (82.6 in) of Y travel
Optional Z travel of 1,000 mm (39.3 in) and optional top roof cover
Same 40 kVA power capacity as the shorter PV machines

Limitations

Rapids of 10 / 12 / 12 m/min, slower than the 12 / 15 / 15 m/min of the PV-4221
Needs 12,800 × 5,000 mm (503 in x 196 in) of floor
A single 15 / 18.5 kW (25 HP) spindle for a 5,000 mm table
42,000 kg (92,594 lb) machine weight

Best For

Very long structural parts, beams and bases up to 5,200 mm (204.7 in) Aerospace tooling and long fixtures up to 12,000 kg (26,455 lb) Two or three large parts set up in line on one table Long parts under 1,700 mm wide that do not need the PV-5226

Frequently Asked Questions

01 How much floor space does the PV-5221 need?

The floor plan is 12,800 × 5,000 mm (503 in x 196 in) and the maximum machine height 4,200 mm (165 in). The machine weighs 42,000 kg (92,594 lb). Power capacity is 40 kVA and the air source 6~8 kg/cm² (85 ~ 113 PSI).

02 What are the travels of the PV-5221?

X axis travel is 5,200 mm (204.7 in), Y axis travel 2,100 mm (82.6 in) and Z axis travel 800 mm (31.4 in), with 1,000 mm (39.3 in) of Z as an option. Spindle nose to table surface is 200~1,000 mm (7.8 in ~ 39.3 in) with the standard Z.

03 How does the PV-5221 compare with the PV-5226?

Both have 5,200 mm (204.7 in) of X travel and 10 / 12 / 12 m/min rapids. The PV-5226 has 2,600 mm (102.3 in) of Y, 2,700 mm (106.2 in) between columns, a 16,000 kg (35,273 lb) table load and weighs 48,000 kg (105,821 lb). The PV-5221 has 2,100 mm (82.6 in) of Y and a 12,000 kg (26,455 lb) load.

04 What tooling does the PV-5221 take?

BT-50 shank tools on a 7/24 taper No.50 spindle. The chain type magazine holds 32 tools, with 40 or 60 optional. Maximum tool length is 350 mm (13.7 in), maximum weight 20 kg (44 lb), and maximum diameter Ø125 mm (Ø4.9 in), or Ø215 mm (Ø8.4 in) beside empty pockets.
