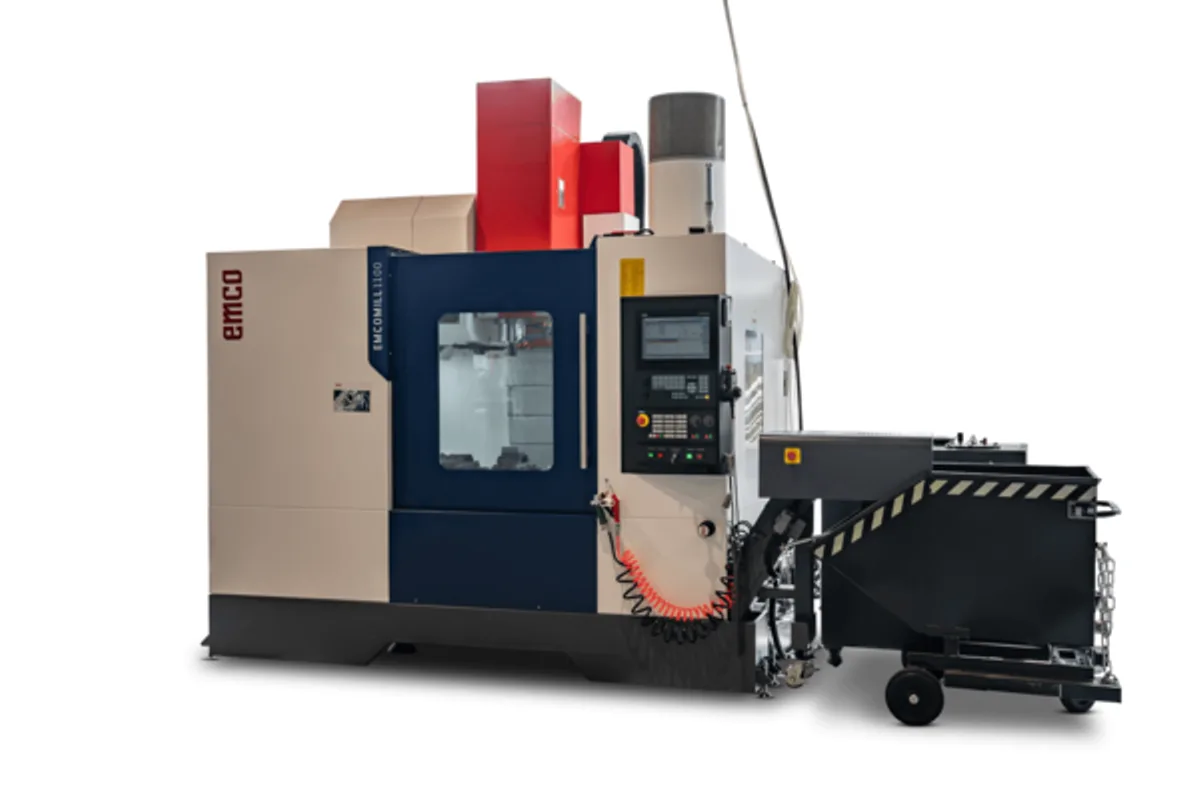

Emco Emcomill 1100
Image: emco-world.com, Emco
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Emco Emcomill 1100 cost?
Price estimate
We do not have a price for the Emco Emcomill 1100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 1200 x 600 mm table carrying 800 kg (1,764 lb) is the reason to pick the Emco Emcomill 1100 over its smaller sibling. This 3-axis vertical machining centre travels 1,100 mm (43.3 in) in X and 600 mm (23.6 in) in both Y and Z, enough for plates, long fixtures with several vises, and welded or cast parts of some weight.
The extra mass shows in the axis figures. Feed force rises to 10,000 N (2,248 lbf), while rapids are 36/36/36 m/min, a little below the Emcomill 800. Acceleration is the same 5 m/s2. The balance has shifted from speed toward pushing a loaded table.
Spindle and magazine are shared with the smaller model: direct drive, SK40, 50 – 12000 rpm, 13.6 kW (S6) and 95 Nm (S6), with 30 tool stations and a tool change of 2.5 s (tool to tool). On a table this size the spindle is the limit for heavy stock removal. Large-area face milling in steel has to be done with modest cutter diameters and feeds, and the 8 kg (18 lb) tool weight limit applies too.
Clearance from spindle nose to table is 120 / 720 mm. The machine stands 3,245 mm (127.8 in) high on an installation area of 2800 x 2245 mm (W x D, without chip conveyor, with tank) and weighs 6,500 kg (14,330 lb) as a basic machine. It runs on the Siemens 828D with ShopMill.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,100 mm (43.3 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Distance Spindle Nose to Table | 120 / 720 mm |
| Table Size | 1200 x 600 mm |
| T-Slots | 5 x 18 x 100 mm |
| Max Table Load | 800 kg (1,764 lb) |
| Table Height Above Floor | 965 mm (38.0 in) |
| Spindle Speed Range | 50 – 12000 rpm |
| Spindle Torque | 95 Nm (S6) |
| Spindle Motor Power | 13.6 kW (S6) |
| Spindle Taper | SK40 (DIN 69871) |
| Spindle Drive | Direct drive |
| Tool Capacity | 30 |
| Tool Change Time | 2.5 s (tool to tool) |
| Max Tool Diameter (full magazine) | 76 mm (3.0 in) |
| Max Tool Diameter Empty Adjacent | 150 mm (5.9 in) |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Rapid Traverse Xyz | 36/36/36 m/min |
| Feed Force Xyz | 10,000 N (2,248 lbf) |
| Axis Acceleration | 5 m/s2 |
| Power Requirement | 30 kVA |
| Machine Height | 3,245 mm (127.8 in) |
| Installation Area | 2800 x 2245 mm (W x D, without chip conveyor, with tank) |
| Machine Weight | 6,500 kg (14,330 lb) |
| Compressed Air | 6 bar |
Specifications sourced from emco-world.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1200 x 600 mm table rated for 800 kg (1,764 lb)
- Feed force of 10,000 N (2,248 lbf) in X, Y and Z
- 1,100 mm (43.3 in) of X travel with 600 mm (23.6 in) of Y
- Direct-drive spindle with 50 – 12000 rpm
- Compact installation area of 2800 x 2245 mm (W x D, without chip conveyor, with tank) for the travel
Limitations
- Same 13.6 kW (S6), 95 Nm (S6) spindle as the Emcomill 800 despite the larger table
- Rapids of 36/36/36 m/min are slower than the smaller model
- Tool weight is limited to 8 kg (18 lb)
- Overall height of 3,245 mm (127.8 in) needs checking against the building
Best For
Frequently Asked Questions
01
The maximum table load is 800 kg (1,764 lb) on a table of 1200 x 600 mm. The T-slots are listed as 5 x 18 x 100 mm (number, width, spacing) and the table surface sits 965 mm (38.0 in) above the floor.
02
The Emcomill 800 travels 800 mm (31.5 in) in X with a 600 kg (1,323 lb) table load and rapids of 42/42/42 m/min. The Emcomill 1100 travels 1,100 mm (43.3 in), carries 800 kg (1,764 lb) and has rapids of 36/36/36 m/min. The spindle and tool changer are the same.
03
A direct-drive SK40 spindle with 50 – 12000 rpm, 13.6 kW (S6) and 95 Nm (S6), and a 30-station tool changer with a tool-to-tool time of 2.5 s (tool to tool). Tools may be up to 76 mm (3.0 in) in diameter and 300 mm (11.8 in) long.
04
The Siemens 828D with ShopMill, shown on a 15-inch colour monitor. Emco lists three axes for the basic machine.
