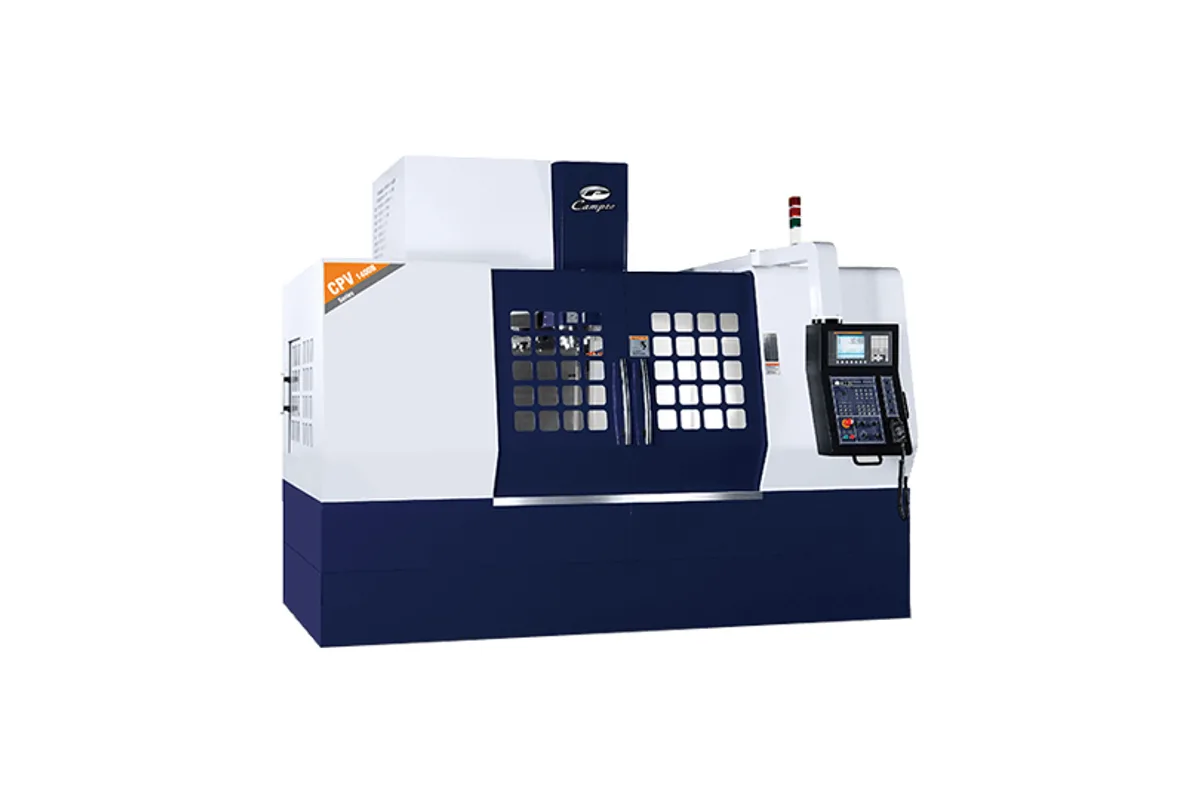

Campro CPV-1400B-BT40
Image: camprocnc.com, Campro
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Campro CPV-1400B-BT40 cost?
Price estimate
We do not have a price for the Campro CPV-1400B-BT40 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 1,400 mm (55.1 in) of X travel the Campro CPV-1400B-BT40 is where the CPV-B box-way vertical machining centers become large machines. Y travel is 750 mm (29.5 in), Z is 650 mm (25.5 in), and the 1,550 × 700 mm (61 in x 27.5 in) table carries 1,800 kg (3,968 lb).
The jump in mass from the next size down is steep. This machine weighs 11,000 kg (24,250 lb), where the CPV-1100B-BT40 weighs 6,500 kg (14,330 lb). Part of the reason is under the table: Campro states that the CPV-1400B table base has 4 boxway type guideways, so a long, heavily loaded table is supported across its width instead of on two ways.
There is a catch in the spindle row. The motor is listed at 9 / 11 kW (15 HP), which is less than the 11 / 15 kW (20 HP) of the smaller CPV-1100B-BT40, on the same 8,000 rpm No.40 taper spindle. The 50-taper CPV-1400B-BT50 gets the 11 / 15 kW (20 HP) motor. A buyer who wants this table size for heavy stock removal should look at that figure before anything else.
Moving 1,800 kg on box ways is done at 15 m/min on all three axes. The 24-tool arm type changer works at 2.5 sec tool to tool and 6 sec chip to chip, with BT-40 tools up to 7 kg (15 lb). The floor plan is 3,885 × 3,250 mm (152 in x 127 in) and the power supply 25 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 750 mm (29.5 in) |
| Z Axis Travel | 650 mm (25.5 in) |
| Distance Spindle Nose to Table | 130~780 mm (5.1 in ~ 30.7 in) |
| Distance Spindle Center to Column | 780 mm (30.7 in) |
| Table Size | 1,550 × 700 mm (61 in x 27.5 in) |
| Max Table Load | 1,800 kg (3,968 lb) |
| T-Slots | 18 mm x 5 x 100 mm (0.7 in x 5 x 3.9 in) (W x No. x P) |
| Max Spindle Speed | 8,000 rpm |
| Spindle Motor Power | 9 / 11 kW (15 HP) |
| Spindle Taper | 7/24 taper No.40 |
| ATC Type | Arm type |
| Tool Shank | BT-40 |
| Pull Stud | P-40T (45°) |
| Tool Capacity | 24 |
| Max Tool Diameter (full magazine) | Ø80 mm (Ø3.1 in) |
| Max Tool Diameter (adjacent pockets empty) | Ø150 mm (Ø5.9 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Time | 2.5 sec |
| Chip to Chip Time | 6 sec |
| Rapid Traverse Xyz | 15 / 15 / 15 m/min (590.5 / 590.5 / 590.5 in/min) |
| Cutting Feed Rate | 10,000 mm/min (393.7 in/min) |
| Floor Plan | 3,885 × 3,250 mm (152 in x 127 in) (W × D) |
| Machine Weight | 11,000 kg (24,250 lb) |
| Machine Height | 2,875 mm (113 in) |
| Air Source | 6~8 kg/cm² (85 ~ 113 PSI) |
| Power Requirement | 25 kVA |
Specifications sourced from camprocnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,550 × 700 mm (61 in x 27.5 in) table rated for 1,800 kg (3,968 lb)
- Table base with 4 boxway type guideways, as Campro describes the CPV-1400B
- 750 mm (29.5 in) of Y travel, wider than the 700 mm table depth
- 11,000 kg (24,250 lb) of machine behind a 40-taper spindle
- 6 sec chip to chip with the 24-tool arm type changer
Limitations
- Spindle motor is 9 / 11 kW (15 HP), below the 11 / 15 kW (20 HP) of the smaller CPV-1100B-BT40
- Rapids are 15 m/min on X, Y and Z
- Z travel of 650 mm (25.5 in) is shorter than the 700 mm (27.5 in) of the CPV-1400B-BT50
- BT-40 tools top out at 7 kg (15 lb) and Ø80 mm (Ø3.1 in) on a machine built for large parts
Best For
Frequently Asked Questions
01
The maximum loading weight is 1,800 kg (3,968 lb) on a table of 1,550 × 700 mm (61 in x 27.5 in). Campro states that the CPV-1400B table base design uses 4 boxway type guideways. T-slots are 18 mm wide, five in number, at 100 mm pitch.
02
The table lists 9 / 11 kW (15 HP) at 8,000 rpm on a 7/24 taper No.40. That is a smaller motor than the 11 / 15 kW (20 HP) listed for the CPV-1100B-BT40 and for the CPV-1400B-BT50, so confirm the rating with Campro if the work involves heavy roughing.
03
X and Y travels and the table are the same. The CPV-1400B-BT50 has a No.50 taper at 6,000 rpm with 11 / 15 kW (20 HP), 700 mm (27.5 in) of Z and tools to 15 kg (33 lb). The CPV-1400B-BT40 runs to 8,000 rpm with 9 / 11 kW (15 HP), 650 mm (25.5 in) of Z and tools to 7 kg (15 lb).
04
Floor plan 3,885 × 3,250 mm (152 in x 127 in), maximum machine height 2,875 mm (113 in), machine weight 11,000 kg (24,250 lb). The power supply is 25 kVA and the air source 6~8 kg/cm² (85 ~ 113 PSI).
