Campro CPV-1100B-BT50

Q: How much does the Campro CPV-1100B-BT50 cost?

The price estimate for the Campro CPV-1100B-BT50 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpv-1100b-bt50#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

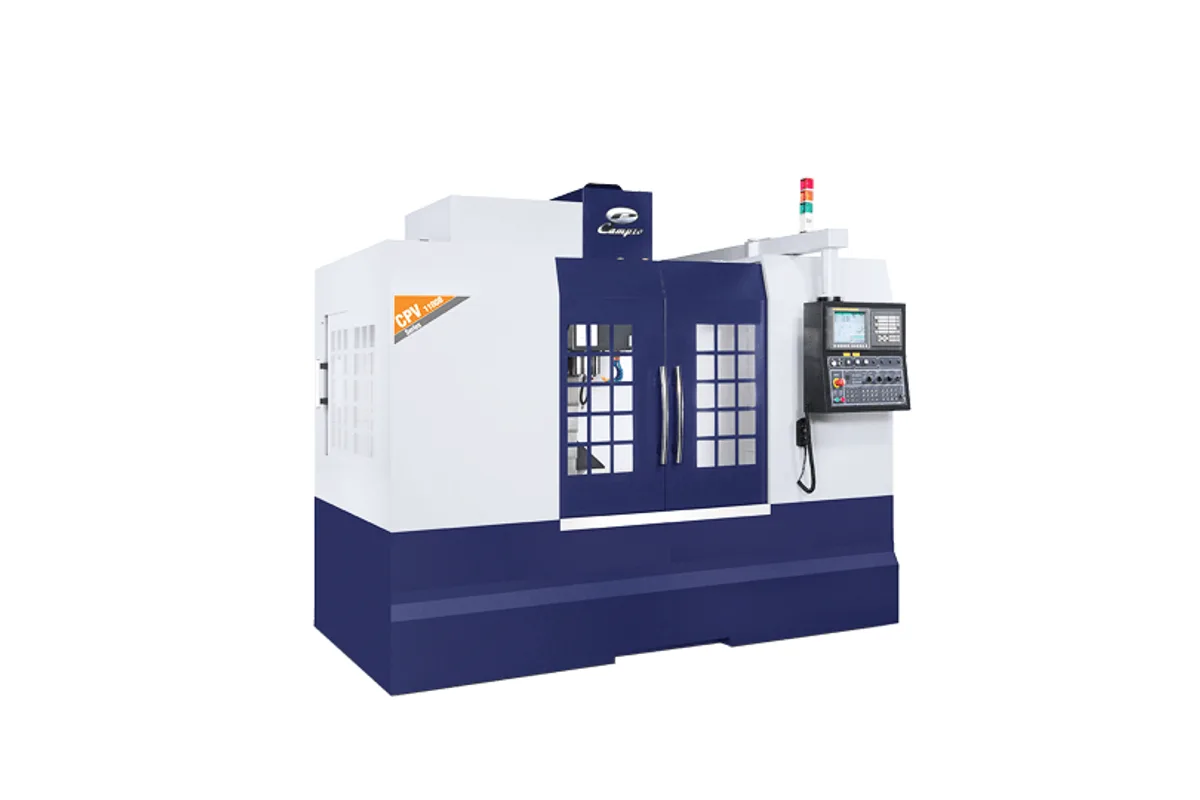

Campro CPV-1100B-BT50 vertical machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm

Spindle Taper

7/24 taper No.50

Tool Capacity

Table Size

1,200 × 600 mm (47.2 in x 23.6 in)

Spindle Power

11 / 15 kW (20 HP)

x axis travel

1,100 mm (43.3 in)

How much does the Campro CPV-1100B-BT50 cost?

Price estimate

Uncertain

We do not have a price for the Campro CPV-1100B-BT50 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro CPV-1100B-BT50 puts a 50-taper spindle on the maker's mid-size box-way vertical machining center. It has 1,100 mm (43.3 in) of X travel, 620 mm (24.4 in) of Y and 600 mm (23.6 in) of Z, and it is the smallest machine in the CPV-B line to take BT-50 tooling.

Fifty taper in a frame this size is about cutter capacity and holder stiffness. The changer accepts tools of 15 kg (33 lb), Ø110 mm (Ø4.3 in) and 300 mm (11.8 in), with Ø200 mm (Ø7.8 in) possible next to empty pockets. That opens the door to face mills and boring bars the 40-taper CPV-1100B-BT40 cannot carry, since it stops at 7 kg (15 lb).

Do not read the bigger taper as a bigger motor. The spindle motor is listed at 11 / 15 kW (20 HP), the same row as the BT40 version, and top speed is 6,000 rpm. Campro's page for this model lists no gear head option, although it does for the larger BT50 machines. Every motion is a little slower too: 3.5 sec tool to tool, 7 sec chip to chip, and 15 m/min on Z against 20 m/min on X and Y.

The table is 1,200 × 600 mm (47.2 in x 23.6 in) and holds 1,100 kg (2,425 lb). Weight rises to 7,000 kg (15,432 lb) and the power supply to 25 kVA. Campro describes box ways on 3 axes, scraped Turcite-B slideways and a spindle oil cooler as standard equipment.

Full Specifications

Parameter	Value
X Axis Travel	1,100 mm (43.3 in)
Y Axis Travel	620 mm (24.4 in)
Z Axis Travel	600 mm (23.6 in)
Distance Spindle Nose to Table	120~720 mm (4.7 in ~ 28.3 in)
Distance Spindle Center to Column	670 mm (26.3 in)
Table Size	1,200 × 600 mm (47.2 in x 23.6 in)
Max Table Load	1,100 kg (2,425 lb)
T-Slots	18 mm x 5 x 100 mm (0.7 in x 5 x 3.9 in) (W x No. x P)
Max Spindle Speed	6,000 rpm
Spindle Motor Power	11 / 15 kW (20 HP)
Spindle Taper	7/24 taper No.50
ATC Type	Arm type
Tool Shank	BT-50
Pull Stud	P-50T (45°)
Tool Capacity	24
Max Tool Diameter (full magazine)	Ø110 mm (Ø4.3 in)
Max Tool Diameter (adjacent pockets empty)	Ø200 mm (Ø7.8 in)
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	15 kg (33 lb)
Tool Change Time	3.5 sec
Chip to Chip Time	7 sec
Rapid Traverse Xyz	20 / 20 / 15 m/min (787.4 / 787.4 / 590.5 in/min)
Cutting Feed Rate	10,000 mm/min (393.7 in/min)
Floor Plan	3,325 × 2,700 mm (130 in x 106 in) (W × D)
Machine Weight	7,000 kg (15,432 lb)
Machine Height	2,880 mm (113 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	25 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

BT-50 tooling on an 1,100 mm (43.3 in) machine: tools up to 15 kg (33 lb) and Ø110 mm (Ø4.3 in)
Ø200 mm (Ø7.8 in) cutters fit with adjacent pockets empty
Same 1,200 × 600 mm (47.2 in x 23.6 in) table and 1,100 kg (2,425 lb) load as the CPV-1100B-BT40
Box ways on 3 axes with pretensioned class C3 ball screws, per Campro
Compact for a 50-taper machine: 3,325 × 2,700 mm (130 in x 106 in)

Limitations

Spindle motor stays at 11 / 15 kW (20 HP), no more than the CPV-1100B-BT40
Top speed of 6,000 rpm limits small-diameter tools
Z rapid is 15 m/min and chip to chip time is 7 sec
Magazine holds 24 tools with no larger option in the table

Best For

Face milling and boring with large-diameter 50-taper cutters on mid-size parts Die and mold roughing within 1,100 × 620 × 600 mm of travel Shops whose tooling inventory is already BT-50 Steel and cast iron parts up to 1,100 kg (2,425 lb)

Frequently Asked Questions

01 Why choose the CPV-1100B-BT50 over the CPV-1100B-BT40?

For tool capacity. The CPV-1100B-BT50 takes tools of 15 kg (33 lb), Ø110 mm (Ø4.3 in) and 300 mm (11.8 in), against 7 kg (15 lb), Ø80 mm (Ø3.1 in) and 250 mm (9.8 in) on the CPV-1100B-BT40. What it gives up is speed: 6,000 rpm and 7 sec chip to chip, where the CPV-1100B-BT40 reaches 8,000 rpm and 6 sec.

02 How much spindle power does the CPV-1100B-BT50 have?

The spindle motor row reads 11 / 15 kW (20 HP) and the spindle speed is 6,000 rpm on a 7/24 taper No.50. Campro describes the standard spindle as belt type with class P4 angular contact ball bearings. No torque figure and no gear head option appear on the page for this model.

03 What is the work envelope of the CPV-1100B-BT50?

Travels are 1,100 mm (43.3 in), 620 mm (24.4 in) and 600 mm (23.6 in) in X, Y and Z. The spindle nose is 120~720 mm (4.7 in ~ 28.3 in) from the table surface. The table measures 1,200 × 600 mm (47.2 in x 23.6 in) and carries 1,100 kg (2,425 lb).

04 What are the installation requirements of the CPV-1100B-BT50?

It weighs 7,000 kg (15,432 lb) and occupies 3,325 × 2,700 mm (130 in x 106 in), with a maximum height of 2,880 mm (113 in). The power supply is 25 kVA and the air source is 6~8 kg/cm² (85 ~ 113 PSI).
