Campro CPV-1800B

Q: How much does the Campro CPV-1800B cost?

The price estimate for the Campro CPV-1800B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpv-1800b#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

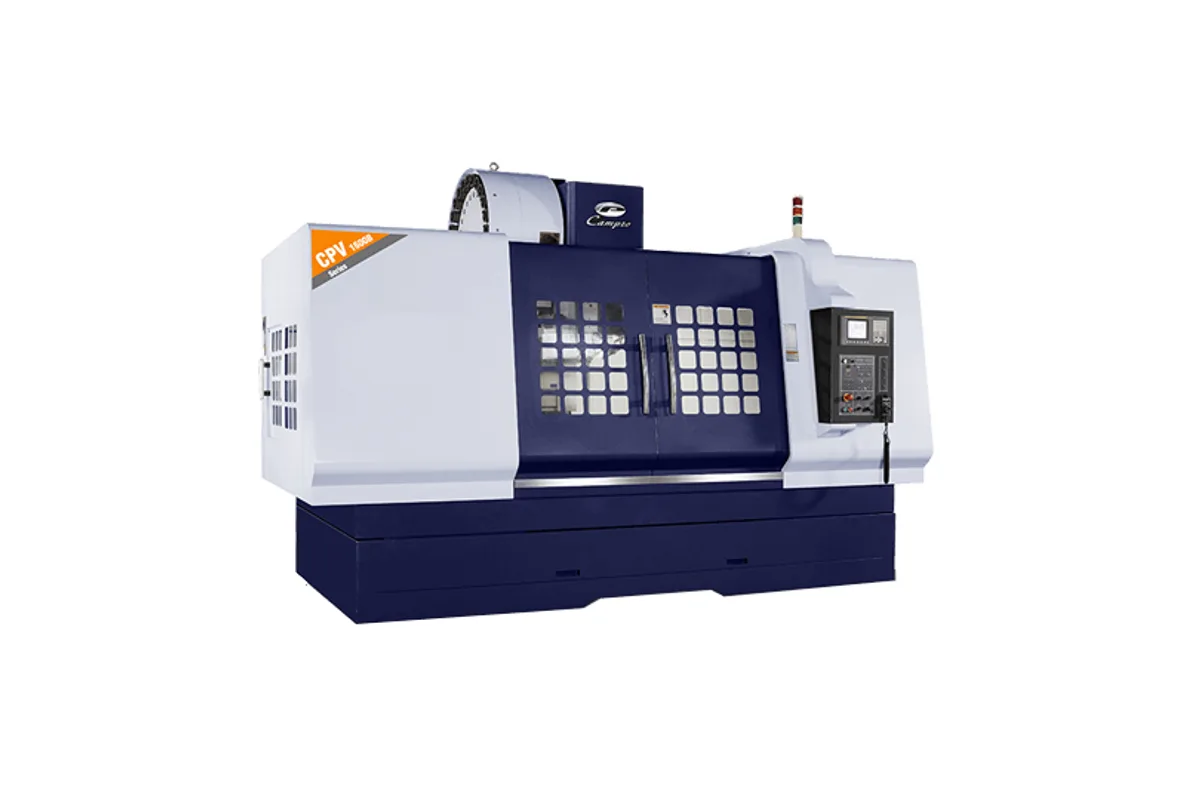

Campro CPV-B series vertical machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm

Spindle Taper

7/24 taper No.50

Tool Capacity

Table Size

2,000 × 800 mm (78.7 in x 31.4 in)

Spindle Power

11 / 15 kW (20 HP)

x axis travel

1,800 mm (70.8 in)

How much does the Campro CPV-1800B cost?

Price estimate

Uncertain

We do not have a price for the Campro CPV-1800B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Stretch the CPV-1600B-BT50 along X and you have the Campro CPV-1800B, a 50-taper box-way vertical machining center with 1,800 mm (70.8 in) of X travel. Y travel is 830 mm (32.6 in) and Z is 700 mm (27.5 in). Campro offers this size with the BT-50 spindle only.

The table grows to 2,000 × 800 mm (78.7 in x 31.4 in) and the load rating to 2,200 kg (4,850 lb), and machine weight to 16,000 kg (35,273 lb). Nothing else moves. Depth and height are those of the CPV-1600B-BT50, the Y and Z strokes are identical, and the floor plan is simply longer at 4,800 × 3,245 mm (188 in x 127 in). For a part slightly too long for the CPV-1600B-BT50, this is the smallest step up in the range; the alternative is the far larger CPV-2200B.

Cutting hardware is the BT50 package of the series: 6,000 rpm, an 11 / 15 kW (20 HP) motor on a belt type spindle, and a two-speed planetary gear head as an option. The 24-tool arm type changer handles 15 kg (33 lb) tools up to 300 mm (11.8 in) long and takes 7 sec chip to chip.

Long X on box ways is not quick. Rapids are 15 m/min in X and Y and 12 m/min in Z, with a cutting feedrate of 10,000 mm/min (393.7 in/min). Power supply is 30 kVA and height 3,200 mm (125 in). The page carries a table base note written for the CPV-1600B, describing 4 boxway type guideways.

Full Specifications

Parameter	Value
X Axis Travel	1,800 mm (70.8 in)
Y Axis Travel	830 mm (32.6 in)
Z Axis Travel	700 mm (27.5 in)
Distance Spindle Nose to Table	150~850 mm (5.9 in ~ 33.4 in)
Distance Spindle Center to Column	850 mm (33.4 in)
Table Size	2,000 × 800 mm (78.7 in x 31.4 in)
Max Table Load	2,200 kg (4,850 lb)
T-Slots	22 mm x 6 x 125 mm (0.8 in x 6 x 4.9 in) (W x No. x P)
Max Spindle Speed	6,000 rpm
Spindle Motor Power	11 / 15 kW (20 HP)
Spindle Taper	7/24 taper No.50
ATC Type	Arm type
Tool Shank	BT-50
Pull Stud	P-50T (45°)
Tool Capacity	24
Max Tool Diameter (full magazine)	Ø110 mm (Ø4.3 in)
Max Tool Diameter (adjacent pockets empty)	Ø200 mm (Ø7.8 in)
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	15 kg (33 lb)
Tool Change Time	3.5 sec
Chip to Chip Time	7 sec
Rapid Traverse Xyz	15 / 15 / 12 m/min (590.5 x 590.5 x 472.4 in/min)
Cutting Feed Rate	10,000 mm/min (393.7 in/min)
Floor Plan	4,800 × 3,245 mm (188 in x 127 in) (W × D)
Machine Weight	16,000 kg (35,273 lb)
Machine Height	3,200 mm (125 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	30 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,800 mm (70.8 in) of X travel over a 2,000 × 800 mm (78.7 in x 31.4 in) table
2,200 kg (4,850 lb) table load
Optional two-speed planetary gear head spindle, per Campro
BT-50 tools up to 15 kg (33 lb), Ø110 mm (Ø4.3 in) and 300 mm (11.8 in)
Same 30 kVA supply as the CPV-1600B-BT50 despite the longer bed

Limitations

Y travel stays at 830 mm (32.6 in) and Z at 700 mm (27.5 in), no more than the CPV-1600B-BT50
Campro lists this size with the BT-50 spindle only, with no lighter-taper version
Standard spindle motor is 11 / 15 kW (20 HP) at up to 6,000 rpm
Rapids of 15 / 15 / 12 m/min over a long X stroke

Best For

Long die shoes, rails and plates up to 1,800 mm (70.8 in) Parts just too long for the CPV-1600B-BT50 Heavy milling with the optional gear head spindle Two fixtures side by side on a 2,000 mm (78.7 in) table

Frequently Asked Questions

01 How does the CPV-1800B relate to the CPV-1600B-BT50?

It is the longer version. X travel is 1,800 mm (70.8 in), the table is 2,000 × 800 mm (78.7 in x 31.4 in) and the load is 2,200 kg (4,850 lb). The CPV-1600B-BT50 has 1,600 mm (62.9 in) of X and a 2,000 kg (4,409 lb) load. Y, Z, spindle and tool changer figures match.

02 What spindle does the CPV-1800B have?

A 7/24 taper No.50 spindle at 6,000 rpm with an 11 / 15 kW (20 HP) motor, belt type as standard with class P4 angular contact ball bearings and a spindle oil cooler. Campro lists an optional two-speed planetary gear head spindle for heavy cutting.

03 How much floor space does the CPV-1800B need?

The floor plan is 4,800 × 3,245 mm (188 in x 127 in) and the maximum machine height 3,200 mm (125 in). The machine weighs 16,000 kg (35,273 lb). It needs a 30 kVA supply and air at 6~8 kg/cm² (85 ~ 113 PSI).

04 What are the tool changer figures for the CPV-1800B?

The arm type changer stores 24 BT-50 tools. Tool to tool time is 3.5 sec and chip to chip 7 sec. A tool may be Ø110 mm (Ø4.3 in), or Ø200 mm (Ø7.8 in) with adjacent pockets empty, up to 300 mm (11.8 in) long and 15 kg (33 lb).
