Campro NV-1020

Q: How much does the Campro NV-1020 cost?

The price estimate for the Campro NV-1020 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-nv-1020#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

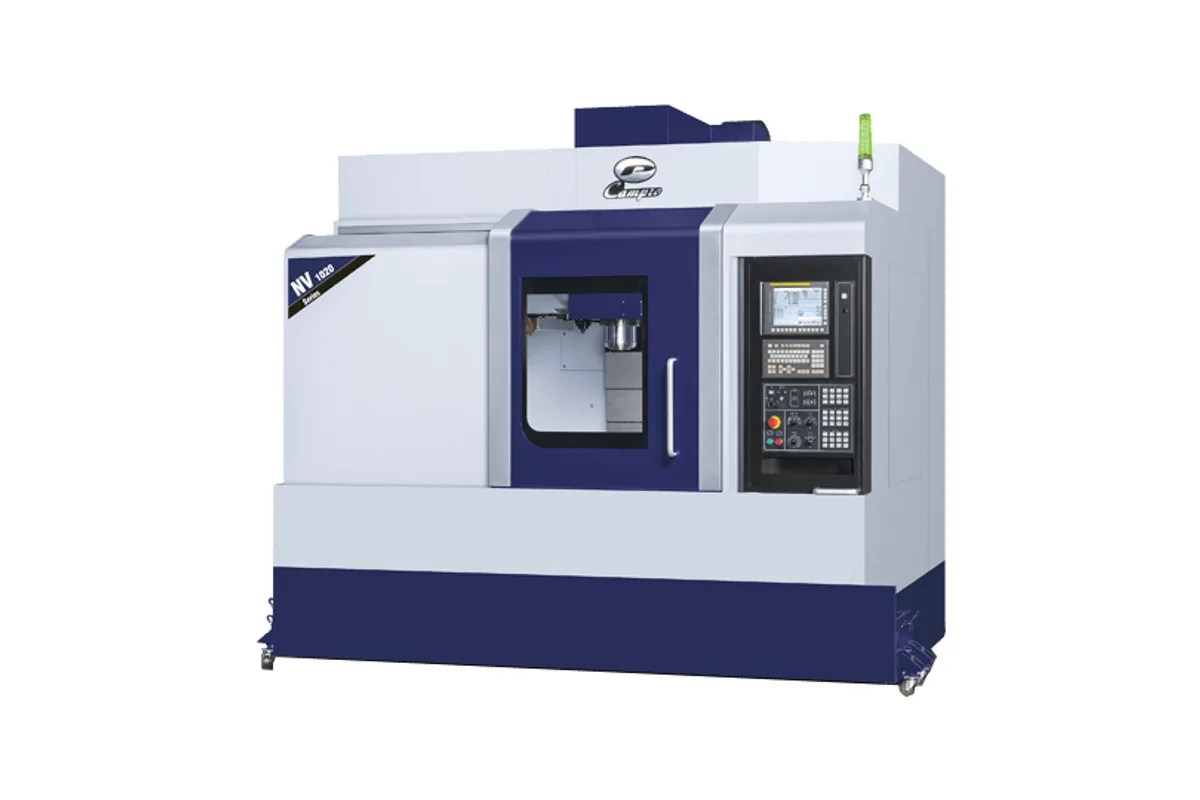

Campro NV-1020 vertical machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

10,000 rpm (OPT: 12,000 / 15,000 rpm)

Spindle Taper

7/24 taper No.40

Tool Capacity

24 (OPT: 30 / 32 / 40)

Table Size

1,120 × 610 mm (44 in x 24 in)

Spindle Power

11 / 15 kW (20 HP)

x axis travel

1,020 mm (40.1 in)

How much does the Campro NV-1020 cost?

Price estimate

Uncertain

We do not have a price for the Campro NV-1020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro NV-1020 is the fast one among the maker's 40-taper vertical machining centers. Its X and Y axes rapid at 48 m/min (1,889.7 in/min) and Z at 32 m/min (1,259.8 in/min), on travels of 1,020 mm (40.1 in), 610 mm (24 in) and 610 mm (24 in).

Campro's explanation for the speed is the guideway choice. The NV series uses heavy-duty roller type linear guideways on 3 axes, which the maker presents as combining the cutting ability of a box way with the movement of a linear guide. The Z axis has no counter-balance: a servo motor with brake carries the head, which Campro says gives better surface accuracy in 3D machining. The spindle is described as having a thermally symmetric structure to reduce thermal deformation.

Y travel is generous for the class. At 610 mm (24 in) it equals the full depth of the 1,120 × 610 mm (44 in x 24 in) table, and the spindle center stands 688 mm (27 in) from the column. The table carries 800 kg (1,763 lb). Campro also mentions an optional 4/5-axis table.

The standard spindle runs to 10,000 rpm with an 11 / 15 kW (20 HP) motor, and the table lists faster options (OPT: 12,000 / 15,000 rpm). The magazine holds 24 tools and can be ordered larger (OPT: 30 / 32 / 40). Tool change takes 2.5 sec tool to tool, 7 sec chip to chip. Weight is 7,100 kg (15,652 lb), and the power capacity is 25 kVA.

Full Specifications

Parameter	Value
X Axis Travel	1,020 mm (40.1 in)
Y Axis Travel	610 mm (24 in)
Z Axis Travel	610 mm (24 in)
Distance Spindle Nose to Table	85~695 mm (3.3 in ~ 27.3 in)
Distance Spindle Center to Column	688 mm (27 in)
Table Size	1,120 × 610 mm (44 in x 24 in)
Max Table Load	800 kg (1,763 lb)
T-Slots	18 mm x 5 x 100 mm (0.7 in x 5 x 3.9 in) (W x No. x P)
Max Spindle Speed	10,000 rpm (OPT: 12,000 / 15,000 rpm)
Spindle Motor Power	11 / 15 kW (20 HP)
Spindle Taper	7/24 taper No.40
ATC Type	Arm type
Tool Shank	BT-40
Pull Stud	P-40T (45°)
Tool Capacity	24 (OPT: 30 / 32 / 40)
Max Tool Diameter (full magazine)	Ø80 mm (Ø3.1 in)
Max Tool Diameter (adjacent pockets empty)	Ø150 mm (Ø5.9 in)
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	7 kg (15 lb)
Tool Change Time	2.5 sec
Chip to Chip Time	7 sec
Rapid Traverse Xyz	48 / 48 / 32 m/min (1,889.7 / 1,889.7 / 1,259.8 in/min)
Cutting Feed Rate	10,000 mm/min (393.7 in/min)
Floor Plan	3,330 × 2,350 mm (131 in x 92 in) (W × D)
Machine Weight	7,100 kg (15,652 lb)
Machine Height	2,770 mm (109 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	25 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

48 m/min rapids in X and Y and 32 m/min in Z, the fastest of Campro's vertical machining centers
610 mm (24 in) of Y travel, matching the full table depth
10,000 rpm standard spindle with 11 / 15 kW (20 HP) and faster spindles optional (OPT: 12,000 / 15,000 rpm)
Roller type linear guideways on 3 axes and a Z axis driven without counter-balance
Magazine of 24 tools, expandable (OPT: 30 / 32 / 40)

Limitations

Chip to chip time of 7 sec does not match the pace of the axes
Table load of 800 kg (1,763 lb) is below the 1,100 kg (2,425 lb) of the box-way CPV-1100B-BT40
Tools limited to 7 kg (15 lb), 250 mm (9.8 in) and Ø80 mm (Ø3.1 in)
Needs 25 kVA, more than the 15 kVA of the CNV-1050

Best For

Production parts with many short moves, where 48 m/min rapids cut non-cutting time 3D contouring of molds and dies with the optional 15,000 rpm spindle Wide parts that need 610 mm (24 in) of Y in a 1,020 mm machine Aluminium and general steel work up to 800 kg (1,763 lb)

Frequently Asked Questions

01 How fast is the NV-1020?

Rapid feedrate is 48 / 48 / 32 m/min (1,889.7 / 1,889.7 / 1,259.8 in/min) in X / Y / Z, and the cutting feedrate is 10,000 mm/min (393.7 in/min). The larger NV-1280 is listed at 36 / 36 / 24 m/min. Tool change is 2.5 sec tool to tool and 7 sec chip to chip.

02 What guideways does the NV-1020 use?

Campro states that the NV series has heavy-duty roller type linear guideways on 3 axes, with pretensioned class C3 precision ballscrews. The X axis has three blocks to support the working table. The Z axis uses a servo motor with brake instead of a counter-balance.

03 Which spindle speeds are available on the NV-1020?

10,000 rpm is standard, with 12,000 and 15,000 rpm listed as options. The spindle motor is 11 / 15 kW (20 HP) and the taper is 7/24 taper No.40 with BT-40 tool shanks. Campro describes a thermal symmetry structure of the spindle intended to reduce thermal deformation.

04 What is the table size and load of the NV-1020?

The table measures 1,120 × 610 mm (44 in x 24 in) and the maximum loading weight is 800 kg (1,763 lb). Spindle nose to table surface is 85~695 mm (3.3 in ~ 27.3 in). T-slots are 18 mm wide, five in number, at 100 mm pitch.

05 How much space does the NV-1020 need?

The floor plan is 3,330 × 2,350 mm (131 in x 92 in) and the maximum machine height is 2,770 mm (109 in). The machine weighs 7,100 kg (15,652 lb). Power capacity is 25 kVA and the air source 6~8 kg/cm² (85 ~ 113 PSI).
