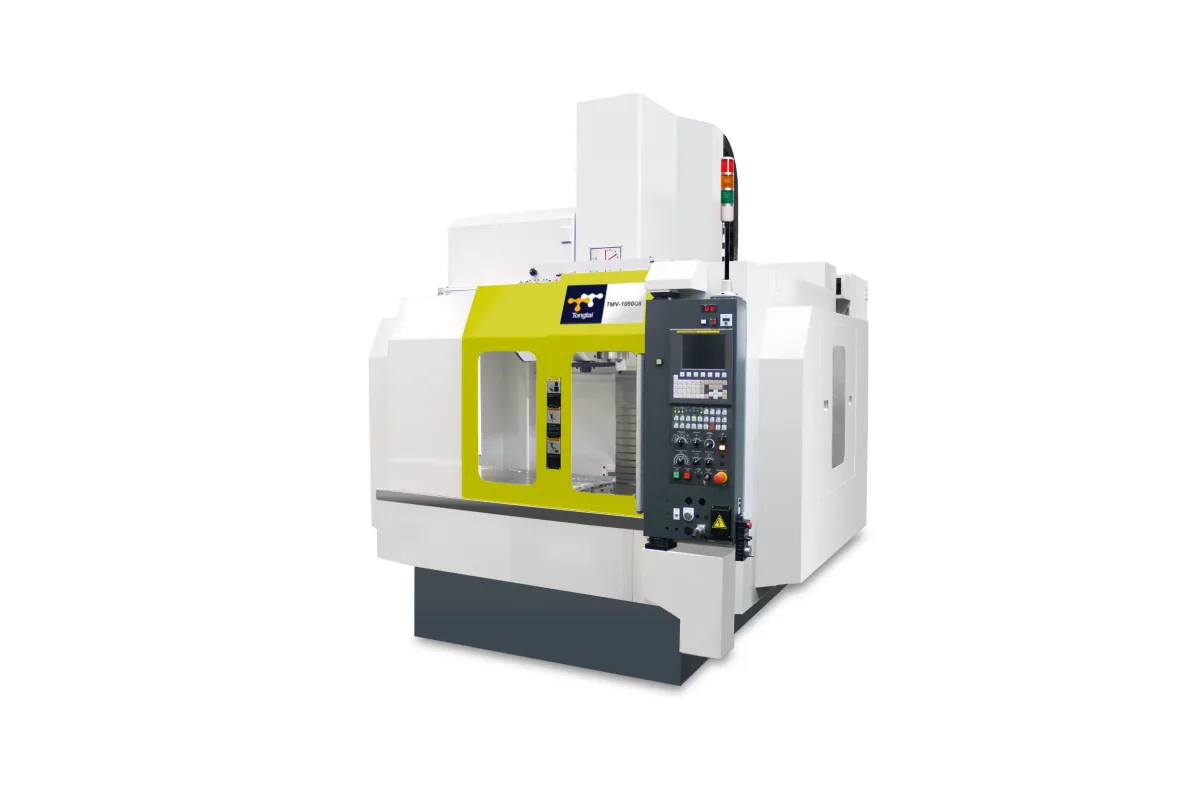

Anger Machining TMV 1050QII
Image: anger-machining.com, Anger Machining
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
number of axes
x axis travel
How much does the Anger Machining TMV 1050QII cost?
Price estimate
We do not have a price for the Anger Machining TMV 1050QII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 1,100x600 mm table and 1,050 mm (41.3 in) of X travel make the Anger Machining TMV 1050QII the long-bed version of the TMV QII pair. Y is 600 mm (23.6 in), Z is 530 mm (20.9 in), and the table takes 800 kg (1,764 lb).
Everything except X is shared with the TMV 850QII, so the choice between the two is a question about parts and floor space. The longer machine is 2,500 mm in length and weighs 5,900 kg; the TMV 850QII is 2,200 mm and 5,500 kg. Table load does not increase, which means the extra length is for longer parts or more fixtures, not heavier ones.
For production work the pace matters: 48/48/48 m/min rapids, accelerations given as the ranges 5.6-9.1/5-7.1/5 m/s², and a chip-to-chip time of 4.3 s. The 24-tool changer takes BBT40 tools to 125 mm in diameter and 7 kg.
Spindle power and torque are printed as ranges, 7.5-11/12-18.5 kW and 17.9-95.5/35.8-153 Nm (S1/S6-60%), covering the Fanuc spindles on offer. Anger describes a direct-coupled spindle with optional oil-air cooling and a cast-iron frame with a wide base. The speed row of the datasheet is not legible as printed. Above this size the series changes character: the TMV 1350A moves to BBT50, 1,300 kg of table load and much slower axes.
Full Specifications
| Parameter | Value |
|---|---|
| Number of Axes | 3 (4,5) |
| X Axis Travel | 1,050 mm (41.3 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 530 mm (20.9 in) |
| Max Part Size | 1,100/600/630 mm (43.3/23.6/24.8 in) |
| Axis Acceleration Xyz | 5.6-9.1/5-7.1/5 m/s² |
| Rapid Traverse Xyz | 48/48/48 m/min (1,890/1,890/1,890 ipm) |
| Spindle Motor Power | 7.5-11/12-18.5 kW (S1/S6-60%) |
| Spindle Torque | 17.9-95.5/35.8-153 Nm (S1/S6-60%) |
| Spindle Taper | BBT40 |
| Tool Capacity | 24 pcs. |
| Max Tool Diameter (full magazine) | 125 mm (4.9 in) |
| Tool Length | 320 mm (12.6 in) |
| Tool Weight | 7 kg (15 lb) |
| Chip to Chip Time | 4.3 s (at 1,800 rpm) |
| Table Size | 1,100x600 mm (43.3x23.6 in) |
| T-Slot Width | 18 (5pcs.) mm |
| Max Table Load | 800 kg (1,764 lb) |
| Machine Weight | 5,900 kg (13,007 lb) |
| Machine Dimensions | 2,500/3,000/2,810 mm (98.4/118.1/110.6 in) |
| Operating Voltage | 3x380 (3x220 at Fanuc) V |
| Power Requirement | 30 kVA |
| CNC Control | Siemens, Fanuc |
| Lubrication | CL, MQL |
Specifications sourced from anger-machining.com — verified 2026-10-05
Strengths & Limitations
Strengths
- X travel of 1,050 mm with a full 600 mm of Y
- Table of 1,100x600 mm rated for 800 kg
- Rapids of 48/48/48 m/min and 4.3 s chip-to-chip
- Choice of Siemens or Fanuc control
- Automation-ready with optional 4th or 5th axis, in Anger's words
Limitations
- Table load is 800 kg, unchanged from the shorter TMV 850QII
- Z travel of 530 mm limits tall parts on a rotary table
- The 24-tool magazine has no larger option in the table
- Tool weight is limited to 7 kg on the BBT40 interface
Best For
Frequently Asked Questions
01
1,050 mm (41.3 in) in X, 600 mm (23.6 in) in Y and 530 mm (20.9 in) in Z. The table measures 1,100x600 mm, has five T-slots 18 mm wide and carries 800 kg (1,764 lb). The maximum part size is 1,100/600/630 mm.
02
Not according to the table. Both columns share one cell for maximum speed, 48/48/48 m/min, one for acceleration, 5.6-9.1/5-7.1/5 m/s², and one for chip-to-chip time, 4.3 s. The longer machine weighs 5,900 kg against 5,500 kg for the TMV 850QII, with no change to the listed dynamics.
03
The spindle block, headed SPINDLES (FANUC), lists power of 7.5-11/12-18.5 kW and torque of 17.9-95.5/35.8-153 Nm as S1/S6-60% ranges. The tool holder is BBT40. Anger notes that different spindle options are available for the series, so the rating depends on the spindle ordered.
04
Anger calls the TMV series automation-ready with an optional 4th or 5th axis and a fast ATC system, and the axes row of the table reads 3 (4,5). The datasheet does not list a pallet changer or robot interface for this model, so discuss the automation scope directly.
05
5,900 kg (13,007 lb), with dimensions of 2,500/3,000/2,810 mm (L/W/H). Connected power is 30 kVA at 3x380 V, or 3x220 V with the Fanuc control.
