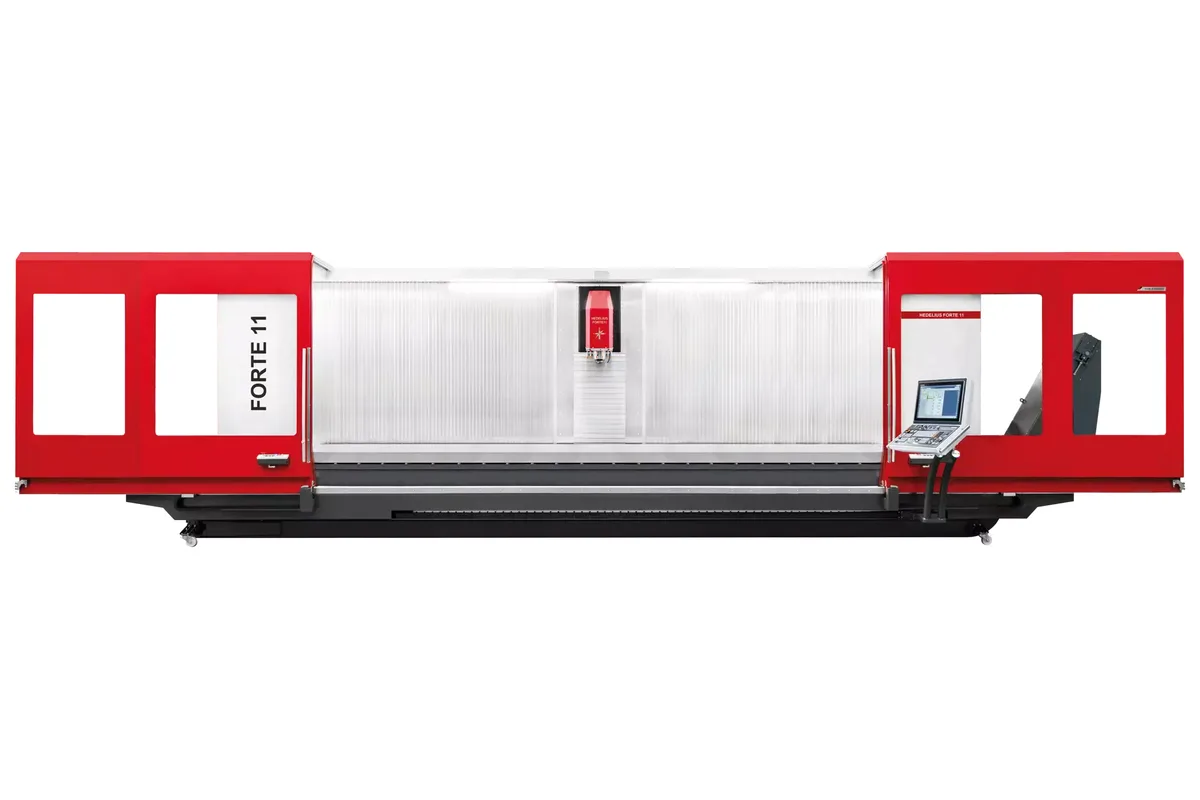

Hedelius FORTE 11-6200
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius FORTE 11-6200 cost?
Price estimate
We do not have a price for the Hedelius FORTE 11-6200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius FORTE 11-6200 offers the largest table surface of any FORTE: 6,680 x 1,100 mm, fixed, rated for 7,000 kg (15,432 lb). The travelling column of this 3-axis machining centre covers 6,200 mm (244.1 in) in X, 1,100 mm in Y and 1,005 mm in Z. Hedelius heads the page "for maximum requirements".
On a machine like this, the daily questions are about reach, not about cutting. Can the operator get to a fixture in the middle of the bed? Hedelius speaks of excellent accessibility with convenient access to the entire working range, and fits motor-activated automatic doors. Where do the chips go? Vertical slat covers form the housing and let them fall away. How long does a tool change take at the far end? The 65-position magazine travels with the column, so the answer is the same ca. 13 s chip to chip as anywhere else.
Used as two machines, the table splits into pendulum areas of 2,825 x 2,825 mm. Used as one, it takes parts over six metres long with 1,100 mm of width in a single clamping, on nine 18 mm T-slots.
The spindle is a liquid-cooled motor spindle with up to 50 kW. The data sheet lists four: 22 kW and 117 Nm or 37 kW and 185 Nm at 14,000 rpm in SK40 / BT40, and 35 kW at 18,000 rpm or 50 kW with 217 Nm at 15,000 rpm in HSK A63. Feed force is 27,000 N. Machine weight is 31,500 kg (69,444 lb), and the transport width is 4,230 / 3,940 mm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,200 mm (244.1 in) |
| Y Axis Travel | 1,100 mm (43.3 in) |
| Z Axis Travel | 1,005 mm (39.6 in) |
| Pendulum Operation | 2,825 x 2,825 mm (111.2 x 111.2 in) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 185 Nm (136 lb-ft), 37 kW (49.6 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 4 | HSK A63, 15,000 min-1, 217 Nm (160 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 600 cm3/min, drilling Ø 50 mm (Ø 2.0 in), thread cutting M 27 |
| Spindle Distance | 15 - 1,020 mm (0.6 - 40.2 in) |
| Table Size | 6,680 x 1,100 mm (263.0 x 43.3 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 9, distance 125 mm (4.9 in) |
| Max Table Load | 7,000 kg (15,432 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 27,000 N (6,070 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 65 / 135 / 180 / 245 / 329 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 / 390 mm (13.0 / 15.4 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 13 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 31,500 kg (69,444 lb) |
| Transport Height | 3,100 mm (122.0 in) |
| Transport Width | 4,230 / 3,940 mm (166.5 / 155.1 in) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- 6,680 x 1,100 mm fixed table for 7,000 kg (15,432 lb)
- 6,200 mm of X travel combined with 1,100 mm of Y
- Travelling 65-position magazine: tool changes stay short over the whole travel path
- Motor-activated automatic doors and access to the entire working range
- Pendulum areas of 2,825 x 2,825 mm
Limitations
- 31,500 kg (69,444 lb): foundation, crane and route have to be planned
- 40-size tooling with a 5 kg tool weight limit on a machine of this size
- Top spindle torque is 217 Nm
- Positioning accuracy of A=6 µm is stated per 1,000 mm of travel
Best For
Frequently Asked Questions
01
Travels are 6,200 mm in X, 1,100 mm in Y and 1,005 mm in Z. The fixed table's clamping area is 6,680 x 1,100 mm with nine 18 mm T-slots at 125 mm spacing, and the table load is 7,000 kg (15,432 lb).
02
ca. 13 s chip to chip for a pre-selected follow-on tool. Hedelius states that the travelling 65-position tool magazine keeps tool changes within a very short time even with this large travel path, since the magazine moves with the column.
03
Up to 50 kW. The data sheet lists SK40 / BT40 spindles at 14,000 rpm with 22 kW or 37 kW, and HSK A63 spindles at 18,000 rpm with 35 kW or at 15,000 rpm with 217 Nm and 50 kW. SK40 is the standard mount.
04
A standard weight of 31,500 kg (69,444 lb), a delivery/transport height of 3,100 mm and a width of 4,230 / 3,940 mm. The chip conveyor is offered in right-hand or left-hand design, and the automatic doors need clear space along the front.
