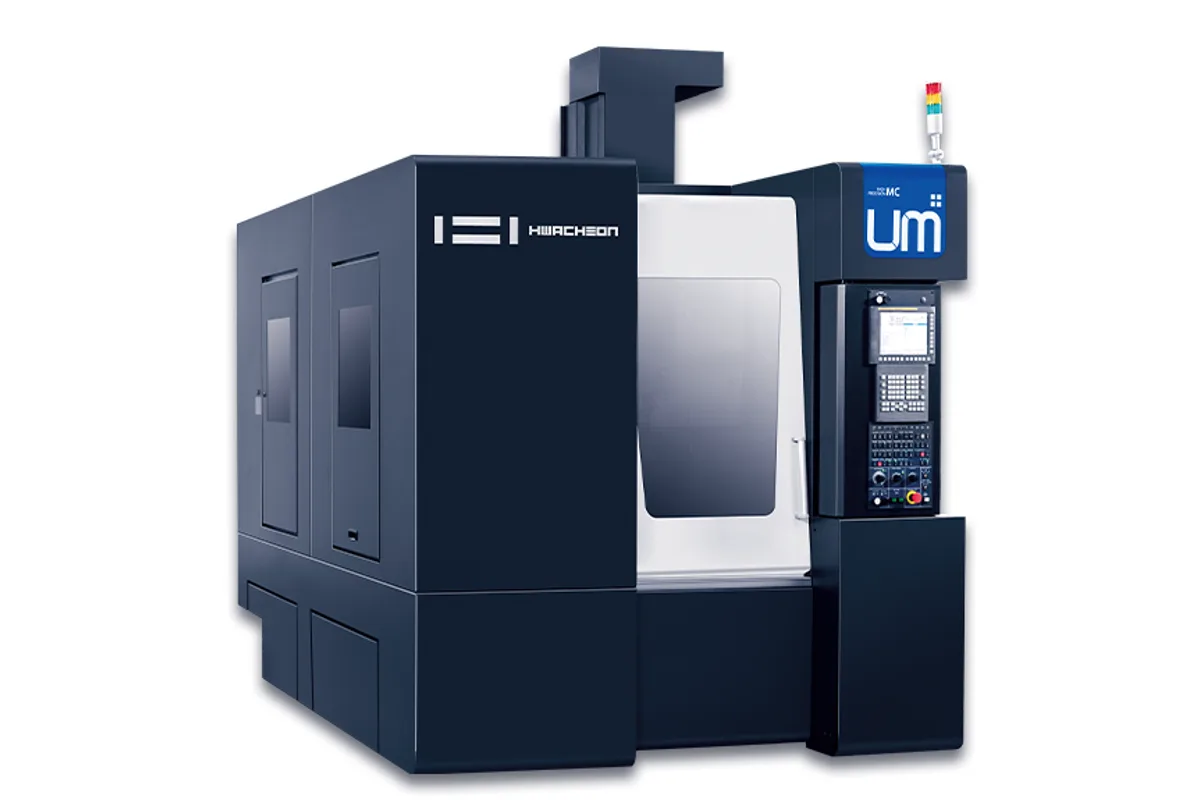

Hwacheon SIRIUS-UM+

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

20,000 rpm (BBT-40) / 32,000 rpm (HSK-E40)

Spindle Taper

20K: ISO#40, 7/24 Taper (BBT-40); 32K: HSK-E40

Tool Capacity

30 (opt.: 40 / 60)

Table Size

850 x 500 mm (33.5 x 19.7 in)

Spindle Power

20K: 18.5 / 11 kW (24.8 / 14.8 hp) or 37 / 18.5 kW (49.6 / 24.8 hp); 32K: 18.5 / 13 kW (24.8 / 17.4 hp)

x axis travel

750 mm (29.5 in)

How much does the Hwacheon SIRIUS-UM+ cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon SIRIUS-UM+ that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon SIRIUS-UM+ is a high-speed vertical machining center with 750 x 500 x 450 mm (29.5 x 19.7 x 17.7 in) of travel, an 850 x 500 mm (33.5 x 19.7 in) table rated 800 kg (1,764 lb) and a choice between a 20,000 rpm BBT-40 spindle and a 32,000 rpm HSK-E40 spindle. That spindle choice decides almost everything else about how the machine is used.

The 20K spindle is a 40-taper unit on a Ø70 mm (Ø2.8 in) bearing, offered in two power ratings: 18.5 / 11 kW (24.8 / 14.8 hp) with air-oil lubrication, or 37 / 18.5 kW (49.6 / 24.8 hp) with oil-jet lubrication. It takes BBT-40 tools as standard, with CAT-40, SK-40 or HSK-A63 as options, and tools up to Ø75 mm (Ø3.0 in) with neighbours fitted or Ø150 mm (Ø5.9 in) without, 300 mm (11.8 in) long and 8 kg (18 lb). This is the version for a shop that wants to rough and finish steel moulds on one machine.

The 32K spindle is a different tool. It runs to 32,000 rpm at 18.5 / 13 kW (24.8 / 17.4 hp) on a Ø45 mm (Ø1.8 in) bearing with oil-jet lubrication, and its HSK-E40 interface limits tools to Ø50 mm (Ø2.0 in), 200 mm (7.9 in) and 1.5 kg (3 lb). Those limits suit small ball and end mills on copper and graphite electrodes and fine mould detail, not heavy stock removal.

Both versions share a built-in motor with an oil-cooled jacket, 24 m/min (945 ipm) rapids, a 30-tool magazine with 40 or 60 as options and memory-random tool selection. The spindle nose reaches 150 to 600 mm (5.9 to 23.6 in) above the table, and five 18 mm T-slots at 100 mm pitch cross it.

The SIRIUS-UL+ is the next size up, with a 1,200 x 600 mm (47.2 x 23.6 in) table and the same 800 kg (1,764 lb) rating at 11,800 kg (26,014 lb). The SIRIUS-UM+ weighs 8,000 kg (17,637 lb), stands 2,950 mm (116.1 in) high on a 2,585 x 3,200 mm (101.8 x 126.0 in) floor space and needs 55 kVA with air at 0.5 to 0.7 MPa x 1,100 NL/min. Its control is a Fanuc 31i-B.

Full Specifications

Parameter	Value
X Axis Travel	750 mm (29.5 in)
Y Axis Travel	500 mm (19.7 in)
Z Axis Travel	450 mm (17.7 in)
Distance Spindle Nose to Table	150 ~ 600 mm (5.9 ~ 23.6 in)
Distance Between Columns	1,090 mm (42.9 in)
Table Size	850 x 500 mm (33.5 x 19.7 in)
Max Table Load	800 kg (1,764 lb)
T-Slots	18 x 100 mm (0.71 x 3.94 in), 5 slots (width x pitch, count)
Max Spindle Speed	20,000 rpm (BBT-40) / 32,000 rpm (HSK-E40)
Spindle Motor Power	20K: 18.5 / 11 kW (24.8 / 14.8 hp) or 37 / 18.5 kW (49.6 / 24.8 hp); 32K: 18.5 / 13 kW (24.8 / 17.4 hp)
Spindle Taper	20K: ISO#40, 7/24 Taper (BBT-40); 32K: HSK-E40
Spindle Bearing Bore	20K: Ø70 mm (Ø2.8 in); 32K: Ø45 mm (Ø1.8 in)
Spindle Drive	Built-in motor
Spindle Bearing Lubrication	20K 18.5 / 11 kW: Air-oil; 20K 37 / 18.5 kW and 32K: Oil-jet
Spindle Cooling	Jacket cooling (oil cooler)
Rapid Traverse Xyz	24 / 24 / 24 m/min (945 / 945 / 945 ipm)
Tool Shank	20K: BBT-40 (opt.: CAT-40 / SK-40 / HSK-A63); 32K: HSK-E40
Pull Stud	MAS P40T-1 (45°) (20K BBT-40)
Tool Capacity	30 (opt.: 40 / 60)
Max Tool Diameter (full magazine)	20K: Ø75 / Ø150 mm (Ø3.0 / Ø5.9 in) (with / without adjacent tools); 32K: Ø50 mm (Ø2.0 in)
Max Tool Length	20K: 300 mm (11.8 in); 32K: 200 mm (7.9 in)
Max Tool Weight	20K: 8 kg (18 lb); 32K: 1.5 kg (3 lb)
Tool Selection	Memory Random
Power Requirement	55 kVA
Air Supply	0.5 ~ 0.7 MPa x 1,100 NL/min
Coolant Tank Capacity	250 L (66 US gal)
Machine Height	2,950 mm (116.1 in)
Floor Space	2,585 x 3,200 mm (101.8 x 126.0 in)
Machine Weight	8,000 kg (17,637 lb)
CNC Control	Fanuc 31i-B

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

32,000 rpm HSK-E40 spindle option for small tools in fine mould and electrode work
20K BBT-40 spindle available at 37 / 18.5 kW (49.6 / 24.8 hp) for heavier cuts
Table rated 800 kg (1,764 lb) on an 850 x 500 mm (33.5 x 19.7 in) table
30-tool magazine with 40 and 60 tool options
20K spindle accepts BBT-40, CAT-40, SK-40 or HSK-A63 shanks

Limitations

On the 32K spindle tools are limited to Ø50 mm (Ø2.0 in), 200 mm (7.9 in) and 1.5 kg (3 lb)
Rapids of 24 m/min (945 ipm) on all three axes
Y travel is 500 mm (19.7 in) and Z travel 450 mm (17.7 in)
Coolant tank holds 250 L (66 US gal)

Best For

Graphite and copper electrodes on the 32,000 rpm spindle Small and mid-size steel moulds on the 20K BBT-40 spindle High-speed finishing with small ball-nose tools Parts up to 800 kg (1,764 lb) within 750 x 500 mm (29.5 x 19.7 in)

Frequently Asked Questions

01 Which spindle should I choose on the SIRIUS-UM+?

The 20K BBT-40 spindle runs to 20,000 rpm at 18.5 / 11 kW (24.8 / 14.8 hp) or, in its stronger version, 37 / 18.5 kW (49.6 / 24.8 hp), and takes tools up to 8 kg (18 lb). The 32K HSK-E40 spindle runs to 32,000 rpm at 18.5 / 13 kW (24.8 / 17.4 hp) but takes tools only up to Ø50 mm (Ø2.0 in) and 1.5 kg (3 lb).

02 What tools fit the SIRIUS-UM+ with the 20K spindle?

BBT-40 as standard, with CAT-40, SK-40 or HSK-A63 as options. Tools may be up to Ø75 mm (Ø3.0 in) with adjacent pockets filled or Ø150 mm (Ø5.9 in) with them empty, 300 mm (11.8 in) long and 8 kg (18 lb). The pull stud is MAS P40T-1 (45°).

03 How does the SIRIUS-UM+ compare with the SIRIUS-UL+?

The SIRIUS-UL+ has a larger 1,200 x 600 mm (47.2 x 23.6 in) table rated 800 kg (1,764 lb), spindles at 12,000, 14,000, 20,000 or 24,000 rpm and weighs 11,800 kg (26,014 lb). The SIRIUS-UM+ is smaller, with an 850 x 500 mm (33.5 x 19.7 in) table, and is the one with the 32,000 rpm option.

04 How many tools does the SIRIUS-UM+ hold?

30 as standard, with 40 or 60 as options. Tools are selected by memory random. A larger magazine matters on mould work, where many small finishing tools and sister tools sit alongside the roughing cutters.

05 What does the SIRIUS-UM+ need for installation?

A floor space of 2,585 x 3,200 mm (101.8 x 126.0 in), 2,950 mm (116.1 in) of height and a floor for 8,000 kg (17,637 lb). It takes 55 kVA and air at 0.5 to 0.7 MPa x 1,100 NL/min. The coolant tank holds 250 L (66 US gal).
