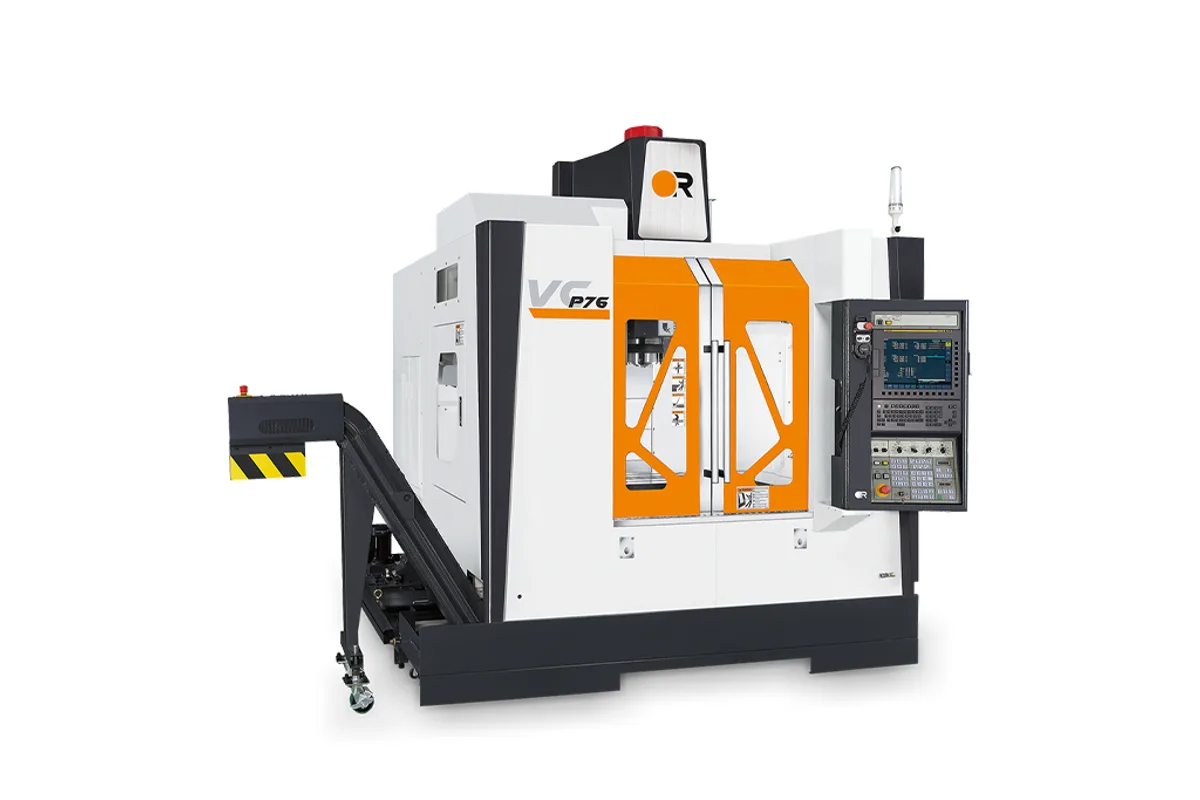

Victor Taichung Vcenter-P76
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-P76 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-P76 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-P76 is a fast 40-taper vertical machining center in the 760 mm class. Travels are 760 mm (29.92 in), 500 mm (19.68 in) and 510 mm (20.07 in); the spindle is a dual-contact BBT-40 unit at 12,000 rpm; the magazine holds 30 tools.
Speed is where it separates from the Vcenter-F76, which has the same travels and table. The maker quotes rapid feeds of 48/48/32 m/min, the spindle turns half as fast again, and the Z axis has an electrical counterbalance. On work with many short moves and tool changes, such as drilled and tapped plates or aluminium housings, those figures set the cycle time.
The spindle power row needs to be read by column. Without coolant through the spindle the motor is listed at 11 / 15 / 18.5 kW (15 / 20 / 25 HP). In the CTS column it is 7.5 / 11 / 15 kW (10 / 15 / 20 HP). A buyer who wants through-tool coolant for deep drilling therefore gets the smaller rating, which matters if the same machine is also expected to rough steel.
The table is 840 x 500 mm (33.07 x 19.68 in) with a 500 kg (1,102.30 lb) limit, and the machine weighs 5,500 kg (12,125.40 lb). A spindle oil cooler and rigid tapping are standard. Options include a 15000 rpm spindle, a 40 tool magazine and the maker's own thermal displacement compensator.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 760 mm (29.92 in) |
| Y Axis Travel | 500 mm (19.68 in) |
| Z Axis Travel | 510 mm (20.07 in) |
| Table Size | 840 x 500 mm (33.07 x 19.68 in) |
| T-Slots | 4 x 18 x 100 mm |
| Max Table Load | 500 kg (1,102.30 lb) |
| Spindle Taper | BBT-40 |
| Spindle Motor Power | Non CTS: 11 / 15 / 18.5 kW (15 / 20 / 25 HP); CTS: 7.5 / 11 / 15 kW (10 / 15 / 20 HP) |
| Max Spindle Speed | 12,000 rpm |
| Tool Capacity | 30 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 5,500 kg (12,125.40 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 12,000 rpm BBT-40 spindle with 11 / 15 / 18.5 kW (15 / 20 / 25 HP) in the Non CTS column
- Rapid feeds of 48/48/32 m/min
- 30-tool magazine, with 40 tools optional
- Electrical counterbalance and roller guideways
- Spindle oil cooler is standard
Limitations
- The CTS column lists a smaller motor: 7.5 / 11 / 15 kW (10 / 15 / 20 HP)
- Table load is 500 kg (1,102.30 lb)
- Z rapid feed is 32 m/min, slower than X and Y
- Tools are limited to 7 kg (15.43 lb)
Best For
Frequently Asked Questions
01
11 / 15 / 18.5 kW (15 / 20 / 25 HP) in the Non CTS column and 7.5 / 11 / 15 kW (10 / 15 / 20 HP) in the CTS column. Both run to 12,000 rpm on a BBT-40 taper.
02
Victor Taichung quotes high rapid feeds of 48/48/32 m/min for this model, on roller guideways. The Z axis carries an electrical counterbalance.
03
30 tools as standard, each up to 7 kg (15.43 lb). A 40 tool magazine is on the P series option list for jobs that need more.
04
The table is 840 x 500 mm (33.07 x 19.68 in) with 4 x 18 x 100 mm T-slots, and the maximum load is 500 kg (1,102.30 lb). Machine weight is 5,500 kg (12,125.40 lb).
