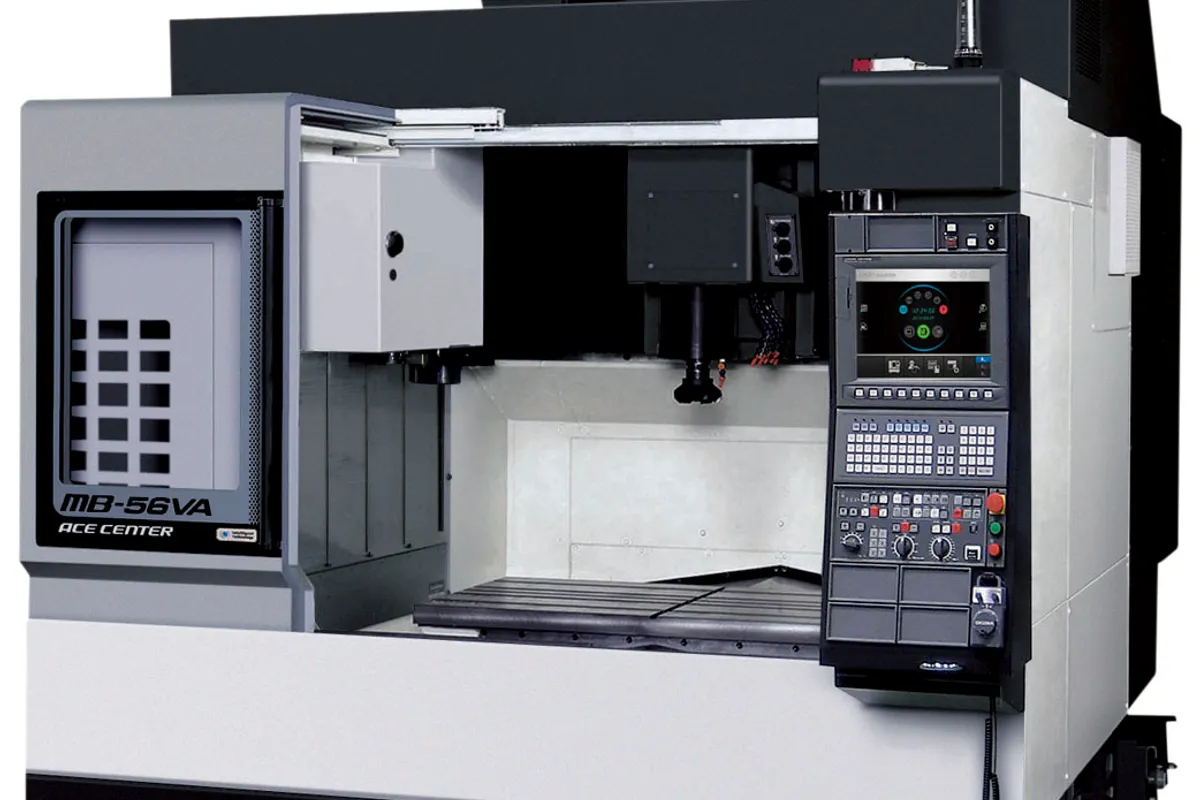

Okuma MB-56V
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Okuma MB-56V is the mid-range model in Okuma's premium MB-V box-way vertical machining center series, stepping up from the compact MB-46V with significantly more X-axis travel at 1,050 x 560 x 460 mm (41.3 x 22.0 x 18.1 in). It bridges the gap between the compact 46-frame and the large-envelope 66-frame machines.
The spindle platform mirrors the MB-46V II with 8,000 RPM standard and 11/7.5 kW (15/10 hp) through a BT 40 taper. High-speed options extend to 15,000, 20,000, 25,000, and 35,000 RPM, making the MB-56V configurable for anything from heavy steel roughing to high-speed graphite electrode machining. The optional 22/18.5 kW (30/25 hp) motor provides more torque for aggressive cuts in hard materials.
Hand-scraped box ways on all three axes are the MB-56V's signature feature. At this size, the box-way advantage becomes more pronounced because larger workpieces generate more cutting forces and more vibration. The MB-56V's heavier casting and wider way surfaces provide proportionally better damping than the compact 46-frame machines.
The 1,300 x 560 mm (51.2 x 22.0 in) table with a 20-tool ATC (expandable to 32, 48, or 98) handles medium-to-large workpieces. The table load capacity of 800 kg (1,764 lb) accommodates substantial fixtures and multi-part setups. Okuma's Thermo-Friendly Concept and Collision Avoidance System are standard.
The OSP-P300A control handles both conversational and G-code programming. The MB-56V is often configured with automatic pallet changers (APC) for production environments, enabling operators to load parts while the machine cuts.
New MB-56V machines run $130,000-$170,000. The MB-56V represents Okuma's sweet spot for shops that need box-way rigidity with enough travel for mid-sized production work. Direct competitors include the Mazak VCN-530C, Doosan DNM 500, and Hyundai Wia KF5600.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,050 mm (41.3 in) |
| Y-Axis Travel | 560 mm (22.0 in) |
| Z-Axis Travel | 460 mm (18.1 in) |
| Max Spindle Speed | min⁻¹ |
| Spindle Taper | BT 40 |
| Spindle Motor Power | 11/7.5 kW (15/10 hp) standard; 22/18.5 kW (30/25 hp) optional |
| Tool Capacity | 20 (standard); 32, 48, or 98 optional |
| Table Size | 1,300 x 560 |
| Max Table Load | 800 kg (1,764 lb) |
| Rapid Traverse Rate | X-Y: 40 Z: 32 |
| Positioning Accuracy | ±0.004 mm |
| Repeatability | ±0.002 mm |
| Machine Weight | 6,300 kg (13,889 lb) |
| CNC Control | OSP-P300A |
| Guide Type | Box ways (all axes, hand-scraped) |
| Max Machining Volume | 1,050 x 560 x 460 |
| Spindle Motor Power Low Range | 11/7.5 [22/18.5, 30/22, 15/11, 15] |
| Okuma Global Repair Center | Charlotte, North Carolina |
| Inches | Metric |
| Spindle Speed | 50~8,000, [50~15,000, 50~20,000, 50~25,000, 50~35,000] |
| Magazine Capacity | 20 [32, 48] |
Specifications sourced from okuma.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 1,050 mm X-travel with box-way construction is a rare combination, most 40-inch machines use roller guides
- Hand-scraped box ways provide superior vibration damping for heavy roughing in steel and cast iron
- Full range of spindle options from 8K to 35K RPM covers heavy cutting through high-speed finishing
- APC-ready configuration supports unattended production with pallet changing capability
- Thermo-Friendly Concept maintains accuracy from cold start through extended production runs
- 800 kg table load accommodates heavy fixtures and multi-part setups for production work
- Collision Avoidance System standard prevents crashes that could damage box-way surfaces
Limitations
- 460 mm Z-travel is limited compared to some competitors offering 500+ mm in this X-travel class
- Starting at $130K, it commands a significant premium over roller-guide alternatives like the Haas VF-3
- Box-way rapids at 32 m/min add non-cutting time compared to 40+ m/min roller-guide machines
- Standard 20-tool magazine requires upgrade for shops with complex multi-tool programs
- BT 40 taper may limit heavy tool clamping; some applications could benefit from BT 50
Best For
Frequently Asked Questions
01
New MB-56V machines run $130,000-$170,000 depending on configuration. A base machine starts around $130K. High-speed spindles, expanded tool magazines, APC systems, and through-spindle coolant push toward $170K+. Used units from 2014-2019 sell for $70,000-$100,000.
02
Same travel envelope (1,050 x 560 x 460 mm), but fundamentally different construction. The MB-56V uses hand-scraped box ways; the GENOS M660-V uses roller guides. The MB-56V delivers better vibration damping and surface finish in heavy cuts. The GENOS M660-V has faster rapids and lower price ($105-135K vs $130-170K). For mold work and heavy cutting, choose the MB. For high-speed production and aluminum, the GENOS.
03
Yes, the box-way construction excels in hardened materials up to 60 HRC with appropriate tooling and spindle speeds. The vibration damping keeps tools in the cut longer, reducing chatter that can damage expensive CBN inserts. The 8K RPM standard spindle with high-torque motor is well-suited for hard milling.
04
Yes, Okuma offers automatic pallet changer (APC) configurations for the MB-56V. This enables loading and fixturing on one pallet while the machine cuts on another, maximizing spindle utilization. APC-equipped MB-56V machines are popular in production environments running moderate-volume precision parts.
05
The 15,000 RPM option with the 22/18.5 kW motor is the best compromise. It provides enough speed for efficient aluminum cutting while retaining the torque needed for steel roughing. The standard 8K RPM spindle is too slow for aluminum, and the 25K+ options sacrifice torque for speed.
