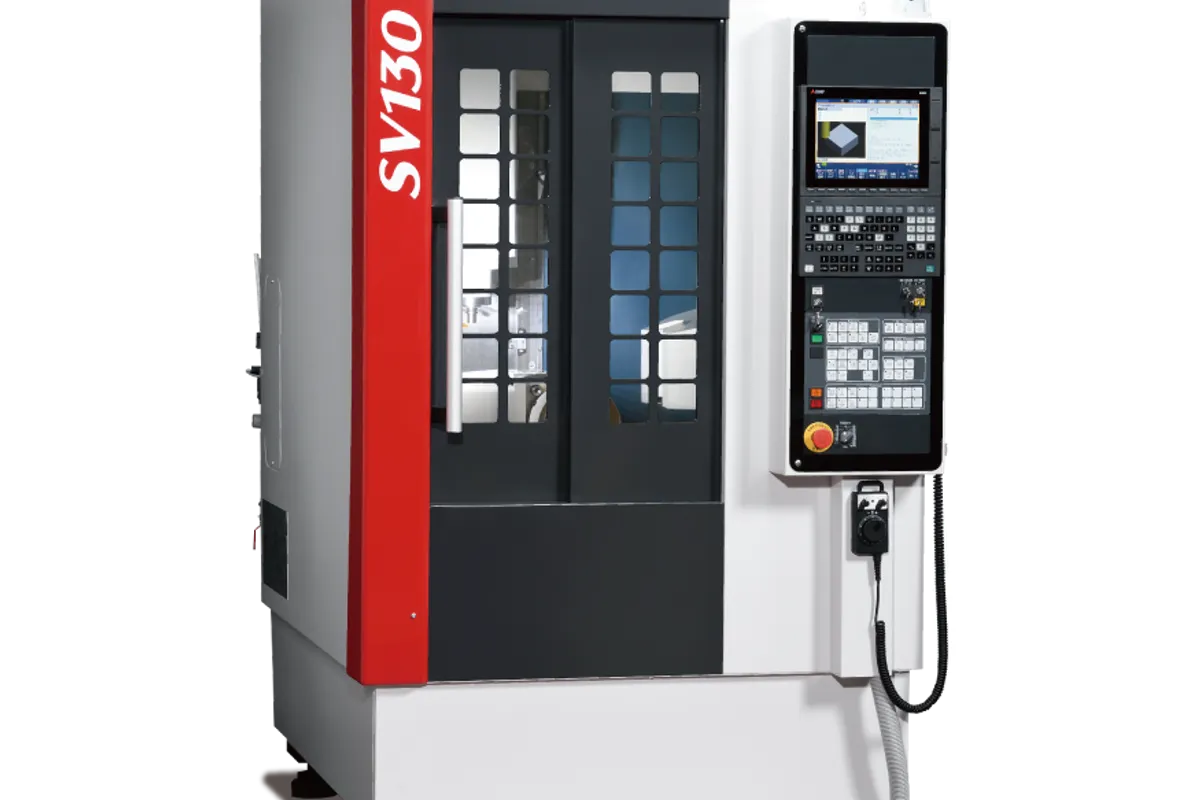

Enshu SV130

Est. $80,000 - $140,000 Specs verified 2026-10-03 · enshu.co.jp Updated 2026-10-03

Image: enshu.co.jp, Enshu

Key Specifications

X Travel

320(ATC stroke+100)

Y Travel

400 mm

Z Travel

250 mm

Max Spindle

20,000 min-1

Tool Capacity

17(OP:21)

Table Size

400 x 300 mm

How much does the Enshu SV130 cost?

Estimated price range

Est.$80,000 - $140,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Enshu. Configuration moves it a long way.

Overview

The Enshu SV130 is a very small vertical machining center: a 400 x 300 mm table, a 110 kg (243 lb) table load, a 20,000 min-1 spindle on a 7/24 taper number 15, and a machine that occupies 1,140 x 2,200 mm of floor at a weight of 1,500 kg.

Everything about it is scaled for small parts made in volume. Travels are 320 mm in X, 400 mm in Y and 250 mm in Z, and the X row adds 100 for the ATC stroke, so the tool change takes place beyond the cutting range. Y travel is longer than X, the reverse of the usual arrangement, and it exceeds the 300 mm table depth. The number 15 taper takes only small tools. Paired with 20,000 min-1 it suits drills, taps and end mills of a few millimetres in aluminium, brass, plastics and similar materials.

Enshu's spindle motor row reads 5.5 (1min), 3.7 (10min) and 1.5 (Cont.) without printing a unit; on the SH350 the same three figures are given in kW. Either way the pattern is a short peak and a much lower continuous rating, which fits cycles made of brief cuts with tool changes between them.

The magazine holds 17 tools, with 21 as an option. Machine height is 1,980 mm. At 1,140 mm on its shorter side the SV130 can be set close to its neighbours in a line, which is the point of a machine this size. The 110 kg (243 lb) table load and 250 mm of Z rule out anything but small fixtures. For comparison, the WE30Ve has a 650 mm x 400 mm (25.6 in x 15.7 in) table and carries 350 kg (771 lbs).

Full Specifications

Parameter	Value
Table Size	400 x 300 mm
X-Axis Travel	320(ATC stroke+100)
Y-Axis Travel	400 mm
Z-Axis Travel	250 mm
Tool Capacity	17(OP:21)
Max Workpiece Weight	110 kg (243 lb)
Machine Height	1,980 mm
Machine Weight	1,500 kg
Maximum Table Loaded	110
Spindle	Spindle speed
Spindle Taper Type	7/24 taper number 15
Floor Space	1,140 x 2,200 mm
Max Table Load	110 kg
Max Spindle Speed	20,000 min-1
Tool Shank	7/24 taper number 15
Spindle Motor	5.5(1min)/3.7(10min)/1.5(Cont.)

Specifications sourced from enshu.co.jp — verified 2026-10-03

Strengths & Limitations

Strengths

20,000 min-1 spindle for small tools in aluminium and other light materials
Floor space of 1,140 x 2,200 mm and a machine weight of 1,500 kg
The X axis has extra ATC stroke beyond its 320 mm of travel, so tool changes happen clear of the work
21-tool magazine available as an option to the standard 17
400 mm of Y travel over a 400 x 300 mm table

Limitations

Table load is limited to 110 kg (243 lb), fixture included
The 7/24 taper number 15 accepts only small, light tools
Z travel is 250 mm, shared between fixture, part and tool length
The spindle motor row falls from 5.5 at 1 min to 1.5 continuous, so sustained heavy cutting is not what it is built for

Best For

Small aluminium and brass parts machined with small tools at 20,000 min-1 High-volume lines where each machine takes 1,140 x 2,200 mm of floor Light fixtures and parts within 110 kg (243 lb) Short drilling, tapping and light milling cycles

Frequently Asked Questions

01 How small is the SV130?

The listed floor space is 1,140 x 2,200 mm, the machine height is 1,980 mm and the machine weight is 1,500 kg. The table is 400 x 300 mm. Leave room beyond the floor space figure for chips, coolant and operator access, which the table does not cover.

02 What are the travels of the SV130?

X is listed as 320 with an ATC stroke of +100, Y is 400 mm and Z is 250 mm. The extra X stroke is for the tool change and should not be counted as cutting range. The table is 400 x 300 mm, so Y travel is greater than the table depth.

03 What tooling does the SV130 use?

The spindle taper is a 7/24 taper, number 15, and the maximum speed is 20,000 min-1. The magazine holds 17 tools, or 21 as an option. A taper this small limits tool diameter, length and weight, none of which the table states, so check those limits against the longest and heaviest tool the job needs.

04 How much can the SV130 table carry?

110 kg (243 lb), fixture included, on a 400 x 300 mm table. For comparison the EV360Te carries 250 kg (551.2 lbs) and the WE30Ve 350 kg (771 lbs), so the SV130 is for small workpieces and light workholding only.

05 How powerful is the SV130 spindle motor?

The spindle motor row reads 5.5 (1min), 3.7 (10min) and 1.5 (Cont.), and no unit is printed in it. The SH350 lists the same three figures in kW. The continuous figure is the one to plan steady cutting around; the higher ones apply only for the stated short periods.
