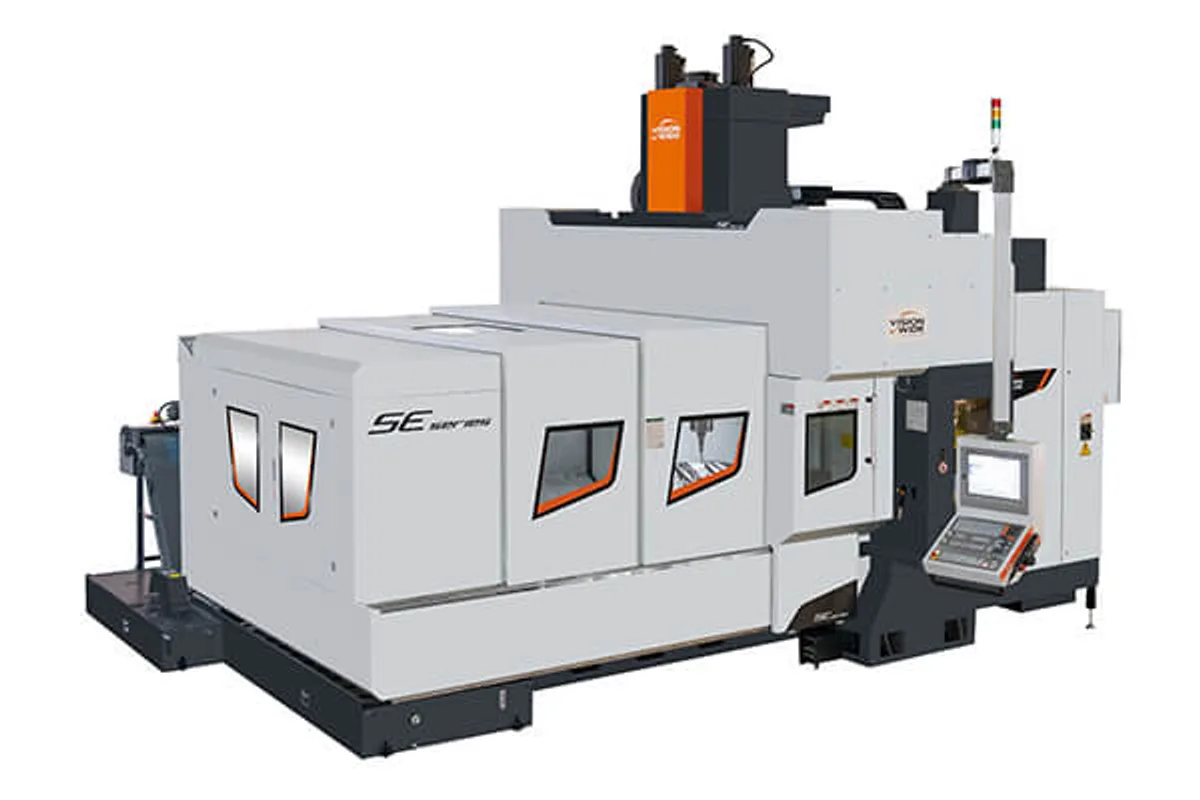

Vision Wide SE-3118
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide SE-3118 cost?
Price estimate
We do not have a price for the Vision Wide SE-3118 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The largest SE is the Vision Wide SE-3118: 3,100 mm (122.0 in) of X travel, 1,800 mm (70.9 in) of Y, and a 3,300x1,600 mm (129.9x63.0 in) table rated for 14,000 kg (30,864 lb). It is the only model in the series with this X travel.
No second width is offered at this length. The series has two cross travels, 1,200 mm and 1,800 mm, up to the 2,600 mm length, as on the SE-2612 and SE-2618, and then a single 1,800 mm machine above them. A part that needs more Y than that is outside the SE range.
Z is the tightest axis. Standard travel is 800 mm, the option is 1,000 mm, and deep molds with long tools use that up quickly. Check the tallest part plus the longest tool against it.
Everything else is the SE formula: 15,000 rpm, 15/ 18.5 kW (20.1/ 24.8 hp), cutting feed to 24,000 mm/min, 24 m/min rapids with 30 m/min optional, and a Fanuc 0iMF PLUS controller. Chips leave by a caterpillar type chip conveyor with water tank, which is standard, and oil mist cooling is an option for dry or near-dry cutting.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 1,800 mm (70.9 in) |
| Z Axis Travel | 800/1,000 mm (31.5/39.4 in) (Opt.) |
| Table Size | 3,300x1,600 mm (129.9x63.0 in) |
| Max Table Load | 14,000 kg (30,864 lb) |
| Spindle Power Cont 30 Min | 15/ 18.5 kW (20.1/ 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24/30 m/min (Opt.) |
| Tool Capacity | 24 pcs (20/32/40 pcs Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,100 mm (122.0 in) of X travel, the longest in the SE series
- 14,000 kg (30,864 lb) table load
- 3,300x1,600 mm (129.9x63.0 in) table
- Caterpillar type chip conveyor with water tank is standard
Limitations
- Only one Y travel, 1,800 mm (70.9 in), is offered at this length
- Z travel is 800 mm, or 1,000 mm as an option
- Spindle power stays at 15/ 18.5 kW (20.1/ 24.8 hp) on the largest table
Best For
Frequently Asked Questions
01
The SE-3118, with 3,100 mm (122.0 in) of X travel, 1,800 mm (70.9 in) of Y and a 3,300x1,600 mm (129.9x63.0 in) table rated for 14,000 kg (30,864 lb).
02
800 mm as standard and 1,000 mm as an option; the row reads 800/1,000 mm (31.5/39.4 in) (Opt.). The table gives no spindle-nose-to-table distance, so confirm clearance for tall molds.
03
Spindle speed is 15,000 rpm and spindle power 15/ 18.5 kW (20.1/ 24.8 hp). The standard unit is a direct driven spindle with a BBT-40 taper; faster built-in spindles and #50 spindles are optional.
04
A cutting fluid cooling system and a caterpillar type chip conveyor with water tank are standard. Coolant through spindle system 20 / 70 bar and an oil mist cooling device are on the option list.
