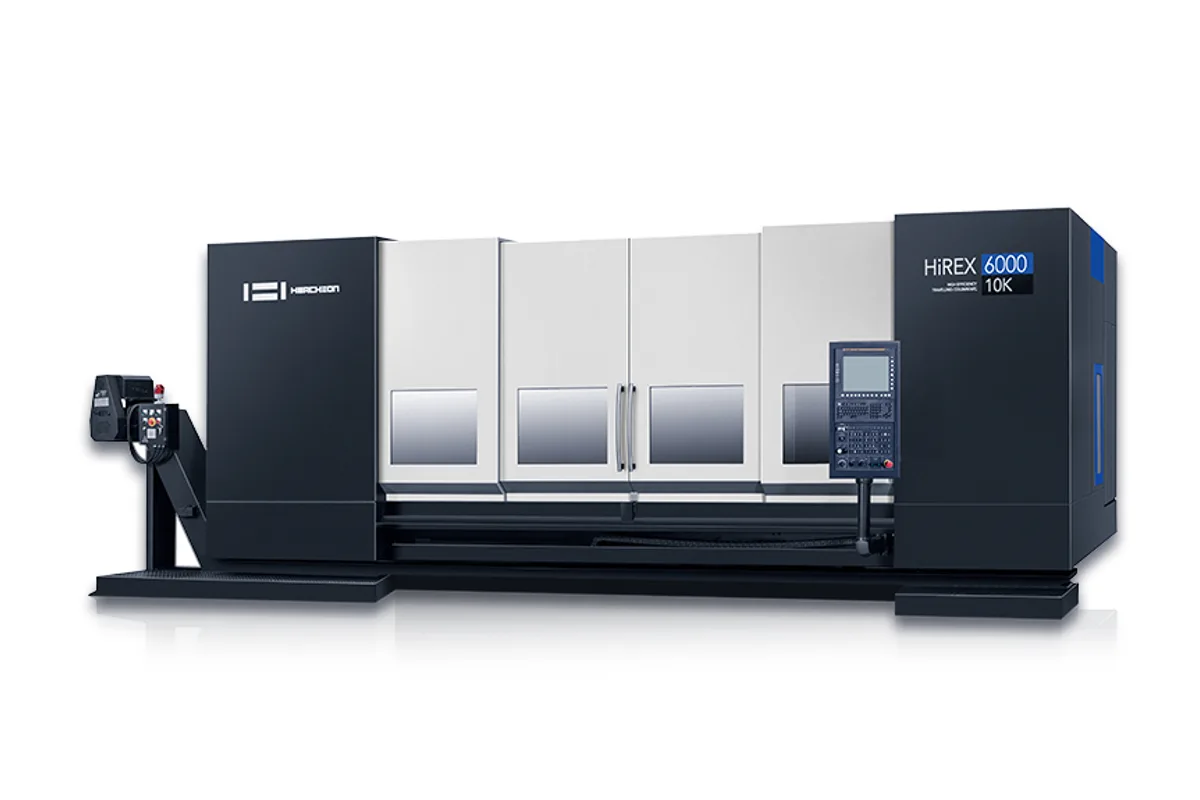

Hwacheon HiREX-6000
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon HiREX-6000 cost?
Price estimate
We do not have a price for the Hwacheon HiREX-6000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon HiREX-6000 is a long-bed vertical machining center with 6,000 mm (236.2 in) of X, 620 mm (24.4 in) of Y and 570 mm (22.4 in) of Z over a 650 x 6,500 mm (25.6 x 255.9 in) table rated at 7,300 kg (16,094 lb). The table has six T-slots, 18 mm wide at 110 mm (4.33 in) pitch, and the spindle centre 760 mm (29.9 in) from the column.
At this length the X axis sets the pace. Rapids are 20 m/min (787 ipm) on X and 30 m/min (1,181 ipm) on Y and Z, so a cycle that walks the spindle from one end of the bed to the other costs real time; group operations by position along X where the part allows it. The payoff is a bed that takes a 6,000 mm part in one setup, or several shorter parts and fixtures loaded in sequence.
The Hwacheon HiREX-5000 is the step down, with 5,000 mm (196.9 in) of X, 520 mm (20.5 in) of Y and a 550 x 5,500 mm (21.7 x 216.5 in) table rated at 5,800 kg (12,787 lb). The 6000 is the one for parts that are both long and wide.
Spindles are the same direct-drive BT-40 pair used across the series, on Ø70 mm (Ø2.8 in) grease-lubricated bearings: 10K at 10,000 rpm with 15 / 11 kW (20.1 / 14.8 hp), 18.5 / 15 kW (24.8 / 20.1 hp) optional, cooled by a fan cooler; or 12K at 12,000 rpm with 18.5 / 15 kW (24.8 / 20.1 hp), cooled by an oil cooler. Through-spindle coolant is optional. The memory-random magazine holds 24 tools, 30 optional, each up to 300 mm (11.8 in), 8 kg (18 lb) and Ø80 / Ø150 mm (Ø3.1 / Ø5.9 in) with or without adjacent tools.
Site needs grow with the bed: 10,030 x 3,175 mm (394.9 x 125.0 in) of floor, a 960 L (254 US gal) coolant tank and 30,000 kg (66,138 lb) of machine. Power is 45 kVA, air 0.5 ~ 0.7 MPa x 690 NL/min, and height 3,000 mm (118.1 in), or 3,250 mm (128.0 in) with through-spindle coolant. Control is Fanuc 0i-MF Plus.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,000 mm (236.2 in) |
| Y Axis Travel | 620 mm (24.4 in) |
| Z Axis Travel | 570 mm (22.4 in) |
| Distance Spindle Nose to Table | 150 ~ 720 mm (5.9 ~ 28.3 in) |
| Distance Column to Spindle Center | 760 mm (29.9 in) |
| Table Size | 650 x 6,500 mm (25.6 x 255.9 in) |
| Max Table Load | 7,300 kg (16,094 lb) |
| T-Slots | 18 x 110 mm (0.71 x 4.33 in), 6 slots (width x pitch, count) |
| Max Spindle Speed | 10,000 / 12,000 rpm (through-spindle coolant opt.) |
| Spindle Motor Power | 10K: 15 / 11 kW (20.1 / 14.8 hp) (opt.: 18.5 / 15 kW (24.8 / 20.1 hp)); 12K: 18.5 / 15 kW (24.8 / 20.1 hp) |
| Spindle Taper | BT-40 |
| Spindle Bearing Bore | Ø70 mm (Ø2.8 in) |
| Spindle Drive | Direct drive |
| Spindle Bearing Lubrication | Grease |
| Spindle Cooling | 10K: Jacket cooling (fan cooler); 12K: Jacket cooling (oil cooler) |
| Rapid Traverse Xyz | 20 / 30 / 30 m/min (787 / 1,181 / 1,181 ipm) |
| Tool Shank | BT-40 (opt.: BBT-40, CAT-40, SK-40) |
| Pull Stud | MAS P40T-1 (45˚) |
| Tool Capacity | 24 (opt.: 30) |
| Max Tool Diameter (full magazine) | Ø80 / Ø150 mm (Ø3.1 / Ø5.9 in) (with / without adjacent tools) |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Tool Selection | Memory Random |
| Power Requirement | 45 kVA |
| Air Supply | 0.5 ~ 0.7 MPa x 690 NL/min |
| Coolant Tank Capacity | 960 L (254 US gal) |
| Machine Height | 3,000 mm (118.1 in) [through-spindle coolant: 3,250 mm (128.0 in)] |
| Floor Space | 10,030 x 3,175 mm (394.9 x 125.0 in) |
| Machine Weight | 30,000 kg (66,138 lb) |
| CNC Control | Fanuc 0i-MF Plus |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 6,000 mm (236.2 in) of X over a 650 x 6,500 mm (25.6 x 255.9 in) table
- 7,300 kg (16,094 lb) table load
- 620 mm (24.4 in) of Y and six T-slots as standard
- Choice of 10,000 or 12,000 rpm direct-drive BT-40 spindles, up to 18.5 / 15 kW (24.8 / 20.1 hp)
- 570 mm (22.4 in) of Z with 150 ~ 720 mm (5.9 ~ 28.3 in) from spindle nose to table
Limitations
- X rapid is 20 m/min (787 ipm), slower than the 30 m/min (1,181 ipm) on Y and Z
- Needs 10,030 x 3,175 mm (394.9 x 125.0 in) of floor and weighs 30,000 kg (66,138 lb)
- Magazine holds 24 tools as standard, 30 as an option
- Tool diameter is limited to Ø80 mm (Ø3.1 in) when adjacent pockets are filled
Best For
Frequently Asked Questions
01
The HiREX-6000 has 6,000 mm (236.2 in) of X, 620 mm (24.4 in) of Y and a 650 x 6,500 mm (25.6 x 255.9 in) table rated at 7,300 kg (16,094 lb). The Hwacheon HiREX-5000 has 5,000 mm (196.9 in) of X, 520 mm (20.5 in) of Y and a 550 x 5,500 mm (21.7 x 216.5 in) table rated at 5,800 kg (12,787 lb). Spindles, magazine and control are the same.
02
Rapid traverse is 20 m/min (787 ipm) on X and 30 m/min (1,181 ipm) on Y and Z. On a 6,000 mm (236.2 in) axis that makes the order of operations matter: finishing all the work at one end before moving on saves the long traverses.
03
A 10K direct-drive BT-40 spindle running to 10,000 rpm with 15 / 11 kW (20.1 / 14.8 hp), or 18.5 / 15 kW (24.8 / 20.1 hp) optional, and a 12K spindle running to 12,000 rpm with 18.5 / 15 kW (24.8 / 20.1 hp). The 10K is fan cooled and the 12K oil cooled. Through-spindle coolant is an option on both.
04
Floor space of 10,030 x 3,175 mm (394.9 x 125.0 in), a 45 kVA supply and 0.5 ~ 0.7 MPa x 690 NL/min of air. The coolant tank holds 960 L (254 US gal), the machine weighs 30,000 kg (66,138 lb) and stands 3,000 mm (118.1 in) high, or 3,250 mm (128.0 in) with through-spindle coolant.
