Vision Wide Vertical Machining Centers (VMC)

Vision Wide NF-3023 / NF-3030

Q: How much does the Vision Wide NF-3023 / NF-3030 cost?

The price estimate for the Vision Wide NF-3023 / NF-3030 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-nf-3023-nf-3030#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

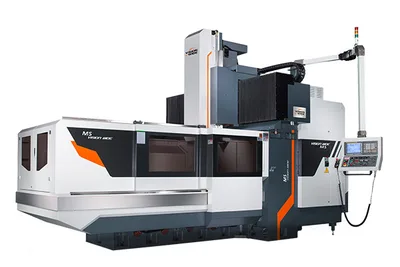

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

3,000×2,050 mm (118.1×80.7 in)

x axis travel

3,100 mm (122.0 in)

y axis travel

2,300/ 3,000 mm (90.6/ 118.1 in)

z axis travel box way single ballscrew

920 / 1,020 mm (36.2 / 40.2 in)(Opt.)

z axis travel linear way enclosed box ram dual ballscrews

1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)

max table load

13,000 kg (28,660 lb)

How much does the Vision Wide NF-3023 / NF-3030 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide NF-3023 / NF-3030 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vision Wide NF-3023 / NF-3030 is the shortest entry in the NF series of bridge-type 5 face machining centers. One column of the maker's table covers both model numbers: X travel is 3,100 mm (122.0 in) for each, and Y travel is printed as 2,300/ 3,000 mm (90.6/ 118.1 in), the first figure for the NF-3023 and the second for the NF-3030.

Five-face work is done with head attachments. Vision Wide lists auto head change for a 90º head, an extension head and a universal head, and a vertical and horizontal auto tool change for the 90º head. The longer Y of the NF-3030 gives those heads room to work down the sides of a part that fills the table.

The table is 3,000×2,050 mm (118.1×80.7 in) and carries 13,000 kg (28,660 lb). This is the fastest NF in traverse, with an X/Y rapid of 24 m/min, and the cutting feed range is 1-10,000 mm/min.

As standard the spindle is a box way 4,000rpm 2-step gear type with 18.5/22 kW (24.8/29.5 hp); the 6,000 rpm gear spindle is an option. Vision Wide states that positioning accuracy could reach ±0.005/300 mm (JIS B6333). The control is a FANUC 0iMF PLUS.

Full Specifications

Parameter	Value
X Axis Travel	3,100 mm (122.0 in)
Y Axis Travel	2,300/ 3,000 mm (90.6/ 118.1 in)
Z Axis Travel Box Way Single Ballscrew	920 / 1,020 mm (36.2 / 40.2 in)(Opt.)
Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews	1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)
Table Size	3,000×2,050 mm (118.1×80.7 in)
Max Table Load	13,000 kg (28,660 lb)
Spindle Power Cont 30 Min	18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.)(30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm(Opt.)
Cutting Feed Rate	1-10,000 mm/min
Rapid Traverse Xy	24 m/min
Rapid Traverse Z Box Way or Linear Way	15 m/min
Rapid Traverse Z Enclosed Box Ram	12 m/min
Tool Capacity Vertical Tool Change	32 / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Auto head change for 90º head, extension head and universal head, per the maker's feature list
X/Y rapid of 24 m/min, the highest in the NF series
3,000×2,050 mm (118.1×80.7 in) table for 13,000 kg (28,660 lb)
Stated positioning accuracy of ±0.005/300 mm (JIS B6333)

Limitations

Standard spindle speed is 4,000 rpm; 6,000 rpm is optional
Shortest X travel of the series at 3,100 mm (122.0 in)
Floor-standing tool changers are optional in every capacity

Best For

Five-face machining of die blocks and machine parts Heavy cutting with a geared box way spindle Parts up to 13,000 kg (28,660 lb)

Frequently Asked Questions

01 What is the difference between the Vision Wide NF-3023 and NF-3030?

Vision Wide prints them in one column. The only row with two values tied to the pair is Y travel, 2,300/ 3,000 mm (90.6/ 118.1 in), so the NF-3030 is the version with the longer cross travel. All other rows are shared.

02 What makes the NF-3023 a 5-face machine?

The maker's feature list includes auto head change for a 90º head, extension head and universal head, plus vertical and horizontal auto tool change for the 90º head. With those, the top and four sides of a part can be cut in one clamping.

03 What spindle is standard on the NF-3023 / NF-3030?

A box way 4,000rpm 2-step gear type spindle. Spindle power is 18.5/22 kW (24.8/29.5 hp), with 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp) as options. A 10,000 rpm direct-driven spindle is listed as an option.

04 How fast does the NF-3023 traverse?

The X/Y rapid is 24 m/min. Z rapid is 15 m/min with the box way or linear way head and 12 m/min with the enclosed box ram. Cutting feed is 1-10,000 mm/min.
