AXA VPC 50 power

Q: How much does the AXA VPC 50 power cost?

The price estimate for the AXA VPC 50 power is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/axa-vpc-50-power#price; the request is passed to AXA or an authorised dealer.

Specs verified 2026-10-05 · axa-maschinenbau.de Updated 2026-10-05

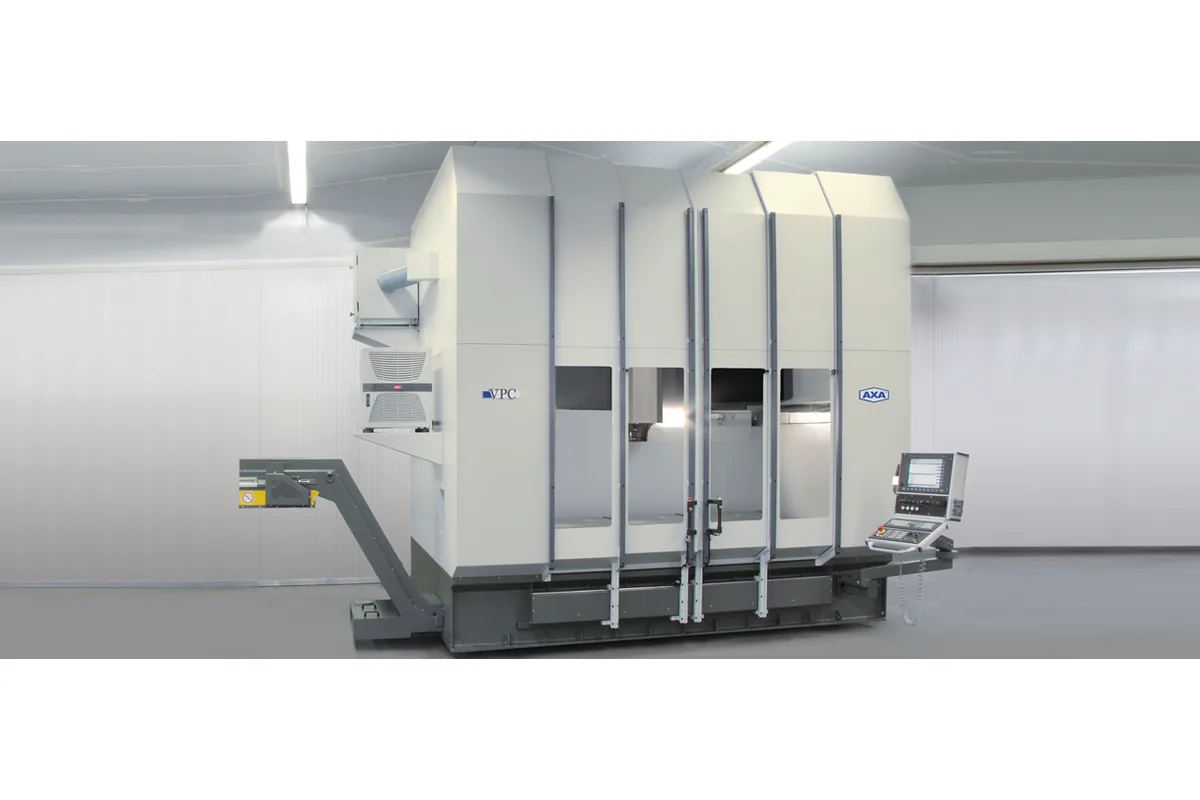

AXA VPC 50 power machining centre (VPC series)

Image: axa-maschinenbau.de, AXA

Key Specifications

Max Spindle

4,000 rpm; optional up to 7,500 rpm (standard drive no. 163)

Spindle Taper

SK 50 (DIN 69871 A / DIN 69872 A); optional HSK A100

Tool Capacity

20; optional expandable up to 60

Spindle Power

56 kW (75.1 hp) max. at 40% DC (standard drive no. 163)

Accuracy

± 0.015 mm per 1,000 mm per axis X/Y/Z

Repeatability

± 0.01 mm

How much does the AXA VPC 50 power cost?

Price estimate

Uncertain

We do not have a price for the AXA VPC 50 power that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

AXA lists the VPC 50 power as a separate column in its VPC data sheet, and nearly every row that differs points the same way: more cutting force. The spindle is drive no. 163 with 540 Nm and 56 kW at 40% DC. Feed force is 12,000 N (2,698 lbf). No alternative drive is offered, and a footnote says drive no. 163 is available only in combination with this model.

The frame is set up to match. The spindle nose comes down to 135 mm above the table, and T-slots are 18 mm wide with 22 mm as an option. Table load is 2,000 kg per table as standard. X travel is a single figure, 2,300 mm (90.6 in), with none of the longer options the other VPC models have. Y is 1,200 mm, optionally 1,400 mm or 1,600 mm, and Z is 500 mm or 600 mm.

Several options of the standard range are missing here. Rapids are 20/20/20 m/min with no faster setting listed. Positioning accuracy is ± 0.015 mm per 1,000 mm and repeating accuracy ± 0.01 mm, again without the finer optional grades. The magazine holds 20 tools and extends only to 60, and the single optional tool holder is HSK A100.

Read together, the figures describe a specialised roughing gantry for heavy plate. If the work is mixed, the VPC 50 with its 286 Nm drive, 90-pocket option and optional 30/30/25 m/min rapids is the more flexible machine.

Full Specifications

Parameter	Value
X Axis Travel	2,300 mm (90.6 in)
Y Axis Travel	1,200 mm (47.2 in); optional 1,400 mm (55.1 in), 1,600 mm (63.0 in)
Z Axis Travel	500 mm (19.7 in); optional 600 mm (23.6 in)
Table Width	1,100 mm (43.3 in); optional 1,350 mm (53.1 in), 1,500 mm (59.1 in) (dependent on Y-stroke)
Table Length	approx. X-traverse
T-Slot Width	18 mm H9; optional 22 mm H9 (reference slot H7)
T Slot Spacing	160 mm (6.3 in)
Max Table Load	2,000 kg (4,409 lb) per table
Distance Spindle Nose to Table	135 mm (5.3 in) minimum
Rapid Traverse Xyz	20/20/20 m/min (787/787/787 ipm) in X/Y/Z
Max Feed Force	12,000 N (2,698 lbf)
Spindle Drive Standard	No. 163 (maker's footnote: in combination with VPC 50 power)
Max Spindle Speed	4,000 rpm; optional up to 7,500 rpm (standard drive no. 163)
Spindle Torque	540 Nm (398.3 lb-ft) max. at 40% DC (standard drive no. 163)
Spindle Motor Power	56 kW (75.1 hp) max. at 40% DC (standard drive no. 163)
Spindle Taper	SK 50 (DIN 69871 A / DIN 69872 A); optional HSK A100
Tool Capacity	20; optional expandable up to 60
Max Tool Diameter (full magazine)	110 mm (4.3 in); 180 mm (7.1 in) with free adjacent pockets
Max Tool Length	400 mm (15.7 in)
Tool Change Time	approx. 7 s
Positioning Accuracy	± 0.015 mm per 1,000 mm per axis X/Y/Z
Repeatability	± 0.01 mm

Specifications sourced from axa-maschinenbau.de — verified 2026-10-05

Strengths & Limitations

Strengths

540 Nm and 56 kW at 40% DC from drive no. 163
Feed force of 12,000 N, against 9,000 N on the VPC 50
2,000 kg per table as standard
Spindle nose reaches down to 135 mm above the table
18 mm T-slots, with 22 mm available as an option

Limitations

X travel is fixed at 2,300 mm with no longer option listed
Rapid traverse is 20/20/20 m/min with no faster option
Magazine expands only to 60 pockets
No optional finer accuracy grades are listed for this model
Spindle speed is 4,000 rpm, or 7,500 rpm as the optional maximum

Best For

Heavy roughing of steel plate with large SK 50 cutters High-torque drilling in thick plate Flat workpieces within 2,300 mm of X and up to 1,600 mm of Y Shops that need a dedicated heavy-cutting gantry beside a faster machine

Frequently Asked Questions

01 What does "power" mean on the VPC 50 power?

It marks the heavy-cutting variant in AXA's VPC table. It is the only VPC model with drive no. 163, which delivers 540 Nm and 56 kW at 40% DC, and it has a feed force of 12,000 N. The speed range is 4,000 rpm, optionally up to 7,500 rpm.

02 What are the travels of the VPC 50 power?

X is 2,300 mm (90.6 in). Y is 1,200 mm (47.2 in), with 1,400 mm or 1,600 mm as optional features. Z is 500 mm (19.7 in), optionally 600 mm. The minimum distance between table and spindle nose is 135 mm.

03 How many tools does it hold, and which holders?

20 pockets as standard, optionally expandable up to 60. The taper is SK 50 to DIN 69871 A / DIN 69872 A, with HSK A100 as the only listed option. Tools can be 110 mm in diameter, or 180 mm with free adjacent pockets, and 400 mm long. Tool change takes approx. 7 s.

04 Is the VPC 50 power less accurate than the other VPC models?

Its standard figures are the same: ± 0.015 mm positioning accuracy per 1,000 mm and ± 0.01 mm repeating accuracy. What is missing are the optional grades. The VPC 50 can be ordered with ± 0.008 mm and ± 0.006 mm; the table shows no such option for the power variant.
