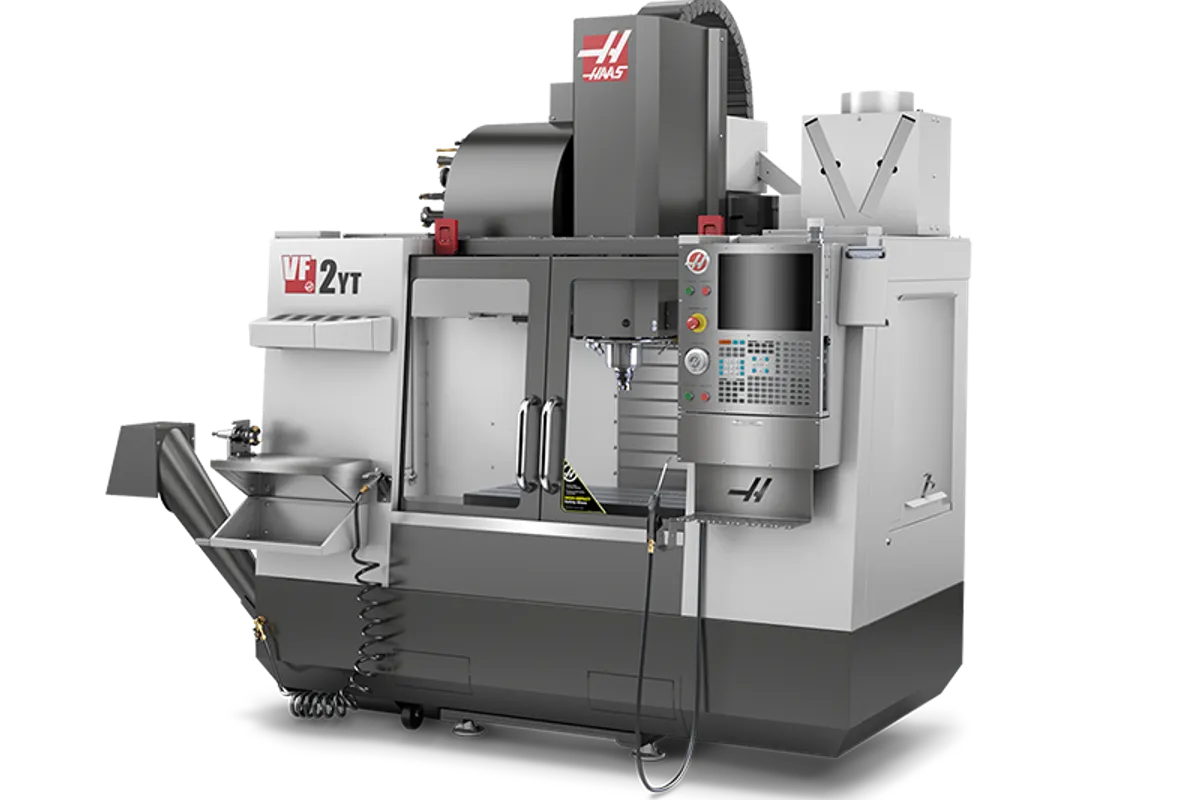

Haas VF-2YT
Image: haascnc.com, Haas Automation
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Haas VF-2YT cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
The Haas VF-2YT is the VF-2 with Y travel extended to 20 in (508 mm) and a wider table to match. Travels are 30 × 20 × 20 in (762 × 508 × 508 mm) and the table is 36 × 18 in (914 × 457 mm), where the VF-2 has 16 in (406 mm) of Y and a 36 × 14 in (914 × 356 mm) table.
Nothing else about the standard machine is traded away for the extra Y, and that is the case for this variant. Table load stays at 3,000 lb (1,361 kg). The spindle is the 8,100 rpm inline direct-drive unit rated 30 hp (22.4 kW) with 90 ft-lbf (122 N·m) at 2,000 rpm. Shipping weight is 7,800 lb (3,539 kg). Compare the VF-2SSYT, which shares these travels and adds a 12,000 rpm spindle and a 30+1 tool changer but is rated for 1,500 lb (680 kg) on the table. For heavy fixtures and rotary setups, the YT is rated for twice the load.
The wider table matters most for plates and for parts that are closer to square than long. A workpiece 18 in deep sits fully on the table and inside the Y stroke, and vises can be arranged front and back as well as side by side. Thrust is 2,550 lbf (11,343 N) on X and Y and 4,200 lbf (18,683 N) on Z, and feedrates are 650 ipm (16.5 m/min) cutting and 1,000 ipm (25.4 m/min) rapid.
On tooling, the base machine has a 20-pocket carousel with 4.2 s tool-to-tool and 4.5 s chip-to-chip times and a 3.5 in (89 mm) maximum tool diameter. The taper is listed as CT or BT 40. Options visible in Haas's table include a gearbox giving 250 ft-lbf (339 N·m) at 450 rpm, a chip conveyor, and 50+1 or 70+1 side-mount tool changers; none of these is part of the base machine. The starting price is US$78,995.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 30 in (762 mm) |
| Y-Axis Travel | 20 in (508 mm) |
| Z-Axis Travel | 20 in (508 mm) |
| Spindle Nose to Table (max) | 24 in (610 mm) |
| Spindle Nose to Table (min) | 4 in (102 mm) |
| Spindle Motor Power | 30 hp (22.4 kW) |
| Max Spindle Speed | 8,100 rpm |
| Spindle Torque | 90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm) |
| Spindle Torque (optional gearbox) | 250 ft-lbf @ 450 rpm (339 N·m @ 450 rpm) |
| Spindle Drive | Inline Direct-Drive |
| Spindle Taper | CT or BT 40 |
| Spindle Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Liquid Cooled |
| Table Size | 36 × 18 in (914 × 457 mm) |
| T-Slot Width | 0.626 in to 0.63 in (15.9 mm to 16 mm) |
| T-Slot Center Distance | 4.92 in (125 mm) |
| T-Slots | 3 |
| Max Table Load | 3,000 lb (1,361 kg) |
| Max Cutting Feedrate | 650 ipm (16.5 m/min) |
| Rapid Traverse Rate | 1,000 ipm (25.4 m/min) |
| Max Thrust X | 2,550 lbf (11,343 N) |
| Max Thrust Y | 2,550 lbf (11,343 N) |
| Max Thrust Z | 4,200 lbf (18,683 N) |
| Tool Changer Type | Carousel |
| Tool Capacity | 20 |
| Max Tool Diameter (full magazine) | 3.5 in (89 mm) |
| Max Tool Weight | 12 lb (5.4 kg) |
| Tool Change (tool-to-tool) | 4.2 s |
| Tool Change (chip-to-chip) | 4.5 s |
| Coolant Capacity | 55 gal (208 L) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 70 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 35 A |
| Shipping Domestic Pallet | 106 × 101.3 × 101 in (269 × 257 × 257 cm) |
| Shipping Export Pallet | 101 × 91.5 × 100 in (257 × 232 × 254 cm) |
| Machine Weight | 7,800 lb (3,539 kg) |
| Shipping Domestic Pallet with Conveyor | 129 × 102 × 105 in (328 × 259 × 265 cm) |
| Shipping Export Pallet with Conveyor | 124 × 92 × 101 in (315 × 232 × 257 cm) |
| Machine Weight with Conveyor | 9,360 lb |
| Shipping Domestic Pallet with 50 plus 1 SMTC | 106 × 101 × 110 in (269 × 257 × 279 cm) |
| Shipping Export Crate with 50 plus 1 SMTC | 109 × 102 × 117 in (276 × 259 × 297 cm) |
| Machine Weight with 50 plus 1 SMTC | 8,100 lb (3,675 kg) |
| Shipping Domestic Pallet with 70 plus 1 SMTC | 106 × 102 × 124.5 in (269 × 259 × 316 cm) |
| Shipping Export Crate with 70 plus 1 SMTC | 108.5 × 102 × 130 in (276 × 259 × 330 cm) |
| Machine Weight with 70 plus 1 SMTC | 9,920 lb (4,500 kg) |
| Shipping Domestic Pallet with Conveyor 70 plus 1 SMTC | 124 × 102.5 × 128 in (315 × 260 × 325 cm) |
| Machine Weight with Conveyor 70 plus 1 SMTC | 9,660 lb (4,382 kg) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 20 in (508 mm) of Y travel and an 18 in (457 mm) wide table, against 16 in (406 mm) and 14 in (356 mm) on the VF-2
- Keeps the full 3,000 lb (1,361 kg) table load; the VF-2SSYT is rated for 1,500 lb (680 kg)
- 30 hp (22.4 kW) spindle with an optional gearbox listed at 250 ft-lbf (339 N·m) at 450 rpm
- Carousel accepts 3.5 in (89 mm) diameter tools in any pocket
- 4,200 lbf (18,683 N) of Z thrust for drilling
Limitations
- 8,100 rpm and 1,000 ipm (25.4 m/min) rapids; the VF-2SSYT offers 12,000 rpm and 1,400 ipm (35.6 m/min)
- The base tool changer holds 20 tools and takes 4.5 s chip-to-chip; the 50+1 and 70+1 side-mount changers are options
- Taper is listed as CT or BT 40 only, while the VF-2 table also lists HSK-A63
- Gearbox and chip conveyor are extra-cost options
Best For
Frequently Asked Questions
01
Only in Y. The VF-2YT has 20 in (508 mm) of Y travel and a 36 × 18 in (914 × 457 mm) table. The VF-2 has 16 in (406 mm) of Y and a 36 × 14 in (914 × 356 mm) table. X at 30 in (762 mm), Z at 20 in (508 mm), the 8,100 rpm spindle, the 20 tools and the 3,000 lb (1,361 kg) table load are the same on the VF-2YT and the VF-2.
02
Both have 30 × 20 × 20 in (762 × 508 × 508 mm) travels and a 36 × 18 in (914 × 457 mm) table. The VF-2SSYT has a 12,000 rpm spindle, 1,400 ipm (35.6 m/min) rapids and a 30+1 tool changer, with a 1,500 lb (680 kg) table load. The VF-2YT has 8,100 rpm, 1,000 ipm (25.4 m/min) rapids and 20 tools, with a 3,000 lb (1,361 kg) table load. Choose by whether speed or carrying capacity matters more for your parts.
03
The base machine has a carousel for 20 tools, with tools up to 3.5 in (89 mm) in diameter and 12 lb (5.4 kg). Haas's shipping table also lists the machine with 50+1 and 70+1 side-mount tool changers, which are optional configurations. With the 50+1 changer the listed weight is 8,100 lb (3,675 kg).
04
The standard spindle gives 90 ft-lbf (122 N·m) at 2,000 rpm, which covers general milling and mid-size drilling. For large drills and taps Haas lists an optional gearbox with 250 ft-lbf (339 N·m) at 450 rpm. Z-axis thrust is 4,200 lbf (18,683 N) in either case.
05
Three-phase power at 220 VAC and 70 A or 440 VAC and 35 A, and air at 4 scfm and 100 psi (113 L/min at 6.9 bar) with an 80 psi (5.5 bar) minimum. The base machine ships at 7,800 lb (3,539 kg) on a domestic pallet of 106 × 101.3 × 101 in (269 × 257 × 257 cm). The coolant tank holds 55 gal (208 L).
Videos
Haas Automation, Inc.
Haas Automation, Inc.
Haas Automation, Inc.
MachineryValues Inc
Community Discussions
Owner experience and review
Options and configuration advice
Pricing and buying discussion
Pricing and buying discussion
Links to community discussions. Summaries are editorial — visit the original thread for full context.
More from Haas Automation
Other Vertical Machining Centers (VMC)
Vision Wide NF-3023 / NF-3030
Fryer TC-40V

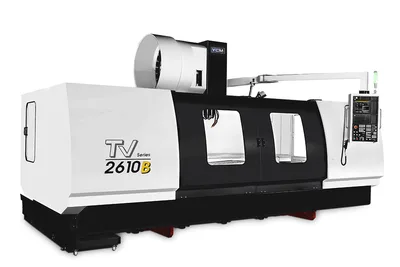

YCM TV2610B

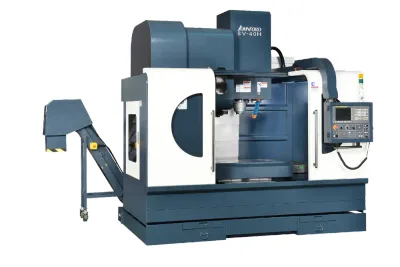

Johnford SV-48H
