Biglia B750M

Q: How much does the Biglia B750M cost?

The price estimate for the Biglia B750M is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/biglia-b750m#price; the request is passed to Biglia or an authorised dealer.

Specs verified 2026-10-05 · bigliaspa.it Updated 2026-10-05

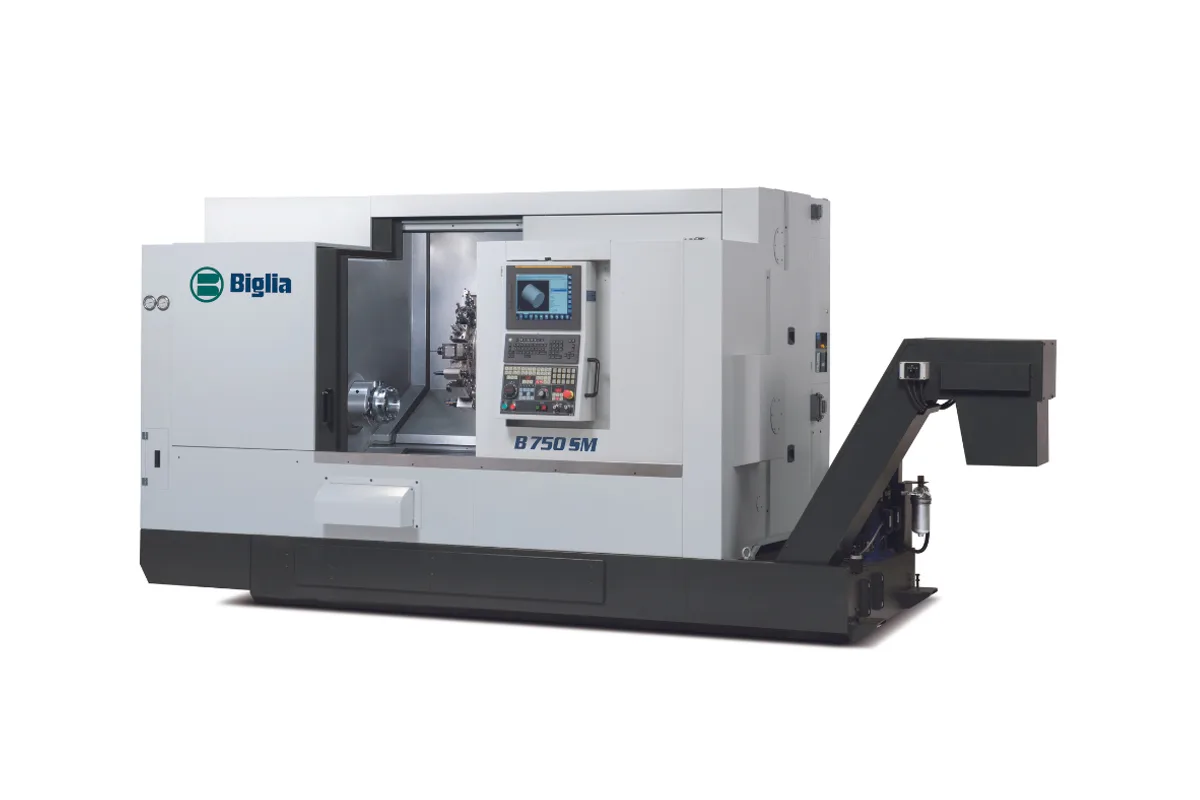

Biglia B750 series CNC turning centre (B750SM shown)

Image: bigliaspa.it, Biglia

Key Specifications

Max Spindle

ASA 6" Ø70: 4,500 rpm; ASA 8" Ø80: 3,200 rpm; ASA 8" Ø93/100: 3,000 rpm

Spindle Power

ASA 6" Ø70: 30-40 kW (40.2-53.6 hp) (S1-S3); ASA 8" Ø80: 15-22 kW (20.1-29.5 hp) (S1-S3); ASA 8" Ø93/100: 30-38 kW (40.2-51.0 hp) (S1-S3)

Max Turn Length

765 mm (30.1 in) with Ø 250 mm chuck

bar capacity

ASA 6" Ø70: 70 mm (2.8 in); ASA 8" Ø80: 80 mm (3.1 in); ASA 8" Ø93/100: 93/100 mm (3.7/3.9 in)

max turning diameter

ASA 6" Ø70: 552/350 mm (21.7/13.8 in); ASA 8" Ø80: 552/450 mm (21.7/17.7 in); ASA 8" Ø93/100: 552 mm (21.7 in)

swing over diameter

680/500 mm (26.8/19.7 in)

How much does the Biglia B750M cost?

Price estimate

Uncertain

We do not have a price for the Biglia B750M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Rotary tools and a C-axis are what the Biglia B750M adds to the B750 turning centre. Every station of the 16 or 12 position servo turret can carry a driven tool, the main spindle indexes as a C-axis with a minimum programmable value of 0.001°, and the CNC tailstock of the base machine stays in place.

Biglia gives the live tooling as 12/15 kW and 35/37 Nm, with a maximum speed of 6,000 / (10,000) rpm. The bracket matters. A footnote in the brochure says standard rotary tools limit the speed to 6000 rpm, so the higher figure needs holders made for it. The drive is a motor built into the tool plate that turns the tool directly, and Biglia calls this the main feature of the turret.

There is no Y-axis on this version. Milling is done with X, Z and C only, which suits cross holes, bolt circles and keyways on the centreline. Features that sit off-centre need the 140 mm of Y travel that the B750Y provides.

The turning side is unchanged. Travels are 305 mm on X and 860 mm on Z, machining length is 765 mm with a Ø 250 mm chuck, and there are three main spindles, from 70 mm bar at 4,500 rpm to 93/100 mm bar with 800-1,014 Nm. The servo tailstock positions over 910 mm, so a shaft can be turned between centres and then cross-drilled in the same clamping. Weight with swarf conveyor is 7,350 kg.

Full Specifications

Parameter	Value
Bar Capacity	ASA 6" Ø70: 70 mm (2.8 in); ASA 8" Ø80: 80 mm (3.1 in); ASA 8" Ø93/100: 93/100 mm (3.7/3.9 in)
Max Turning Diameter	ASA 6" Ø70: 552/350 mm (21.7/13.8 in); ASA 8" Ø80: 552/450 mm (21.7/17.7 in); ASA 8" Ø93/100: 552 mm (21.7 in)
Max Turning Length	765 mm (30.1 in) with Ø 250 mm chuck
Swing Over Diameter	680/500 mm (26.8/19.7 in)
Max Spindle Speed	ASA 6" Ø70: 4,500 rpm; ASA 8" Ø80: 3,200 rpm; ASA 8" Ø93/100: 3,000 rpm
Spindle Nose	ASA 6" (Ø70 bar spindle) / ASA 8" (Ø80 and Ø93/100 bar spindles)
Spindle Bore	ASA 6" Ø70: 77.5 mm (3.1 in); ASA 8" Ø80: 91 mm (3.6 in); ASA 8" Ø93/100: 106/111 mm (4.2/4.4 in)
Spindle Bearing Inside Diameter	ASA 6" Ø70: 110 mm (4.3 in); ASA 8" Ø80: 130 mm (5.1 in); ASA 8" Ø93/100: 150 mm (5.9 in)
Chuck Size	ASA 6" Ø70: 250 mm (9.8 in); ASA 8" Ø80: 315 mm (12.4 in); ASA 8" Ø93/100: 400 mm (15.7 in)
Spindle Motor Power	ASA 6" Ø70: 30-40 kW (40.2-53.6 hp) (S1-S3); ASA 8" Ø80: 15-22 kW (20.1-29.5 hp) (S1-S3); ASA 8" Ø93/100: 30-38 kW (40.2-51.0 hp) (S1-S3)
Spindle Torque	ASA 6" Ø70: 286 Nm (211 lb-ft) (S1-S3); ASA 8" Ø80: 398-700 Nm (294-516 lb-ft) (S1-S3); ASA 8" Ø93/100: 800-1,014 Nm (590-748 lb-ft) (S1-S3)
Turret Stations	16/12
Tool Shank OD Turning	25x25 mm (1.0x1.0 in)
Tool Shank ID Turning	32-40 / 40-50 mm (1.3-1.6 / 1.6-2.0 in)
Turret Indexing Time	0.3 sec (1 position)
Live Tool Stations	16/12
Live Tool Speed	6,000 / (10,000) rpm
Live Tool Power	12/15 kW (16.1/20.1 hp)
Live Tool Torque	35/37 Nm (26/27 lb-ft)
C Axis Min Programmable Value	0.001°
C Axis Rapid Traverse	100 rpm
X Axis Travel	305 mm (12.0 in)
Z Axis Travel	860 mm (33.9 in)
Rapid Traverse X	18 m/min (709 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
B Axis Tailstock Morse Taper	MT 4-5
B Axis Tailstock Positioning Travel	910 mm (35.8 in)
B Axis Tailstock Rapid Traverse	15 m/min (591 ipm)
Coolant Tank Capacity	300 L (79.3 gal)
Coolant Pump Flow	60 L/min (15.9 gpm)
Coolant Pump Motor	1.1 kW (1.5 hp)
Machine Dimensions	528 x 203 x 248 cm (207.9 x 79.9 x 97.6 in), with swarf conveyor (last figure is the height)
Spindle Centre Height	1,065 mm (41.9 in)
Machine Weight	7,350 kg (16,204 lb) with swarf conveyor
CNC Control	FANUC i-HMI

Specifications sourced from bigliaspa.it — verified 2026-10-05

Strengths & Limitations

Strengths

Driven tools at 16 or 12 stations with 12/15 kW and 35/37 Nm available
C-axis on the main spindle with 0.001° minimum programmable value and a 100 rpm rapid
Keeps the B-axis CNC tailstock, with 910 mm of positioning and MT 4-5 centres
Direct drive from a motor in the tool plate to the rotary tool, with no gear train in between according to Biglia
Three spindle choices up to 93/100 mm bar and 30-38 kW

Limitations

No Y-axis, so off-centre milling and true flats across a diameter are outside its range
Standard rotary tools are limited to 6,000 rpm; the 10,000 rpm figure is printed in brackets
No sub-spindle: back-face work means a second setup
Live tool torque of 35/37 Nm is suited to drilling and light milling more than heavy slotting

Best For

Shafts needing cross holes or keyways after turning Flanges with bolt-circle drilling and tapping on the face Long parts that need tailstock support during milling Shops moving simple second-operation milling onto the lathe

Frequently Asked Questions

01 What is the difference between the B750M and the B750?

The B750M has rotary tools and a C-axis; the B750 has neither. Both keep the CNC automatic tailstock, the 305 mm and 860 mm travels and the same three main spindles. Biglia lists the B750M at 7,350 kg and the B750 at 7,250 kg, each with swarf conveyor.

02 How fast can the live tools on the B750M run?

The table prints 6,000 / (10,000) rpm. Biglia's footnote explains the bracket: maximum spindle speed is limited to 6000 rpm by standard rotary tools. Motor power is given as 12/15 kW and maximum torque as 35/37 Nm. Plan cutting data around 6,000 rpm unless higher-speed holders are specified with the machine.

03 Can the B750M mill off-centre features?

Not with a linear axis. This version has X, Z and C but no Y travel. For off-centre work Biglia offers the B750Y, which adds 140 mm of Y travel at a rapid of 7.5 m/min and keeps the tailstock, and the B750YS, which pairs the Y-axis with a second spindle.

04 How many tools does the B750M turret hold?

Biglia lists the servo turret with 16 or 12 stations, printed as 16/12, and the same number of live tool positions. Turning tools use 25x25 mm shanks and boring bars 32-40 / 40-50 mm. Indexing takes 0.3 sec for one position. A comprehensive tooling package is named among the standard features.
