Biglia B1250M

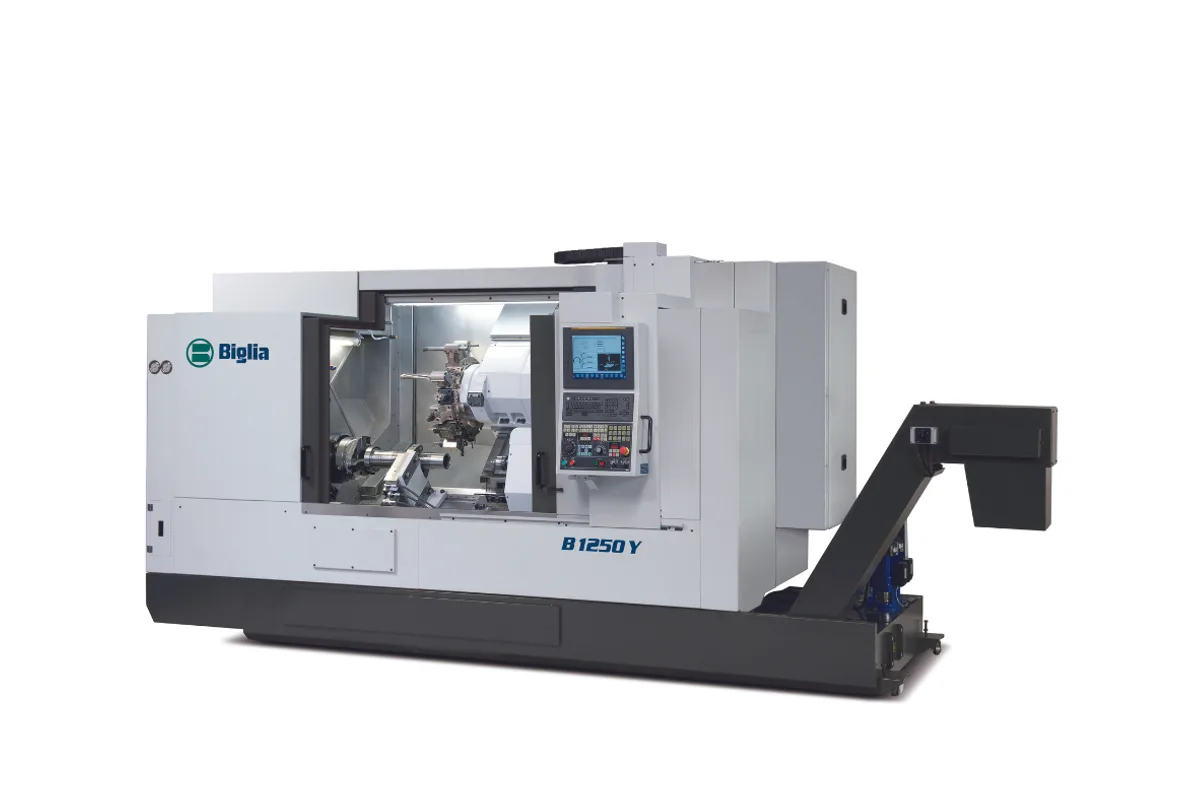

Image: bigliaspa.it, Biglia
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
bar capacity
max turning diameter
swing over diameter
How much does the Biglia B1250M cost?
Price estimate
We do not have a price for the Biglia B1250M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Take the long bed of the B1250, add driven tools and a C-axis, and the result is the Biglia B1250M: a shaft lathe that can also drill and mill on the centreline. It offers 1,310 mm of Z travel, 305 mm of X and a machining length of 1,195 mm with a Ø 315 mm chuck.
Shaft work usually ends with a few features that are not round. A cross hole for a pin, a keyway, a drilled and tapped end face. On a two-axis lathe each of those is a trip to another machine, and a long shaft is awkward to re-fixture. Here the turret does it in place. Its 16 or 12 stations can all be live, driven at 12/15 kW and 35/37 Nm, while the main spindle holds angle as a C-axis with a 0.001° minimum programmable value.
Support for the workpiece is the other half of the argument. The standard tailstock has a 115 mm quill with 150 mm of hydraulic stroke and is brought into position by the turret carriage, and Biglia lists a servo B-axis tailstock with 1,140 mm of positioning as the alternative. An automatic steady-rest for shafts up to 240 mm in diameter is an option on B1250 machines.
Spindle choice is between two ASA 8" units: 93/100 mm bar at 3,000 rpm with 800-1,014 Nm, or the optional 80 mm bar spindle at 3,200 rpm. There is no Y-axis on this version; the B1250Y adds 140 mm of it. Weight with swarf conveyor is 7,950 kg.
Full Specifications
| Parameter | Value |
|---|---|
| Bar Capacity | ASA 8" Ø80 (spindle option): 80 mm (3.1 in); ASA 8" Ø93/100: 93/100 mm (3.7/3.9 in) |
| Max Turning Diameter | ASA 8" Ø80 (spindle option): 552/450 mm (21.7/17.7 in); ASA 8" Ø93/100: 552 mm (21.7 in) |
| Max Turning Length | 1,195 mm (47.0 in) with Ø 315 mm chuck |
| Swing Over Diameter | 680/500 mm (26.8/19.7 in) |
| Max Spindle Speed | ASA 8" Ø80 (spindle option): 3,200 rpm; ASA 8" Ø93/100: 3,000 rpm |
| Spindle Nose | ASA 8" for both main spindle options |
| Spindle Bore | ASA 8" Ø80 (spindle option): 91 mm (3.6 in); ASA 8" Ø93/100: 106/111 mm (4.2/4.4 in) |
| Spindle Bearing Inside Diameter | ASA 8" Ø80 (spindle option): 130 mm (5.1 in); ASA 8" Ø93/100: 150 mm (5.9 in) |
| Chuck Size | ASA 8" Ø80 (spindle option): 315 mm (12.4 in); ASA 8" Ø93/100: 400 mm (15.7 in) |
| Spindle Motor Power | ASA 8" Ø80 (spindle option): 15-22 kW (20.1-29.5 hp) (S1-S3); ASA 8" Ø93/100: 30-38 kW (40.2-51.0 hp) (S1-S3) |
| Spindle Torque | ASA 8" Ø80 (spindle option): 398-700 Nm (294-516 lb-ft) (S1-S3); ASA 8" Ø93/100: 800-1,014 Nm (590-748 lb-ft) (S1-S3) |
| Turret Stations | 16/12 |
| Tool Shank OD Turning | 25x25 mm (1.0x1.0 in) |
| Tool Shank ID Turning | 32-40 / 40-50 mm (1.3-1.6 / 1.6-2.0 in) |
| Turret Indexing Time | 0.3 sec (1 position) |
| Live Tool Stations | 16/12 |
| Live Tool Speed | 6,000 / (10,000) rpm |
| Live Tool Power | 12/15 kW (16.1/20.1 hp) |
| Live Tool Torque | 35/37 Nm (26/27 lb-ft) |
| C Axis Min Programmable Value | 0.001° |
| C Axis Rapid Traverse | 100 rpm |
| X Axis Travel | 305 mm (12.0 in) |
| Z Axis Travel | 1,310 mm (51.6 in) |
| Rapid Traverse X | 18 m/min (709 ipm) |
| Rapid Traverse Z | 24 m/min (945 ipm) |
| Tailstock Quill Stroke | 150 mm (5.9 in) |
| Tailstock Quill Diameter | 115 mm (4.5 in) |
| Tailstock Morse Taper | MT 5 |
| Tailstock Positioning Travel | 1,310 mm (51.6 in) |
| B Axis Tailstock Morse Taper | MT 5/4 |
| B Axis Tailstock Positioning Travel | 1,140 mm (44.9 in) |
| B Axis Tailstock Rapid Traverse | 15 m/min (591 ipm) |
| Coolant Tank Capacity | 300 L (79.3 gal) |
| Coolant Pump Flow | 60 L/min (15.9 gpm) |
| Coolant Pump Motor | 1.1 kW (1.5 hp) |
| Machine Dimensions | 562 x 219 x 249 cm (221.3 x 86.2 x 98.0 in), with swarf conveyor (last figure is the height) |
| Spindle Centre Height | 1,065 mm (41.9 in) |
| Machine Weight | 7,950 kg (17,526 lb) with swarf conveyor |
| CNC Control | FANUC i-HMI |
Specifications sourced from bigliaspa.it — verified 2026-10-05
Strengths & Limitations
Strengths
- Driven tools and C-axis on a bed with 1,310 mm of Z travel
- Live tooling at 16 or 12 stations, rated 12/15 kW and 35/37 Nm
- Hydraulic-quill tailstock (115 mm quill, 150 mm stroke) or optional servo B-axis tailstock
- Up to 800-1,014 Nm at the main spindle for large-diameter shafts
- Steady-rest option for shafts up to 240 mm in diameter
Limitations
- No Y-axis: keyways and holes are limited to the centreline
- Spindle speed tops out at 3,000 or 3,200 rpm depending on the spindle
- Standard rotary tools are limited to 6,000 rpm
- No sub-spindle for work on the chucked end
Best For
Frequently Asked Questions
01
Rotary tools and a C-axis. The brochure lists the B1250M with rotary tools at 12/16 positions, a C-axis and the CNC automatic tailstock. Travels, spindles and tailstock choices are the same as on the B1250. Biglia lists the B1250M at 7,950 kg and the B1250 at 7,850 kg with swarf conveyor.
02
Yes, the B750M, which has the same X travel, turret and live tooling on a bed with 860 mm of Z travel and a 765 mm machining length, and which can also be ordered with an ASA 6" spindle at 4,500 rpm. The B1250M has 1,310 mm of Z travel and is offered with ASA 8" spindles only.
03
The standard tailstock is positioned by the turret-holding carriage along the Z-axis, with 1,310 mm of automatic positioning; its 115 mm hydraulic quill then advances up to 150 mm to hold the part. The optional B-axis tailstock has its own servo motor and ballscrew, so position and thrust are controlled by the CNC independently of the turret.
04
Plan for 6,000 rpm. The table prints 6,000 / (10,000) rpm, and a footnote in the brochure states that maximum spindle speed is limited to 6000 rpm by standard rotary tools. Power is listed as 12/15 kW and torque as 35/37 Nm.
