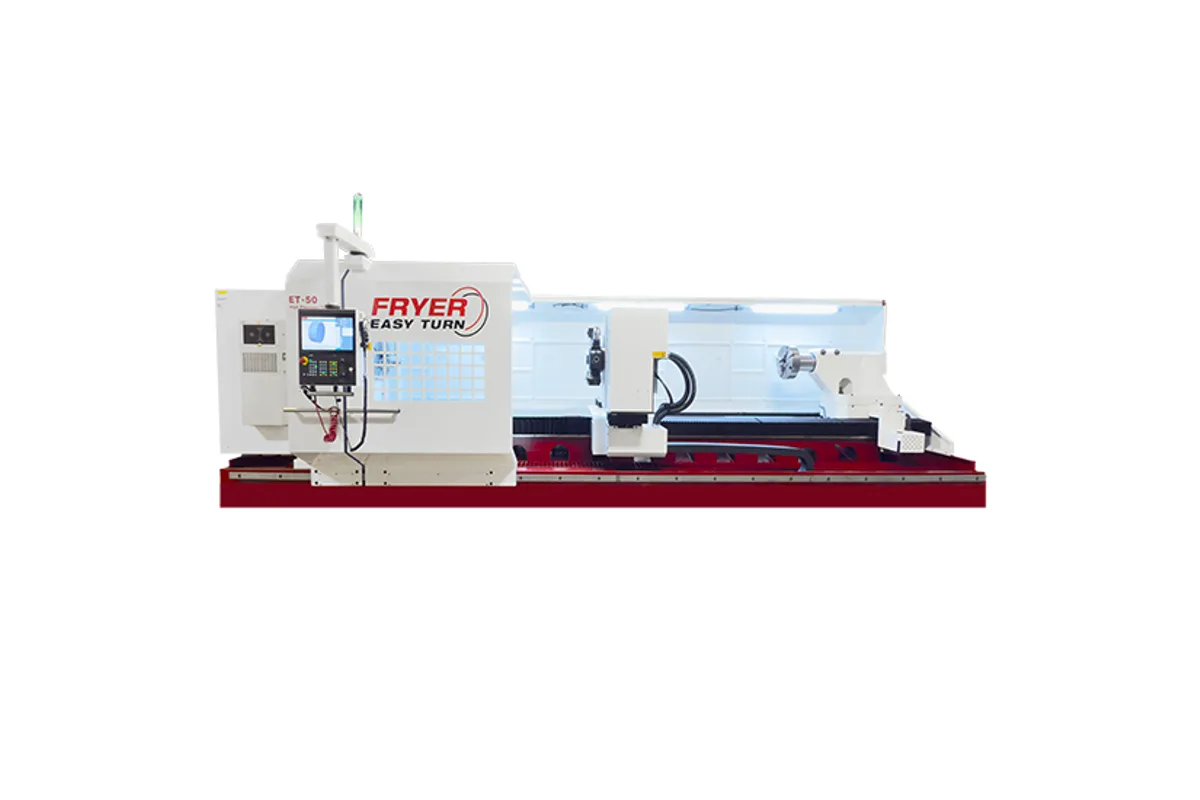

Fryer ET-50
Image: fryermachine.com, Fryer
Key Specifications
Max Spindle
Spindle Power
Accuracy
Repeatability
max swing
swing over cross slide
How much does the Fryer ET-50 cost?
Price estimate
We do not have a price for the Fryer ET-50 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fryer ET-50 opens the ET-XL series of extra large flat-bed CNC lathes. It swings 50 in (1,270 mm) over a bed that is 30 in (762 mm) wide, clears 35 in (889 mm) over the cross slide and, in its shortest form, has 60 in (1,524 mm) between centers. Fryer calls these wide bed heavy duty engine lathes, and the figures back the description: the base machine weighs 26,500 lb (12,020 kg).
Torque defines the headstock. A 50 hp (37.3 kW) peak motor drives a three speed autoshift geared headstock, and Fryer states a peak spindle torque of 19,700 ft-lb (26,710 Nm) at 30 rpm. The three ranges are 3 - 30 rpm, 31 - 150 rpm and 151 - 750 rpm. Those are speeds for large rolls, forgings and castings, where surface speed comes from diameter rather than from rpm.
Part weight is given in two rows. With the tailstock alone the limit is 15,000 lb (6,804 kg); with steady rest and tailstock it is 20,000 lb (9,072 kg). Z thrust peaks at 12,720 lb. The standard spindle bore is 6.10 in (155 mm) on an A2-11 nose, and Fryer lists big bore options up to a 20" bore.
Length is chosen from a long list. Center distances of 80, 120, 160, 200, 240, 280 and 340 in are optional, with a 340” center distance at the top of the options sheet, and the weight climbs to 46,100 lb (20,911 kg) with 280 in centers. Live tool turrets, a Y axis turret and a 'C' axis spindle can be added, so milling and drilling can be done without moving a heavy part to another machine.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing | 50 in (1,270 mm) |
| Swing Over Cross Slide | 35 in (889 mm) |
| Center Height | 25 in (635 mm) |
| Distance Between Centers | 60 in (1,524 mm) |
| Distance Between Centers Optional | 80 in (2,032 mm), 120 in (3,048 mm), 160 in (4,064 mm), 200 in (5,080 mm), 240 in (6,096 mm), 280 in (7,112 mm), 340 in (8,636 mm) |
| Bed Width | 30 in (762 mm) |
| Cross Slide Width | 13.5 in (343 mm) |
| X Axis Travel | 27 in (686 mm) (33 in (838 mm), 40 in (1,016 mm)) |
| Z Axis Travel | 67 in (1,702 mm) |
| Z Axis Travel Optional | 87 in (2,210 mm), 126 in (3,200 mm), 165 in (4,191 mm), 205 in (5,207 mm), 244 in (6,198 mm), 284 in (7,214 mm) |
| Ballscrew Diameter | 3.00 in (76 mm) Z; 1.625 in (41 mm) X |
| Max Part Weight with Tailstock | 15,000 lb (6,804 kg) |
| Max Part Weight Supported | 20,000 lb (9,072 kg) |
| Spindle Nose | A2-11; A2-15, A2-20 or A2-28 with the big bore options |
| Spindle Bore | 6.10 in (155 mm); 9 in (229 mm), 10 in (254 mm), 12 in (305 mm), 16 in (406 mm) or 20 in (508 mm) with the big bore options |
| Spindle Motor Power | 50 hp (37.3 kW) peak |
| Max Spindle Speed | 3 - 750 rpm (600, 375, 300) |
| Spindle Torque | 19,700 ft-lb (26,710 Nm) at 30 rpm |
| Spindle Speed Ranges | Low: 3 - 30 rpm; Medium: 31 - 150 rpm; High: 151 - 750 rpm |
| Speed Selection | Automatic |
| Tailstock Quill Travel | 12.0 in (305 mm), hydraulic motor, 9 ipm (0.23 m/min) |
| Tailstock Quill Diameter | 6.50 in (165 mm) |
| Tailstock Quill Taper | MT-6 |
| Tailstock Quill Spindle Nose | A1-8, includes built-in spindle |
| Tailstock Body Movement | Electric Motor with Rack and Pinion |
| Positioning Accuracy | +/- 0.0002 in (0.0051 mm) |
| Repeatability | +/- 0.0001 in (0.0025 mm) |
| Resolution | +/- 0.00010 in (0.0025 mm) |
| Rapid Traverse Xz | 400 ipm (10.2 m/min) |
| Servo Type | AC Digital Brushless |
| Axis Thrust | 8,894 lb (4,034 kgf) X; 12,720 lb (5,770 kgf) Z |
| Air Requirement | 90 psi (6.2 bar), 5 cfm (142 L/min) |
| Coolant Capacity | 70 gal (265 L) |
| Coolant Flow | 4 gpm (15 L/min) |
| Power Requirement | 125 A |
| Voltage Requirement | 380-500 VAC |
| Shipping Dimensions | 145 in (3,683 mm) wide with 60 in centers, 205 in (5,207 mm) with 120 in, 245 in (6,223 mm) with 160 in, 285 in (7,239 mm) with 200 in, 325 in (8,255 mm) with 240 in; 70 in (1,778 mm) deep; 75 in (1,905 mm) high |
| Machine Dimensions | 145 in (3,683 mm) wide with 60 in centers, 205 in (5,207 mm) with 120 in, 245 in (6,223 mm) with 160 in, 285 in (7,239 mm) with 200 in, 325 in (8,255 mm) with 240 in; 70 in (1,778 mm) deep; 75 in (1,905 mm) high |
| Machine Weight | 26,500 lb (12,020 kg); 28,500 lb (12,928 kg) with 80 in centers; 32,000 lb (14,515 kg) with 120 in centers; 35,500 lb (16,103 kg) with 160 in centers; 39,000 lb (17,690 kg) with 200 in centers; 42,500 lb (19,278 kg) with 240 in centers; 46,100 lb (20,911 kg) with 280 in centers |
Specifications sourced from fryermachine.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Peak spindle torque of 19,700 ft-lb (26,710 Nm) at 30 rpm from a 50 hp (37.3 kW) peak motor
- 30 in (762 mm) wide bed with a center mounted ballscrew
- Part weight up to 20,000 lb (9,072 kg) with steady rest and tailstock
- 6.10 in (155 mm) standard spindle bore, with big bore options to 20"
- Three speed autoshift geared headstock; speed selection is automatic
Limitations
- Maximum spindle speed is 750 rpm
- Requires 125 A at 380-500 VAC; no lower voltage is listed
- Swing of 50 in (1,270 mm) is the smallest in the ET-XL series; the ET-65 swings 65 in (1,651 mm)
- Base weight of 26,500 lb (12,020 kg) calls for a prepared foundation and heavy rigging
Best For
Frequently Asked Questions
01
Fryer's table gives a peak spindle torque of 19,700 ft-lb (26,710 Nm) at 30 rpm. The motor is 50 hp (37.3 kW) peak and the three speed geared headstock shifts automatically between 3 - 30 rpm, 31 - 150 rpm and 151 - 750 rpm. A 75 HP (peak) spindle motor upgrade is on the options sheet.
02
15,000 lb (6,804 kg) with the tailstock and 20,000 lb (9,072 kg) with steady rest and tailstock. The tailstock is hydraulic with a built-in live center, a 6.50 in (165 mm) quill and 12.0 in (305 mm) of quill travel, and its body is moved by an electric motor with rack and pinion.
03
Swing is 50 in (1,270 mm) over the bed and 35 in (889 mm) over the cross slide. The standard center distance is 60 in (1,524 mm) with 67 in (1,702 mm) of Z travel. Optional center distances run from 80 in (2,032 mm) to 340 in (8,636 mm).
04
Fryer names the Fryer / Siemens 828-HS as the standard control, with automated set-up and both conversational and G code programming. It lists thread repair, milling cycles, dual handwheels and a full manual mode. A FANUC 0i TF Plus CNC is on the options sheet.
